HD's House renders and MEP services

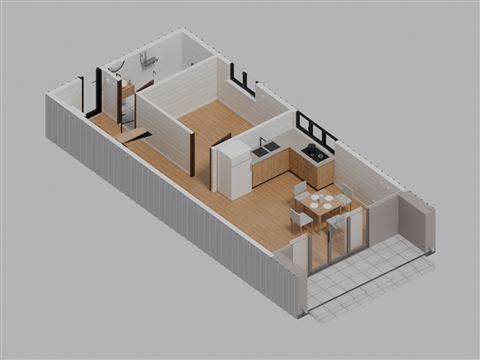

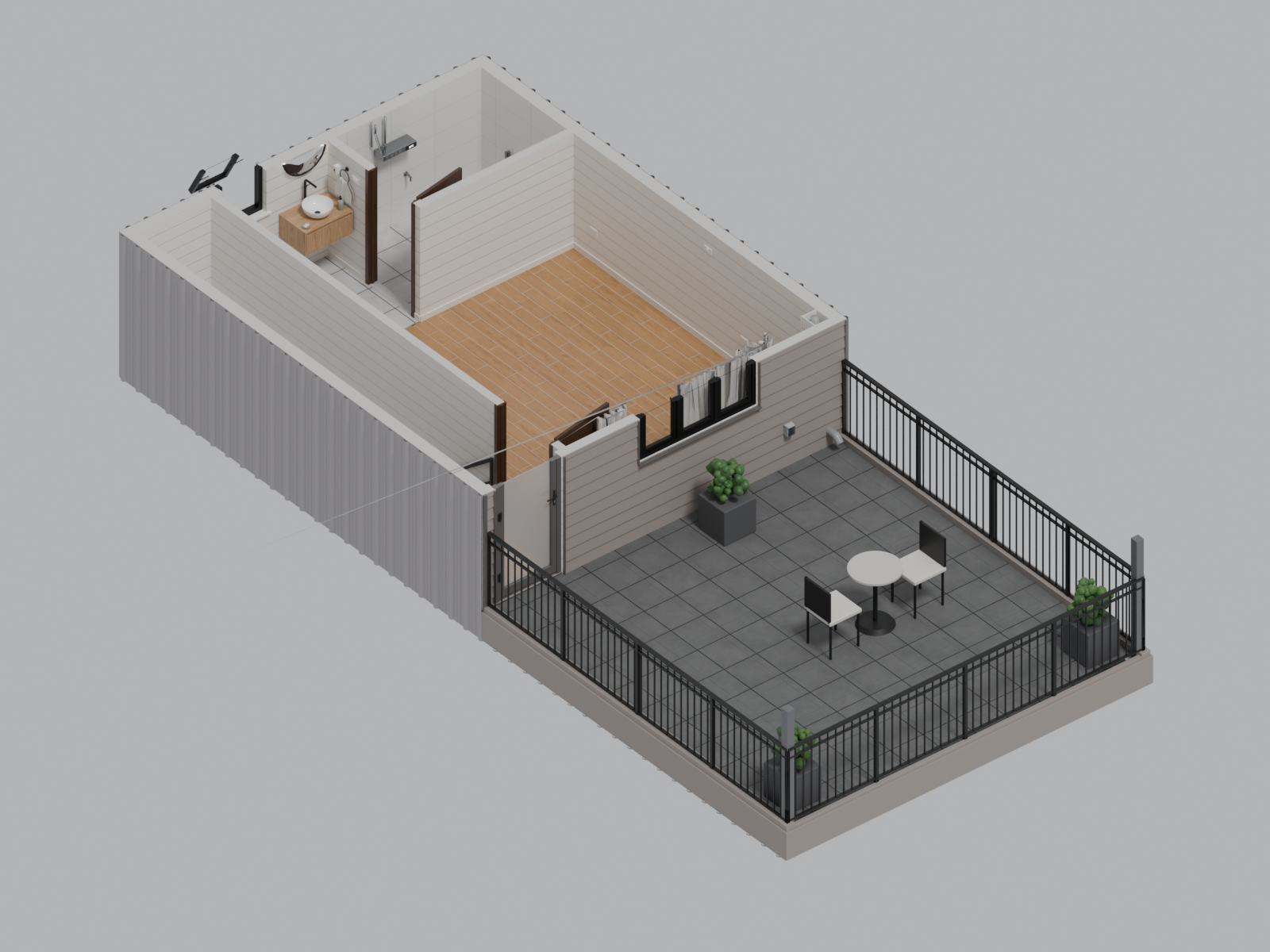

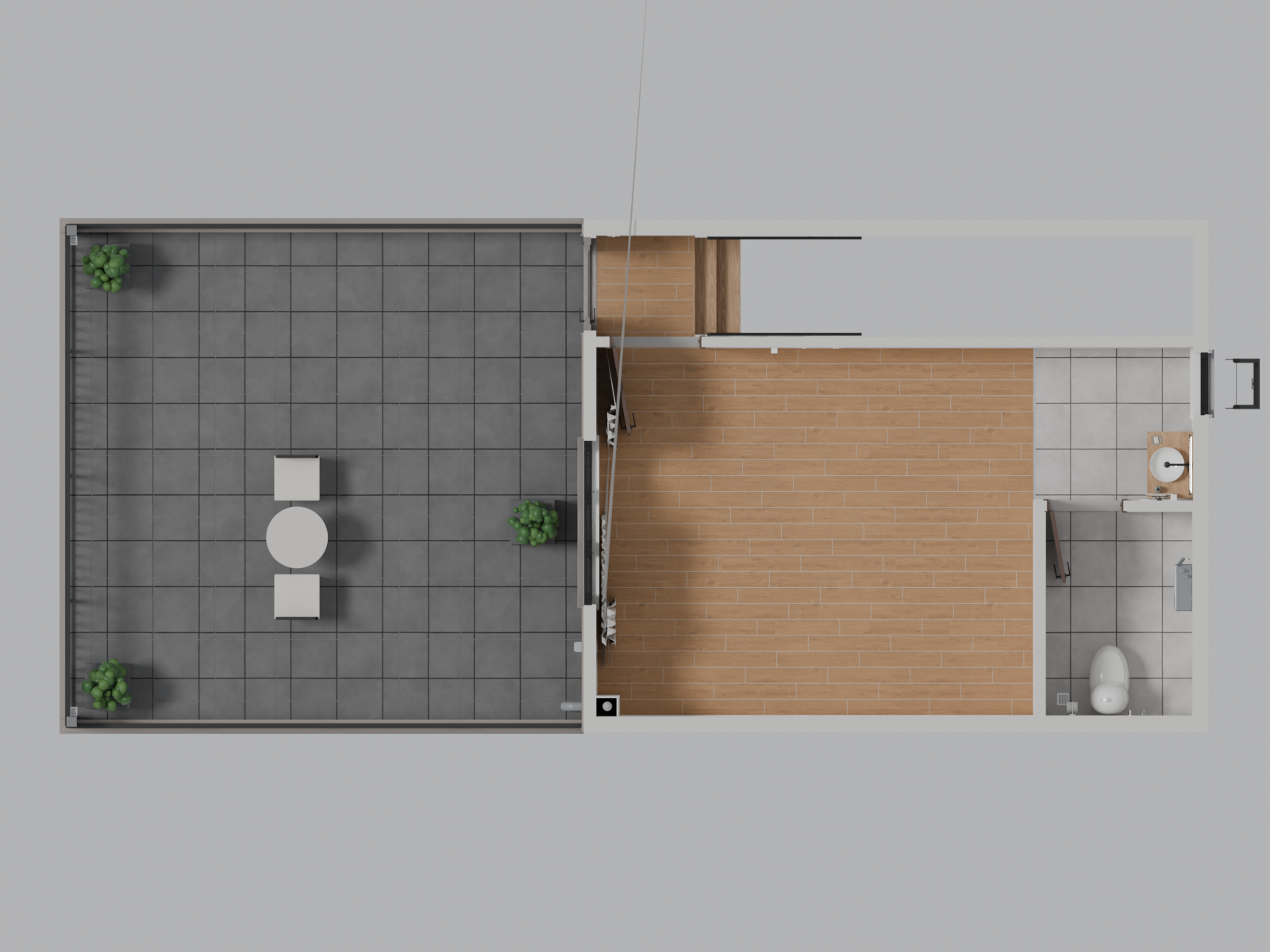

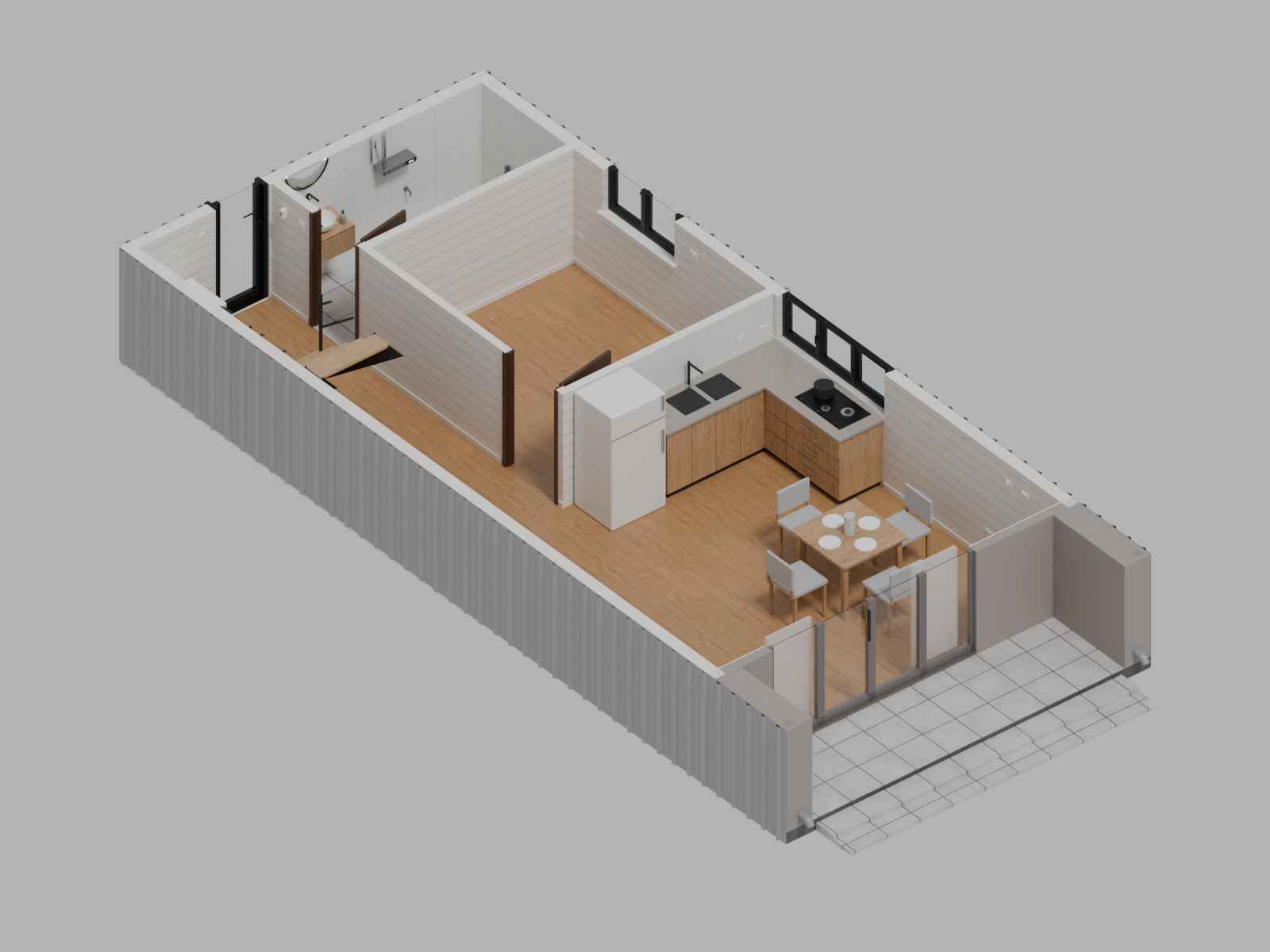

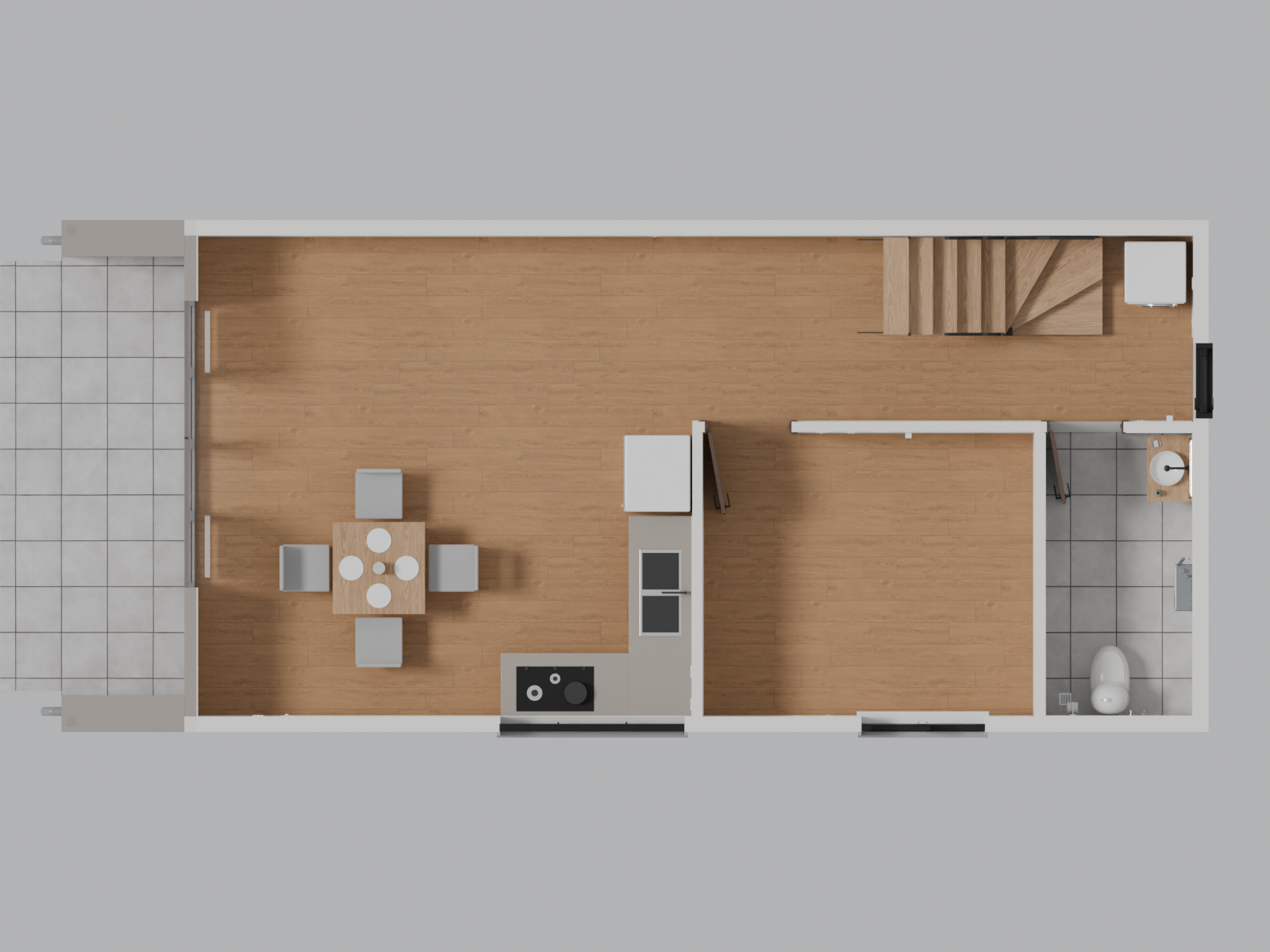

Two-storey steel house with roof terrace: finished views inside and outside, plans, and the concealed water, drainage, rain and electrical services shown area by area. Select an image to view it large, then use the left and right arrow keys to move through the current category.

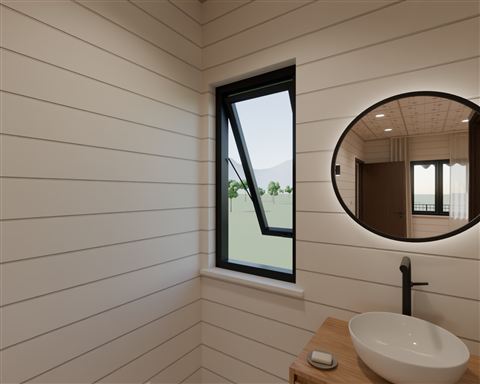

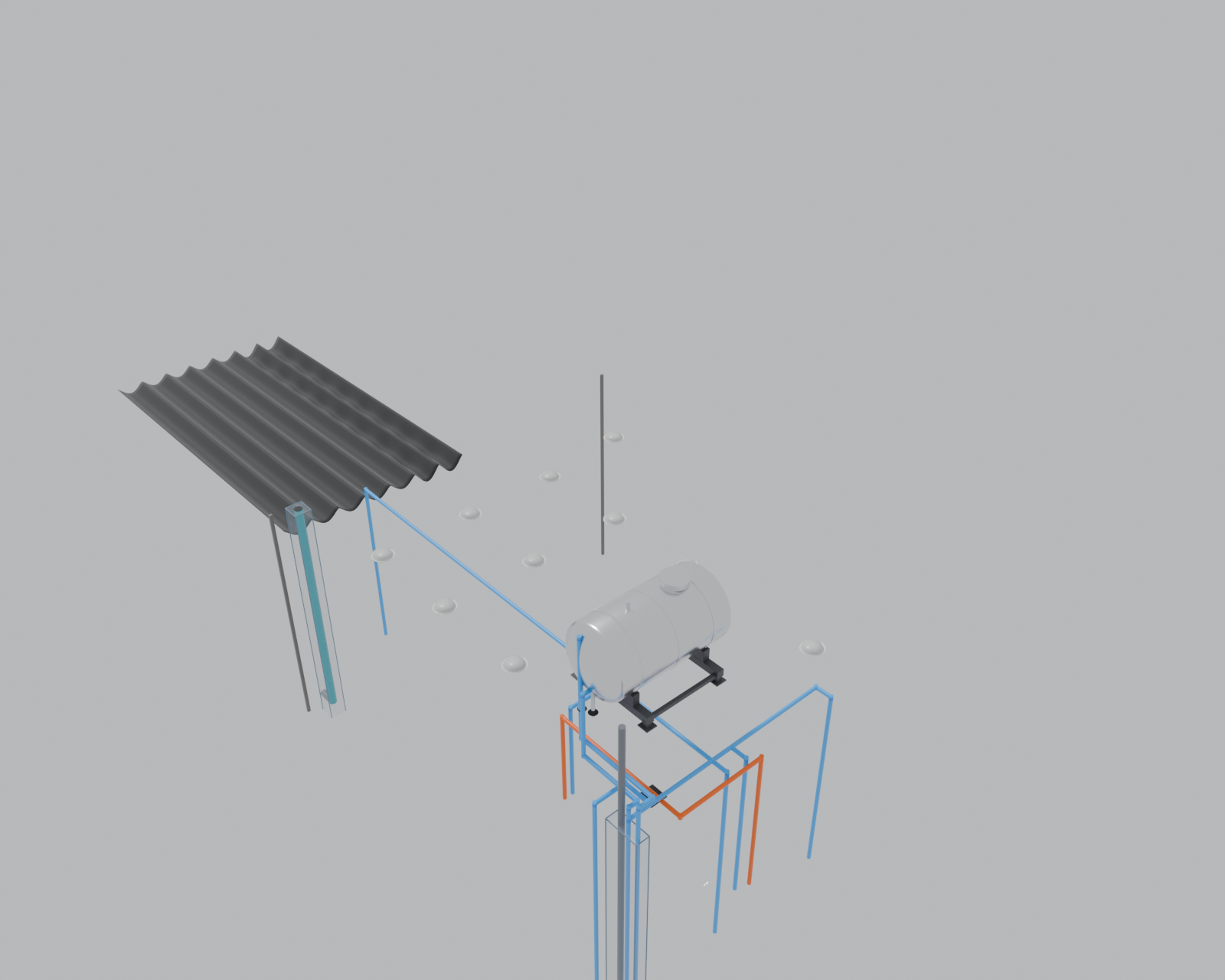

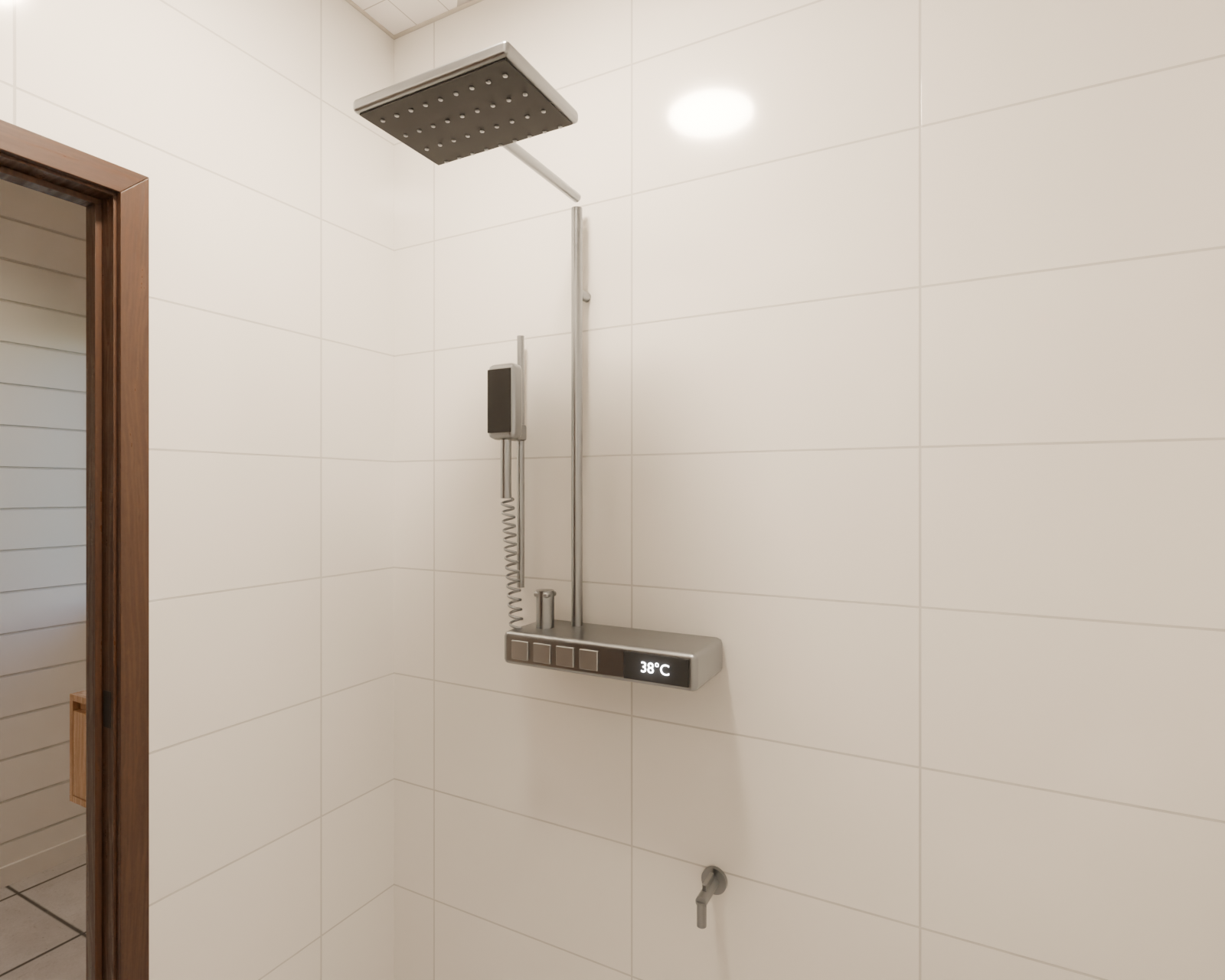

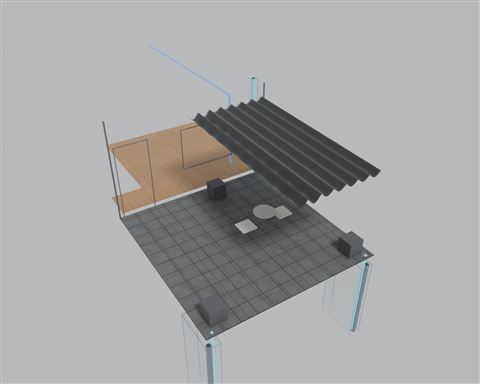

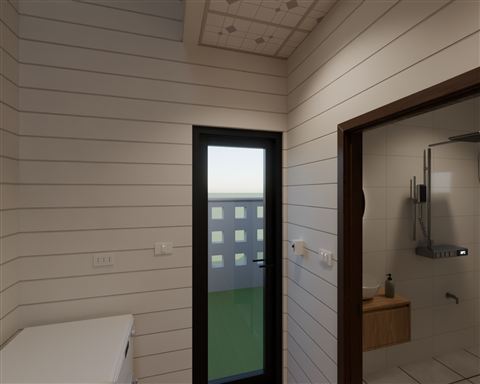

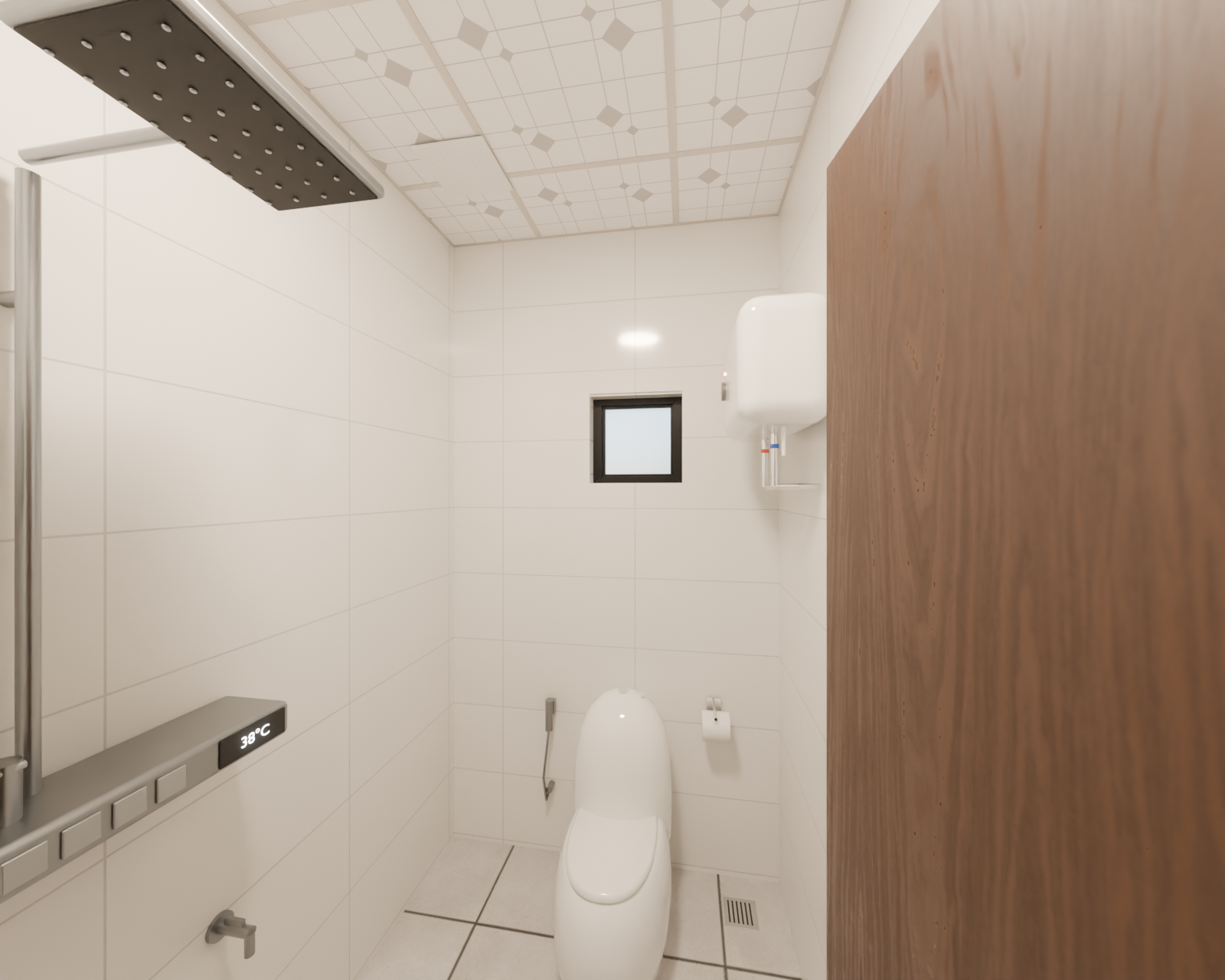

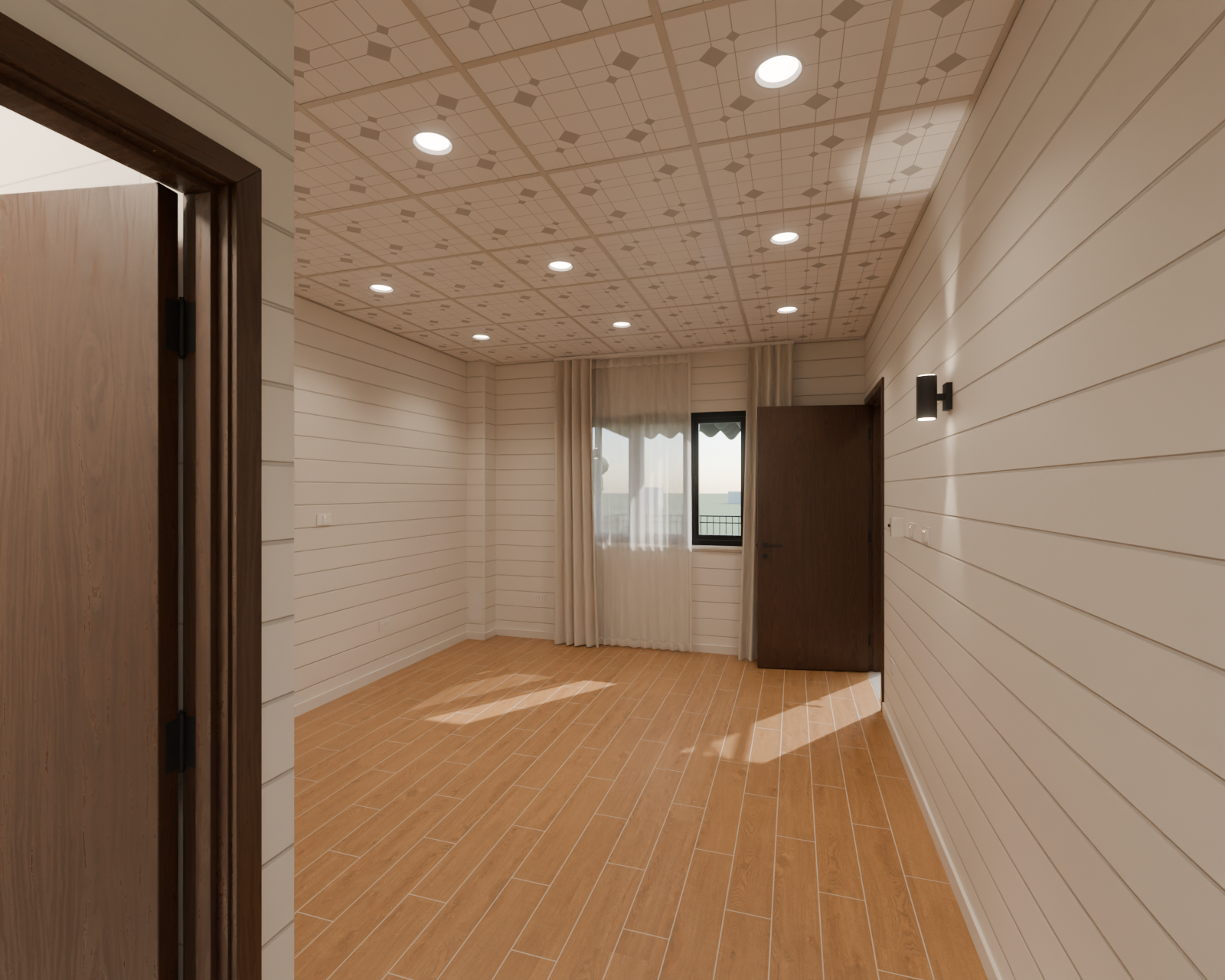

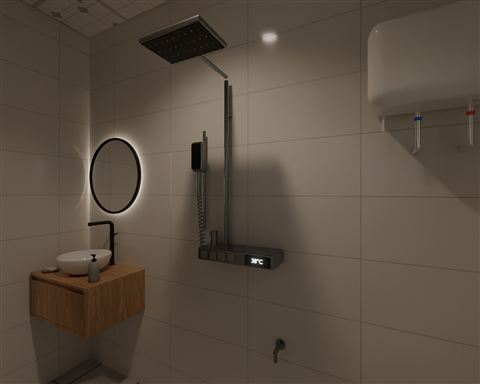

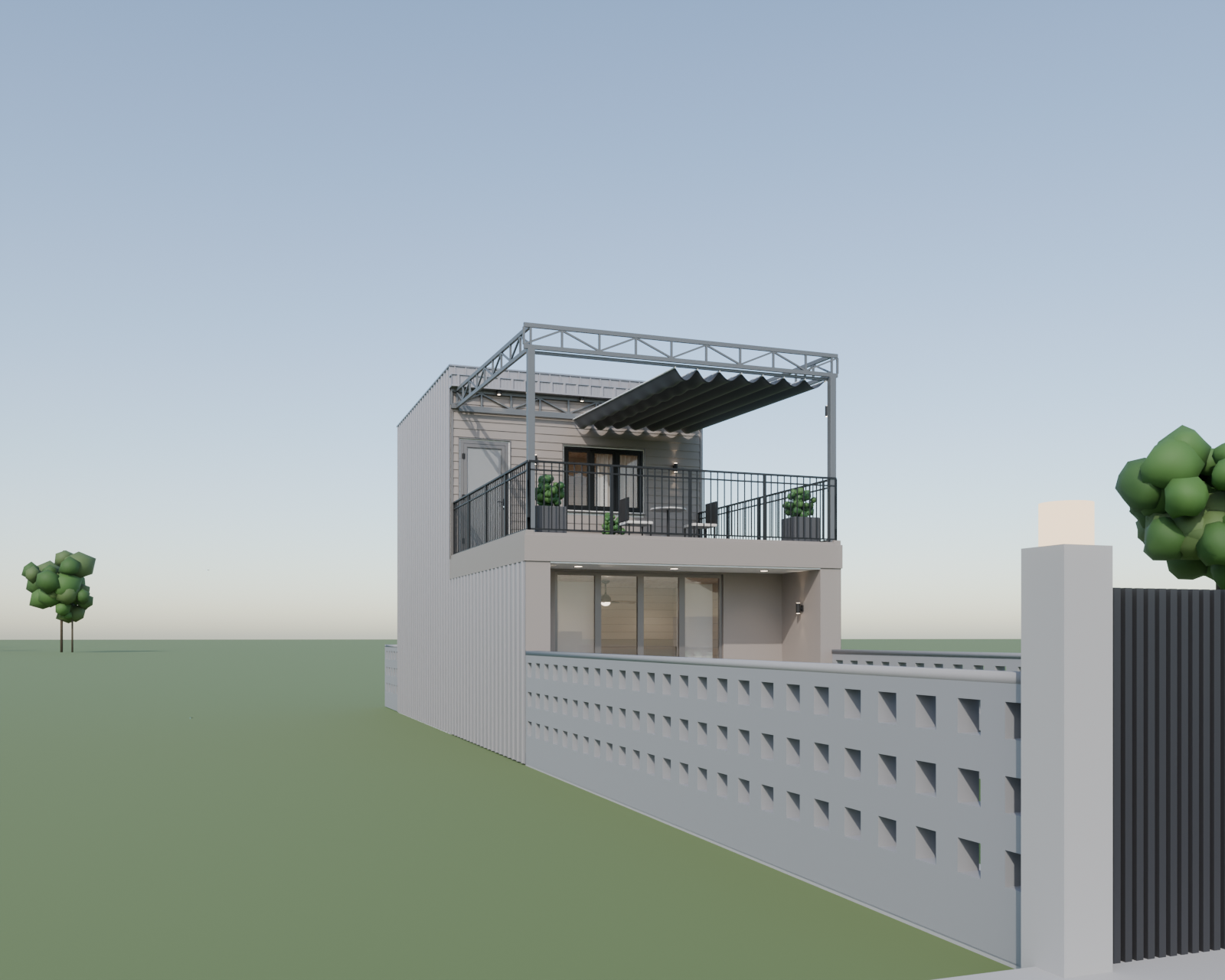

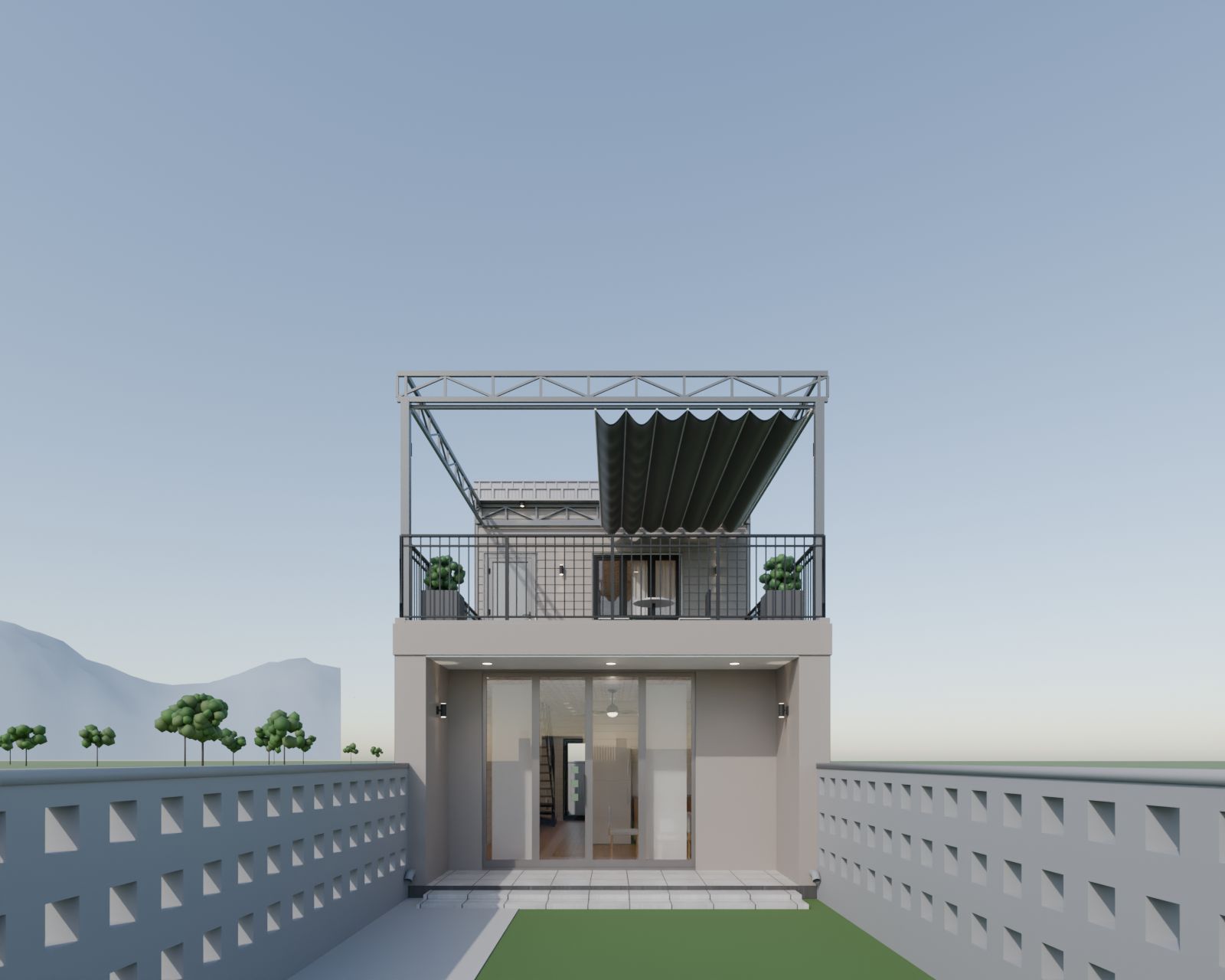

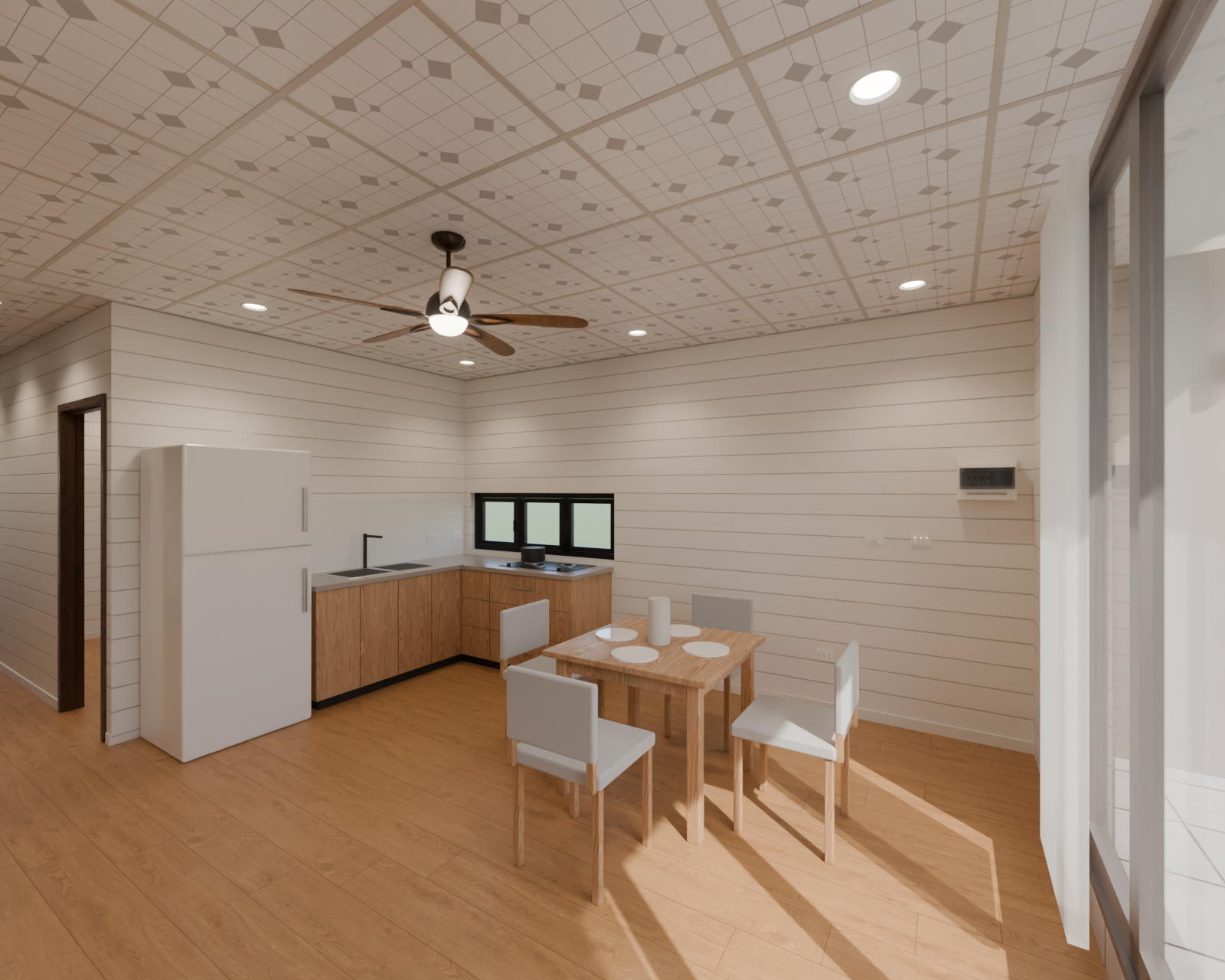

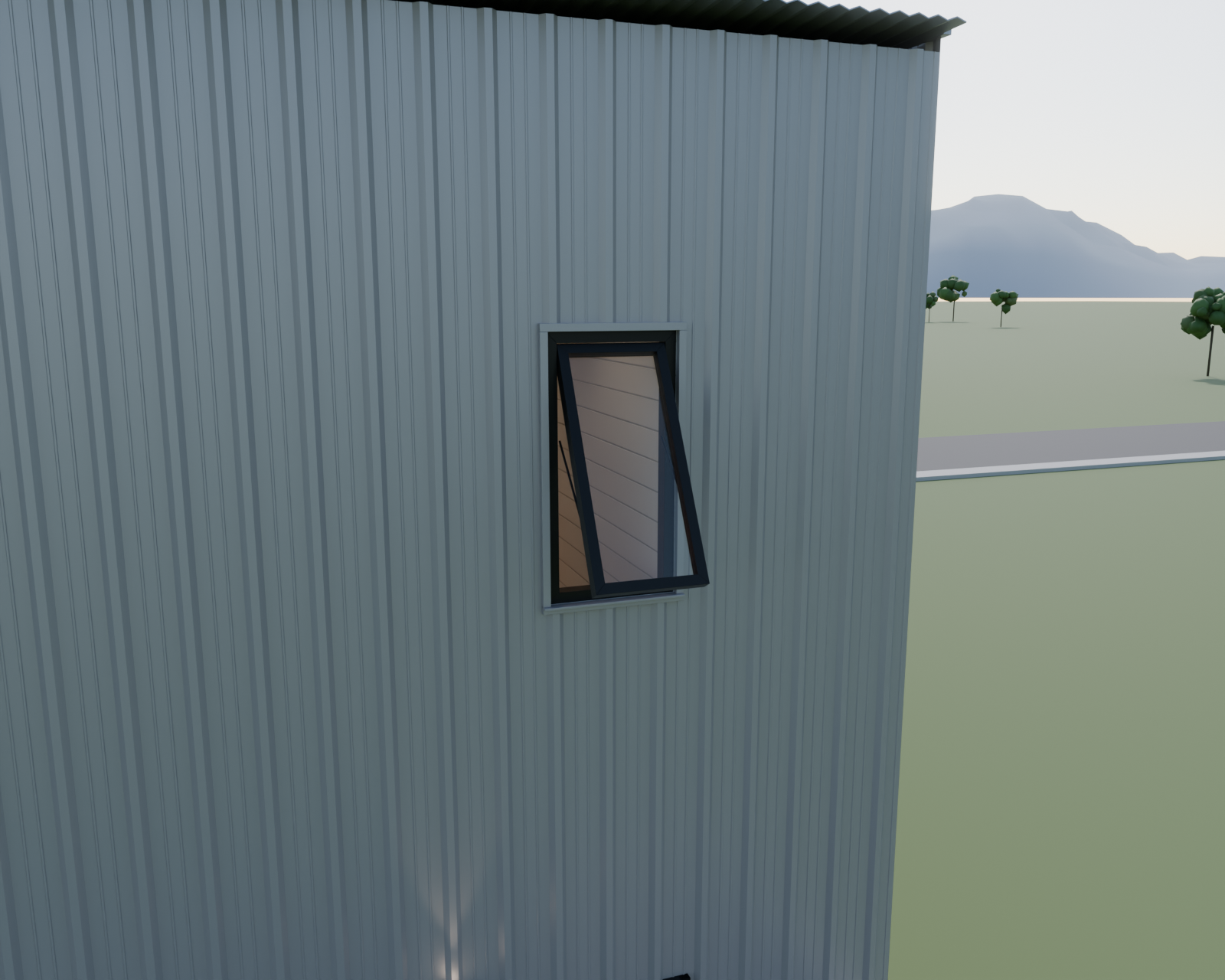

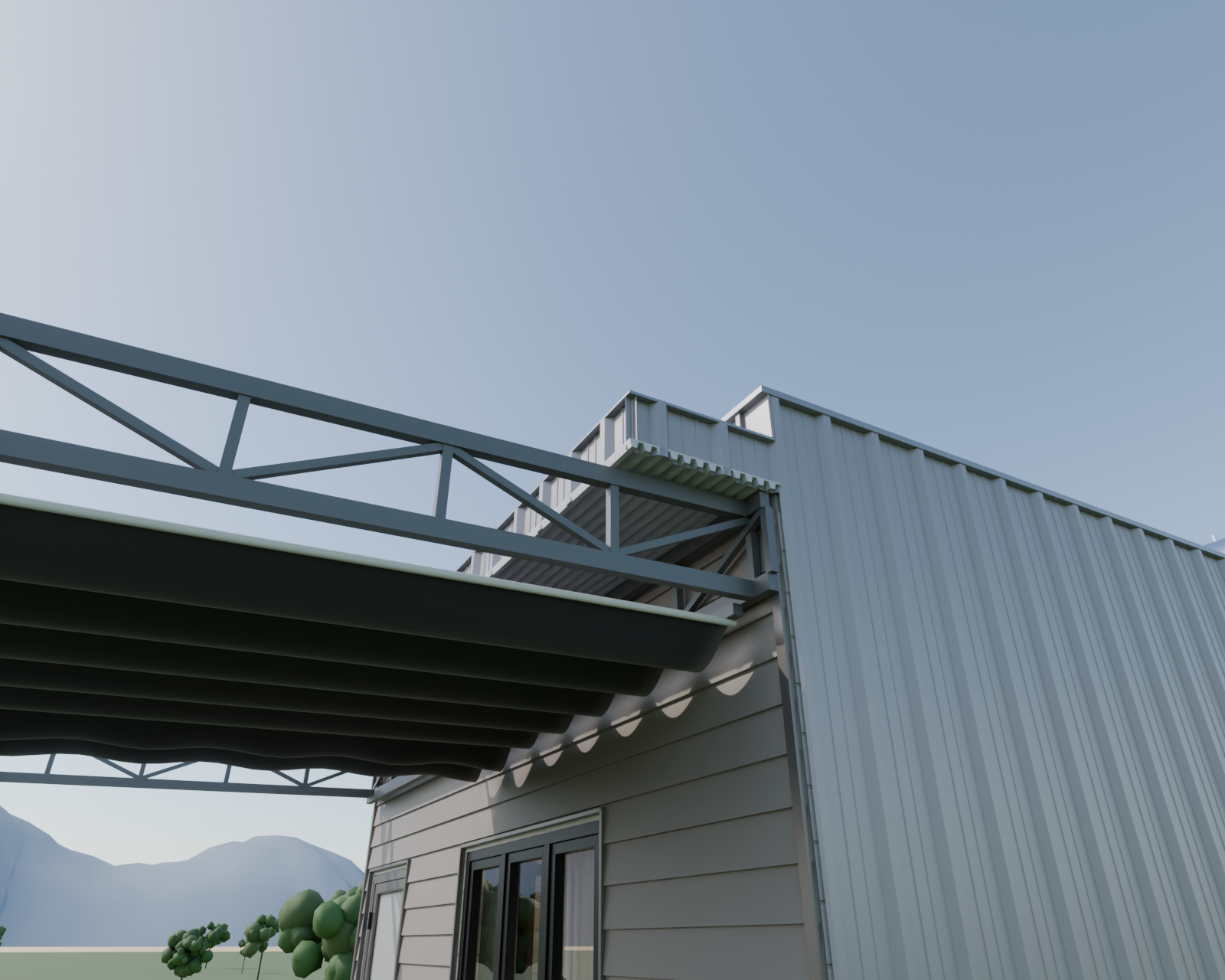

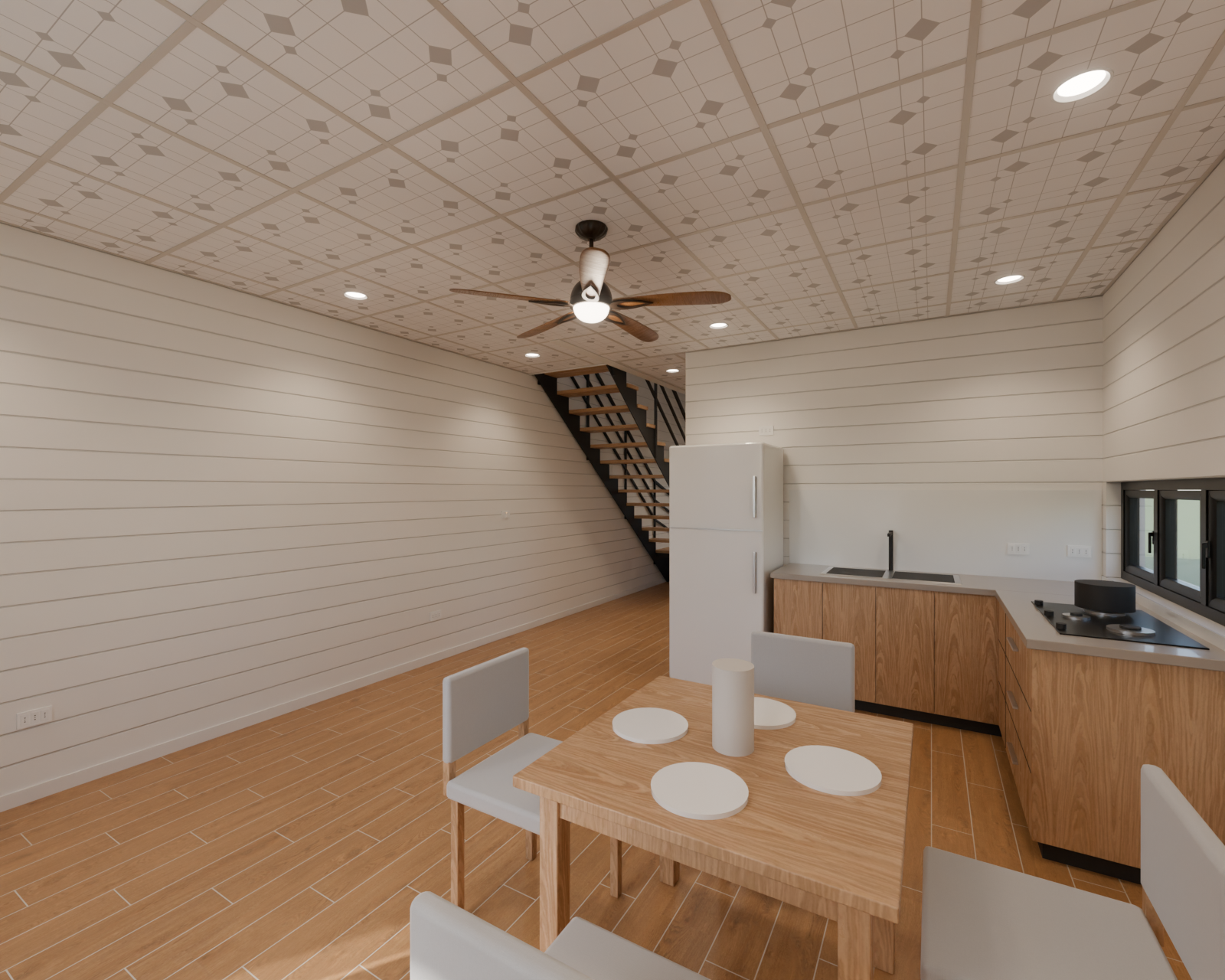

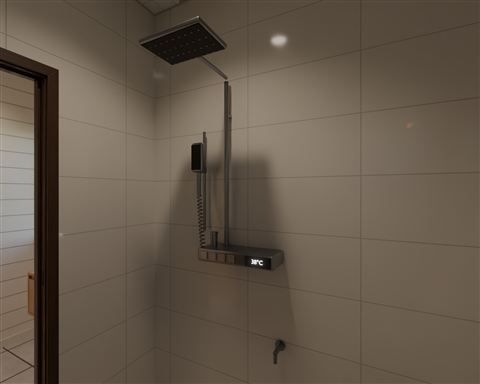

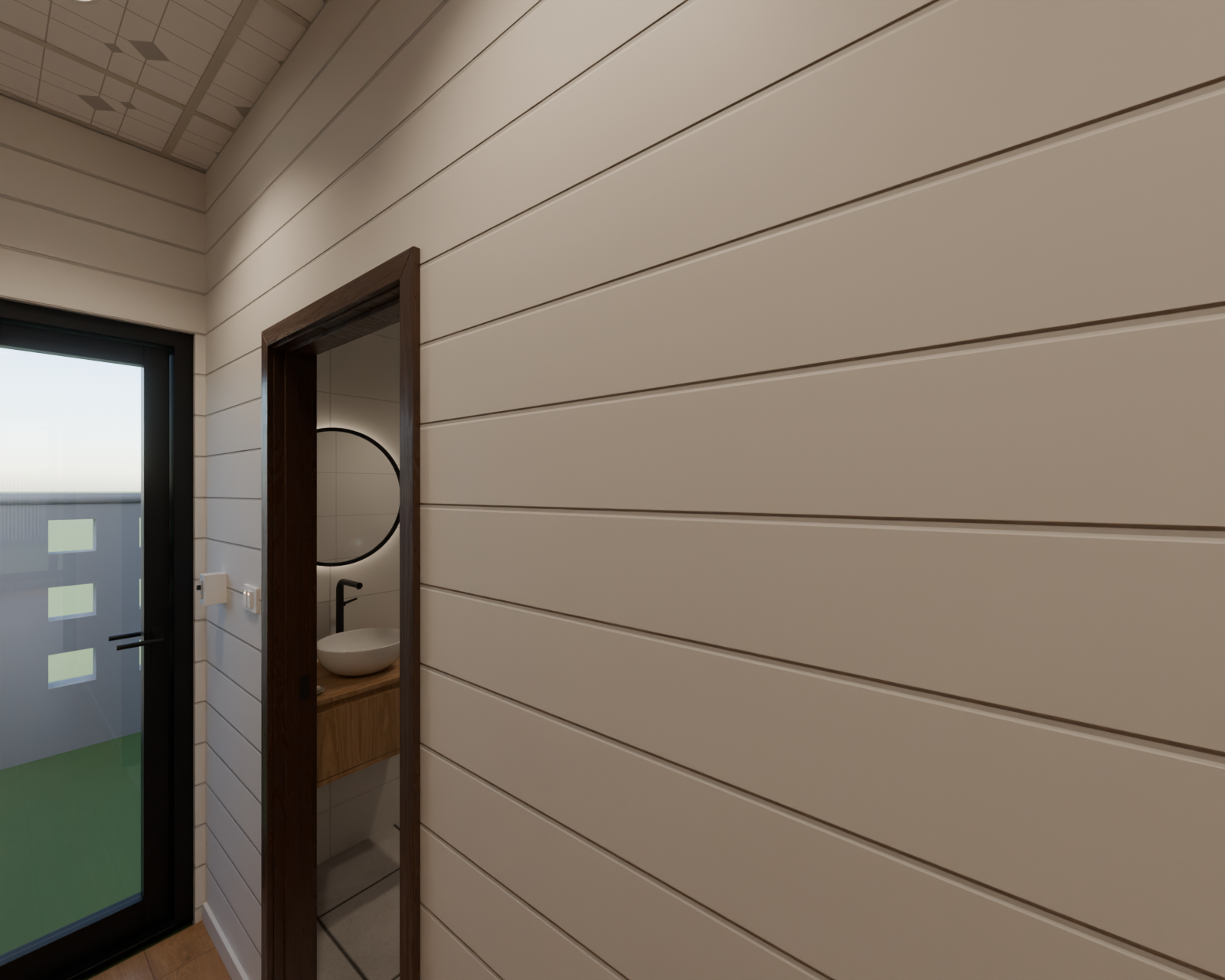

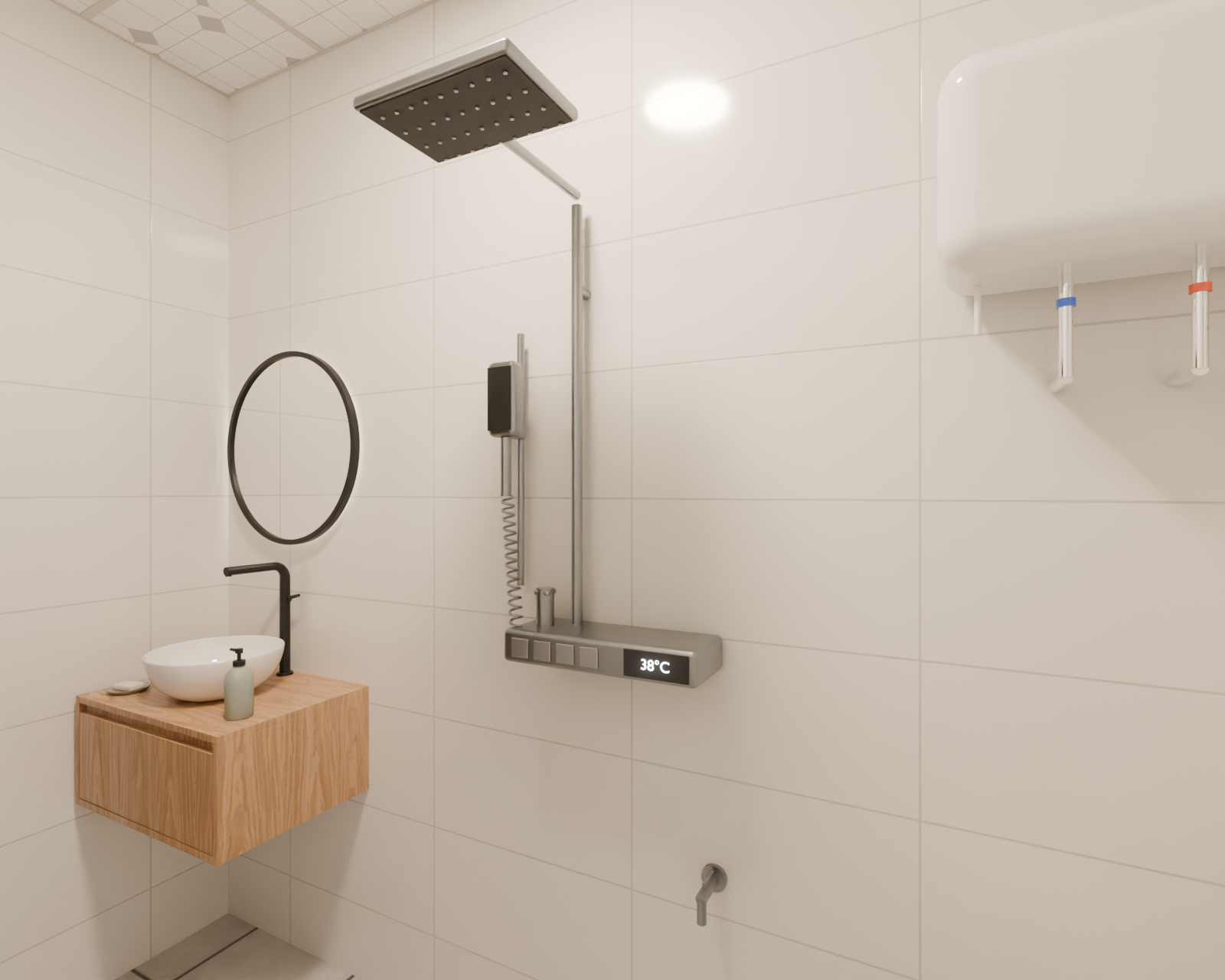

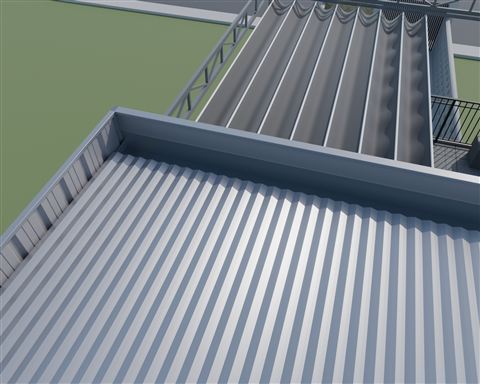

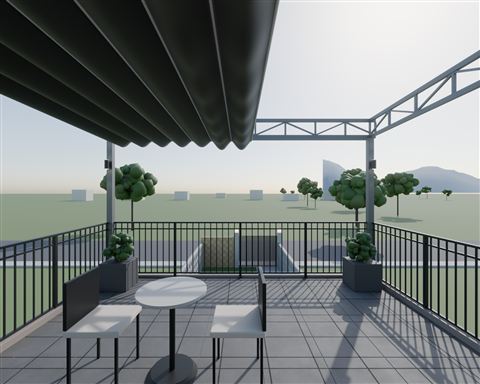

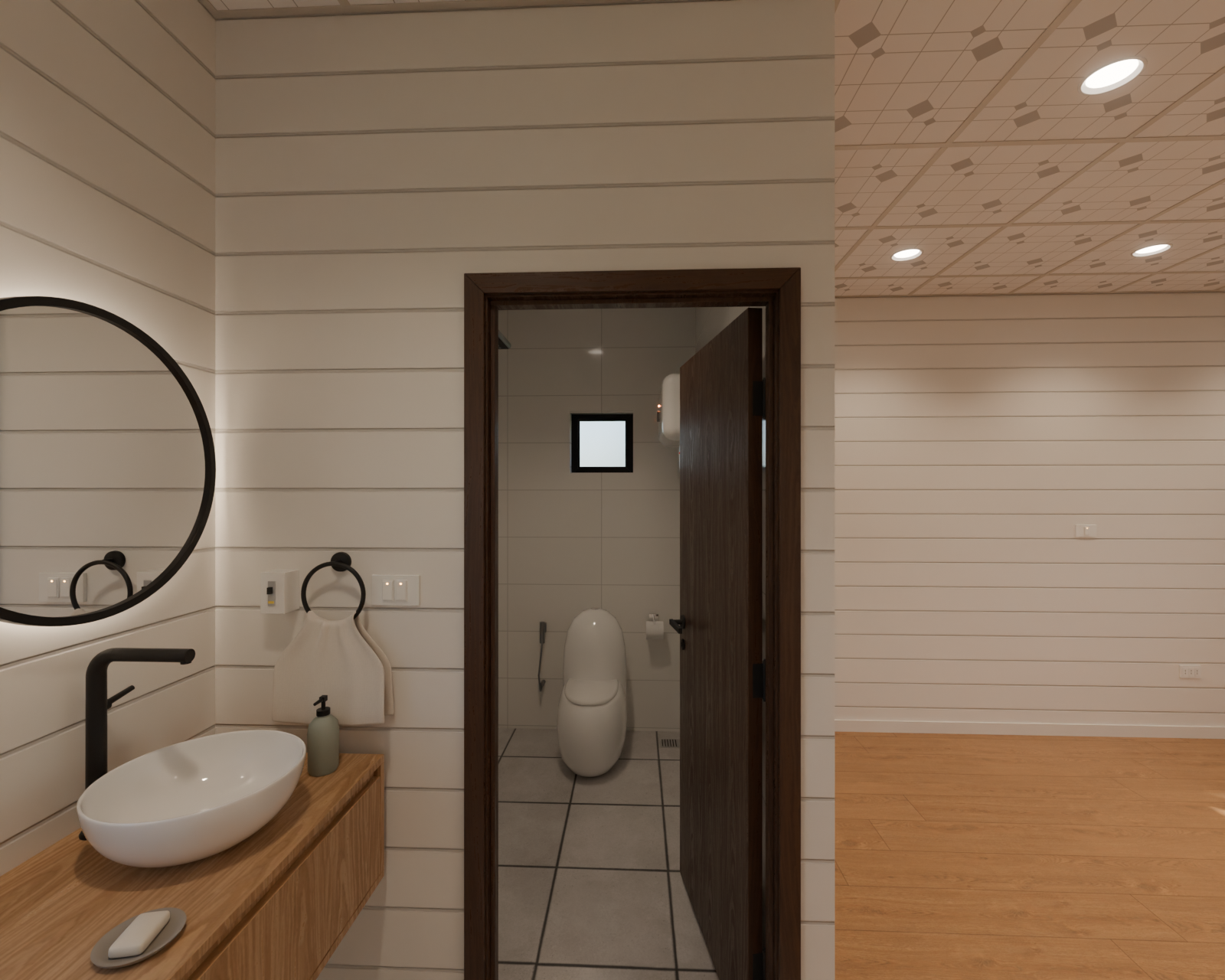

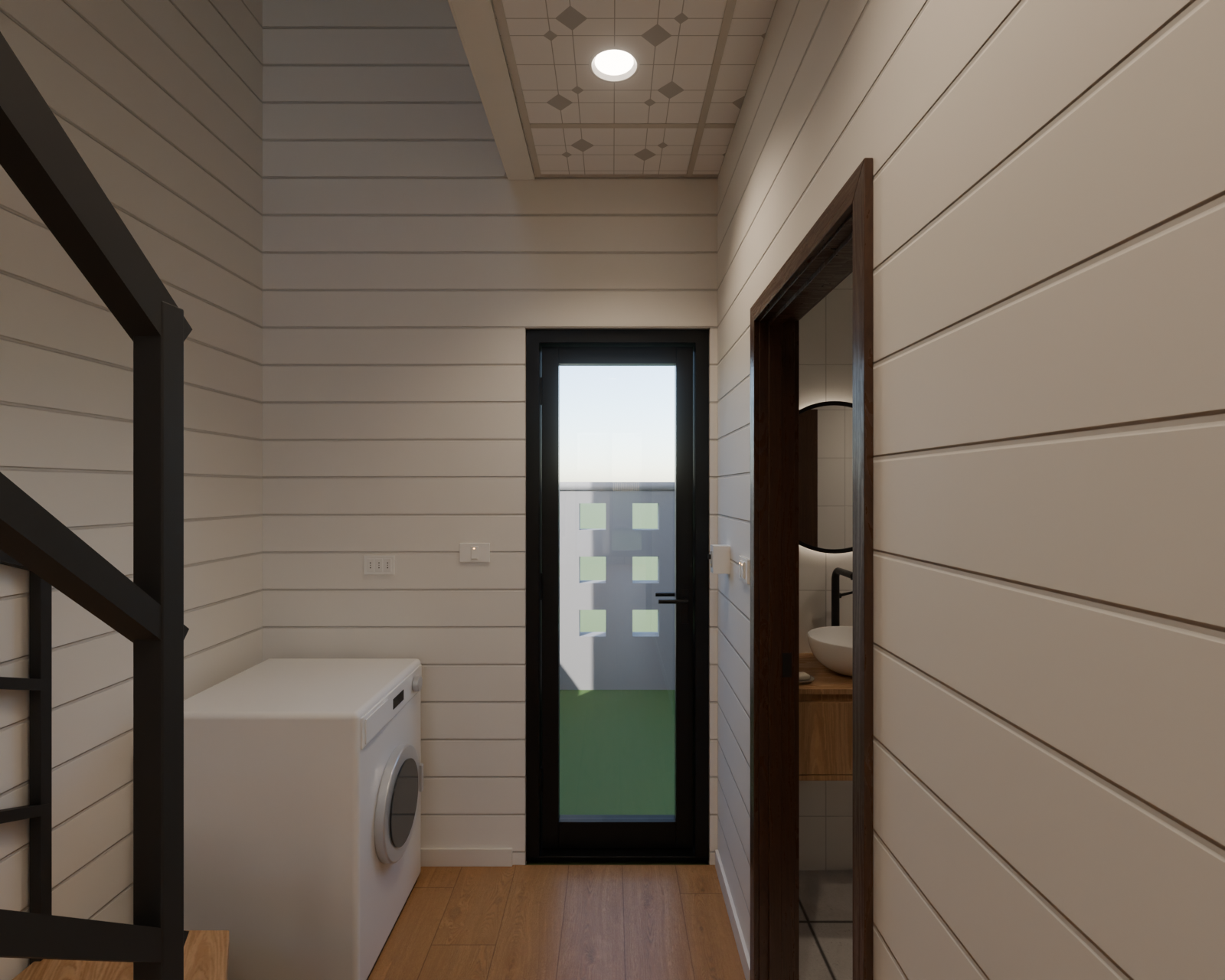

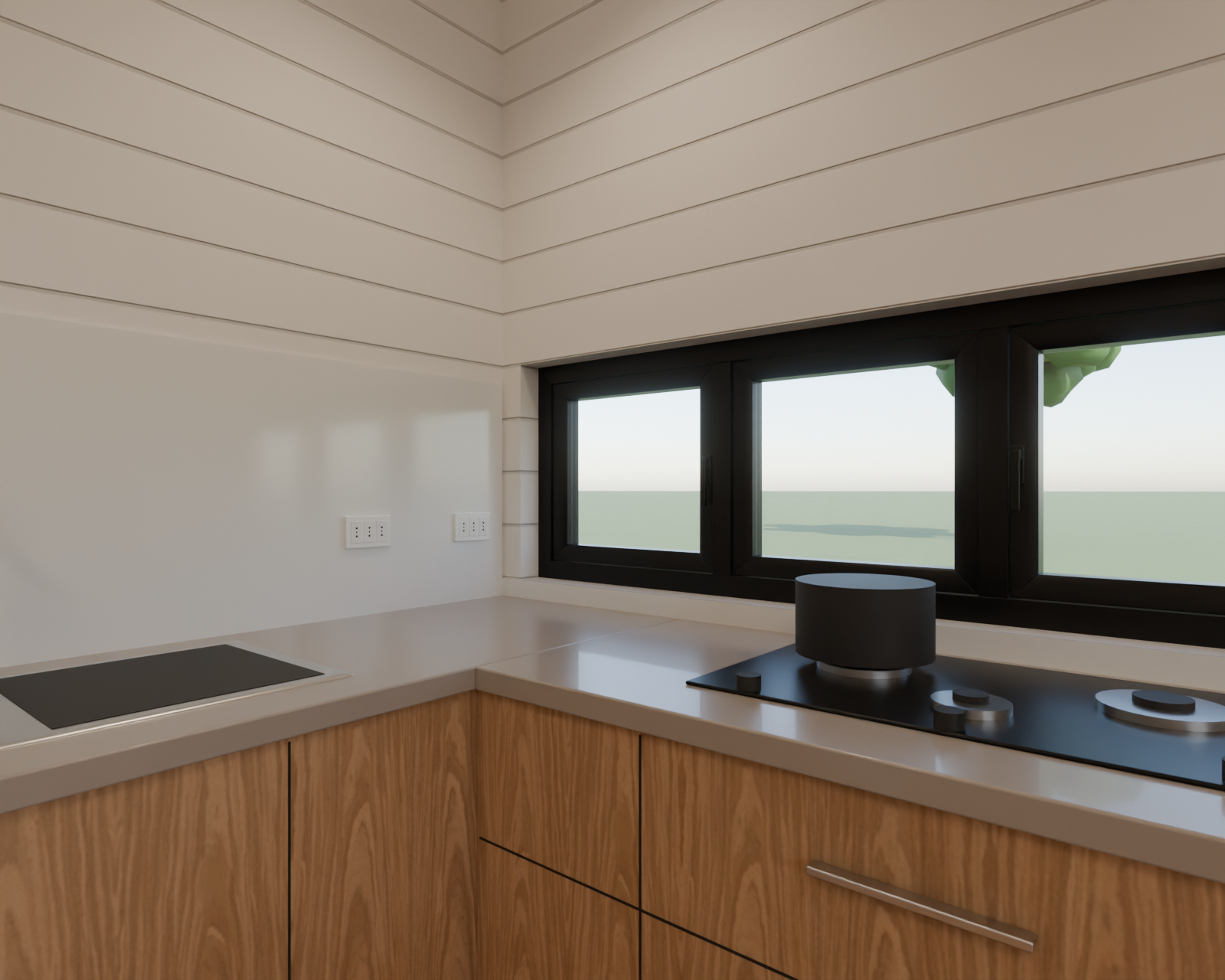

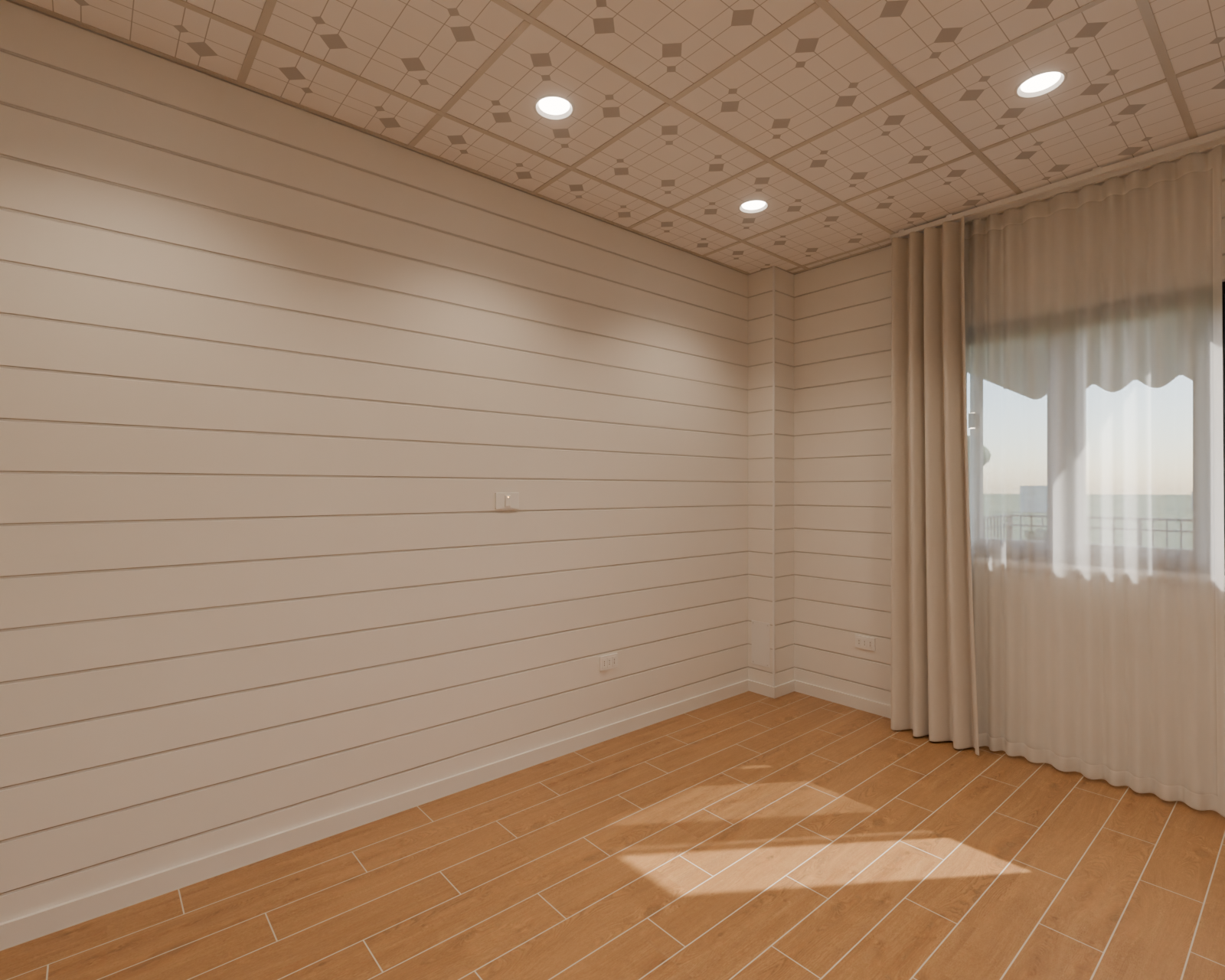

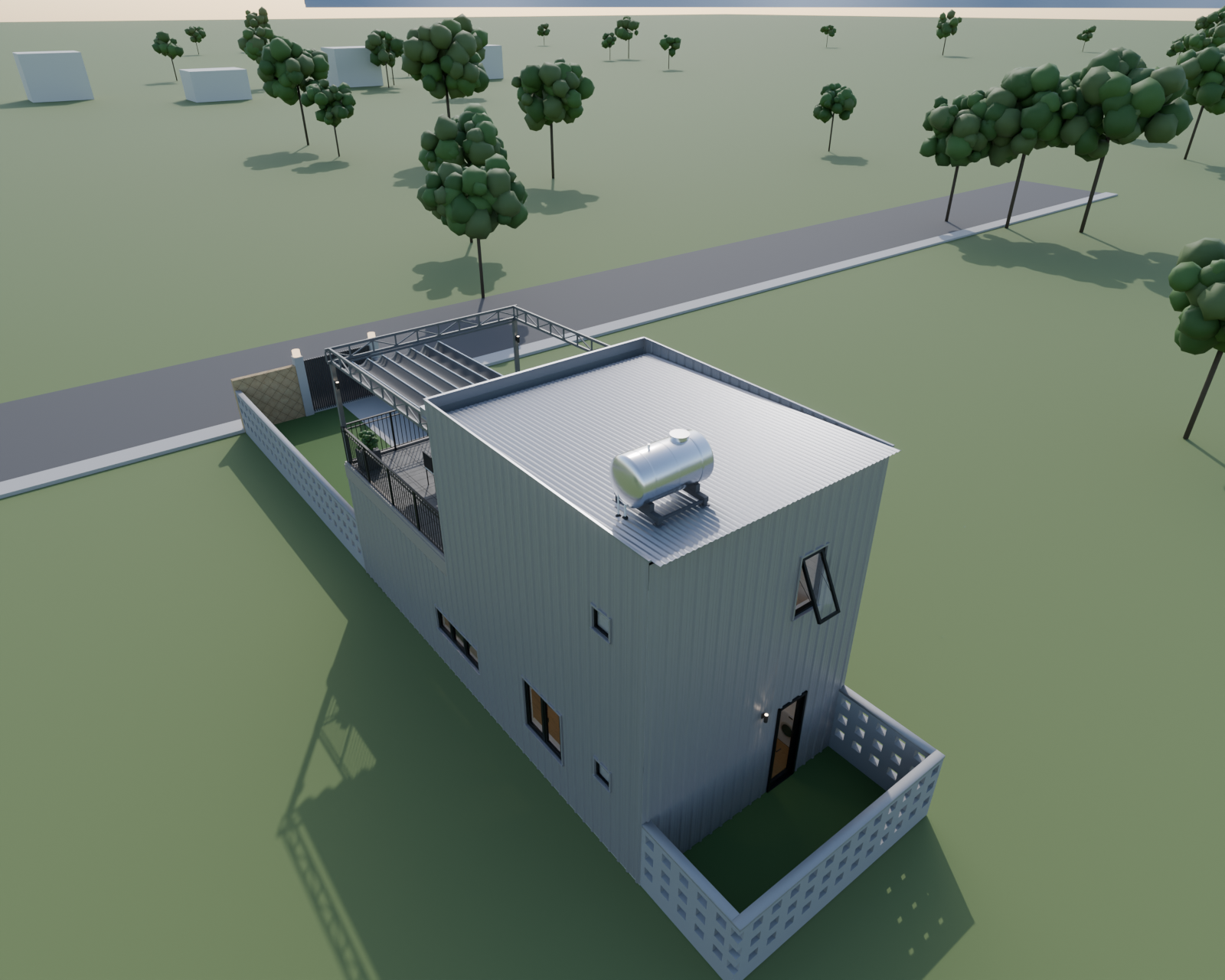

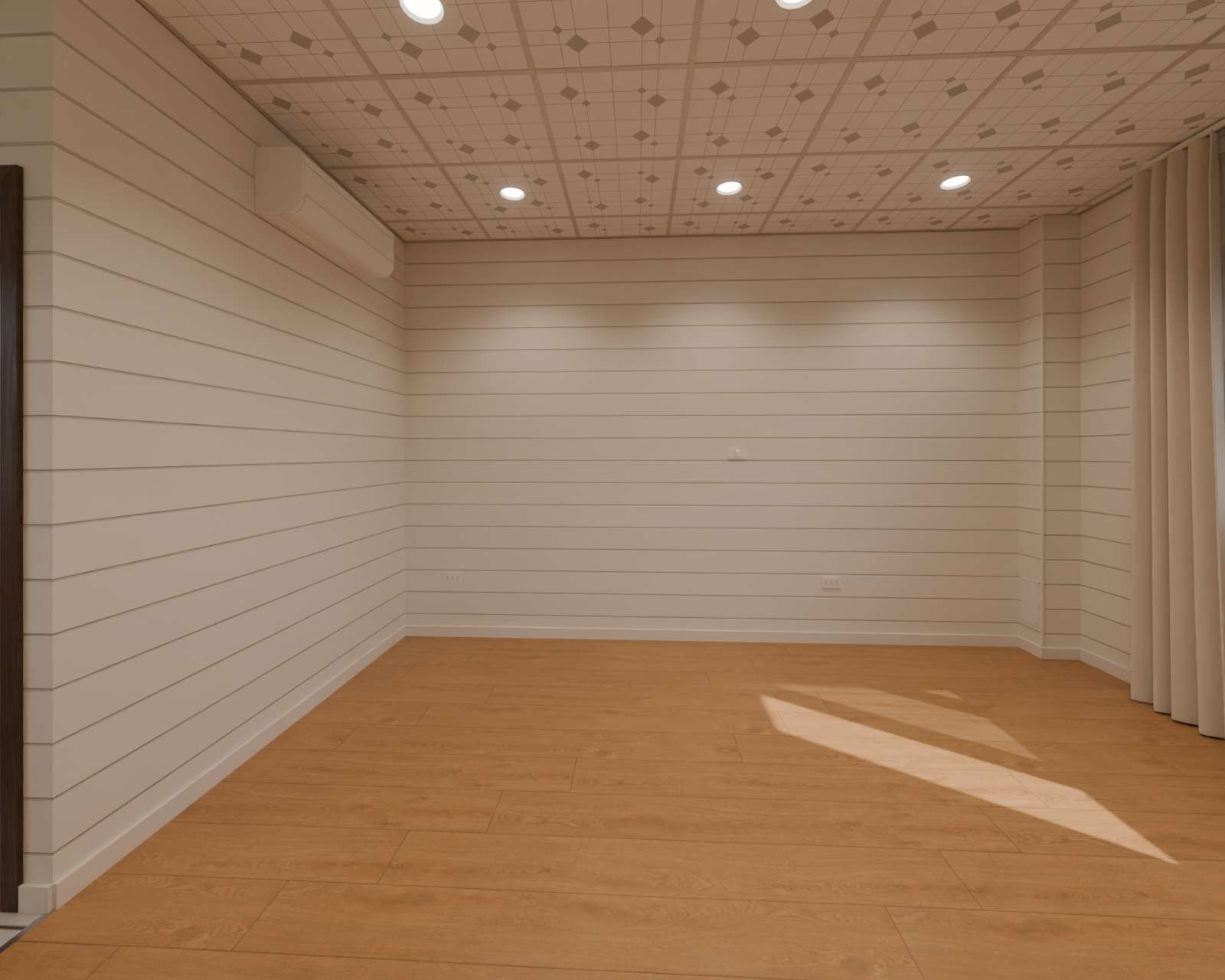

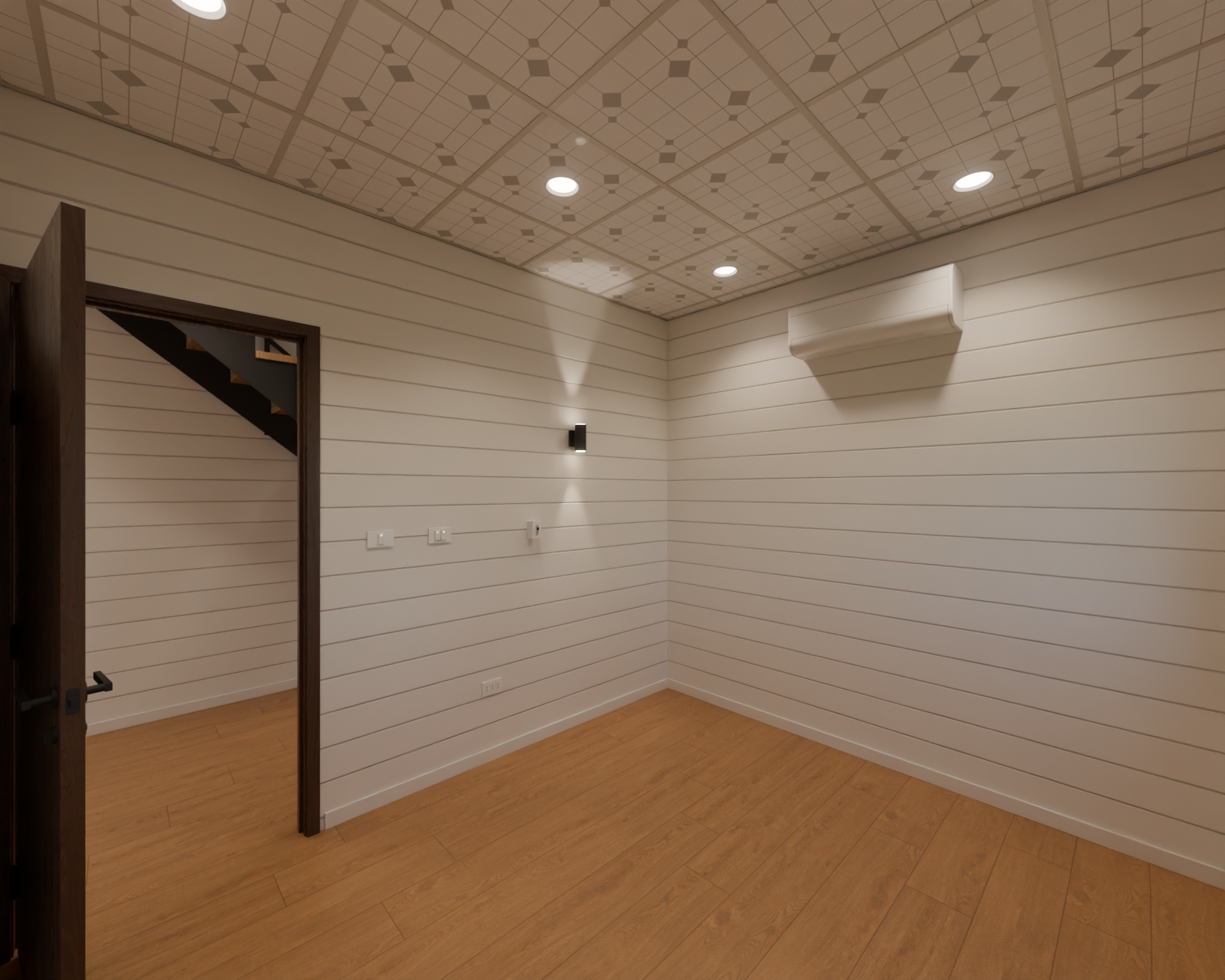

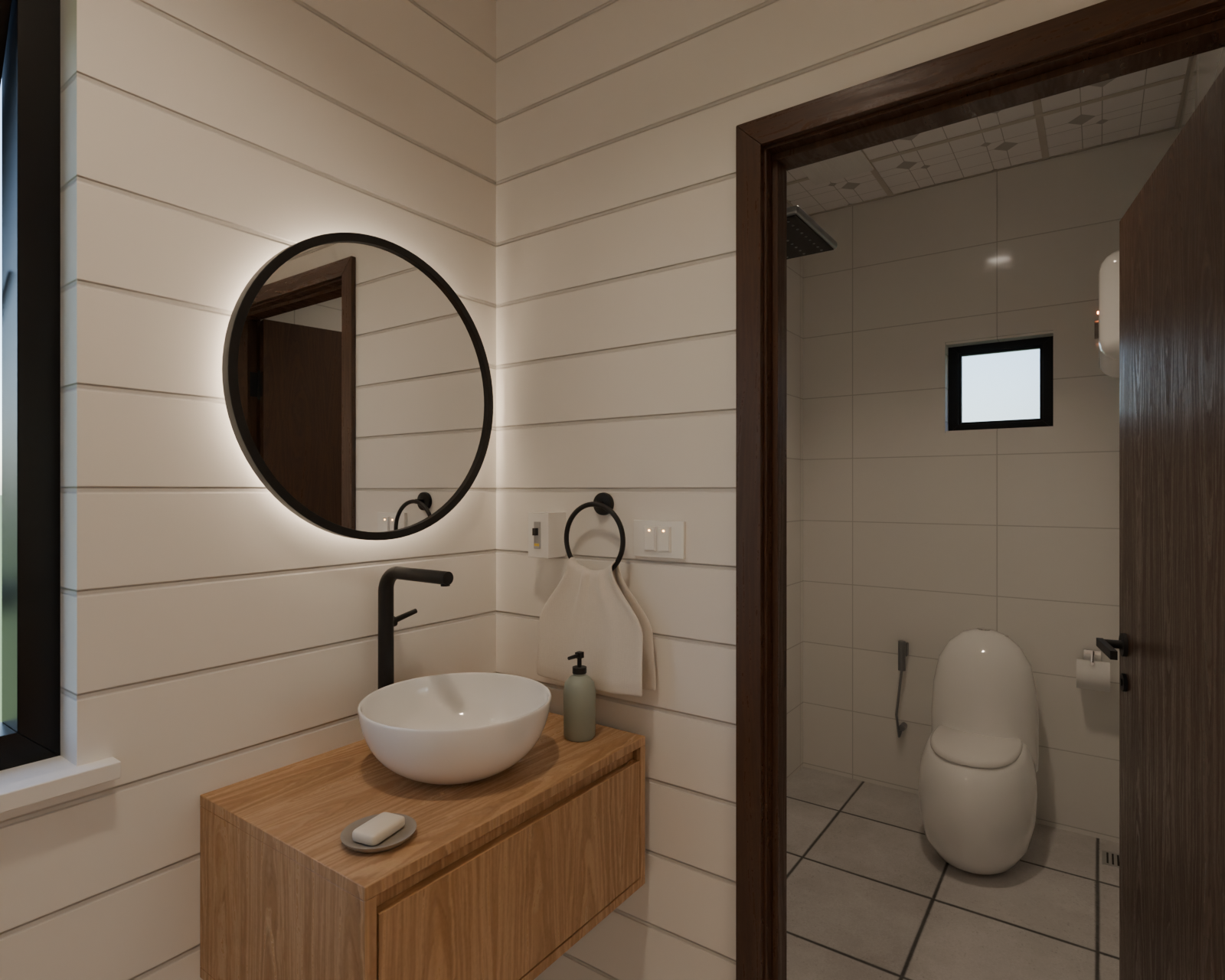

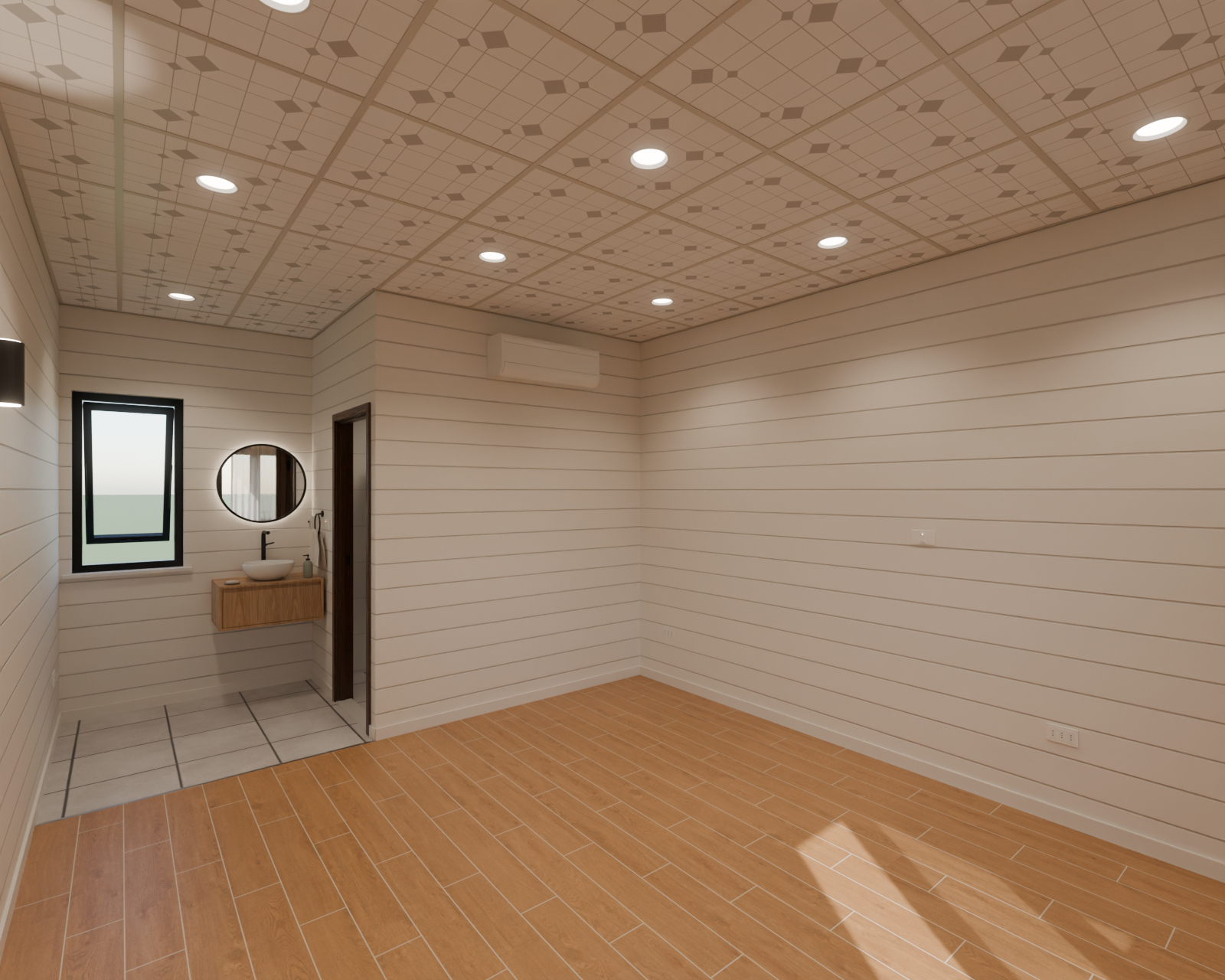

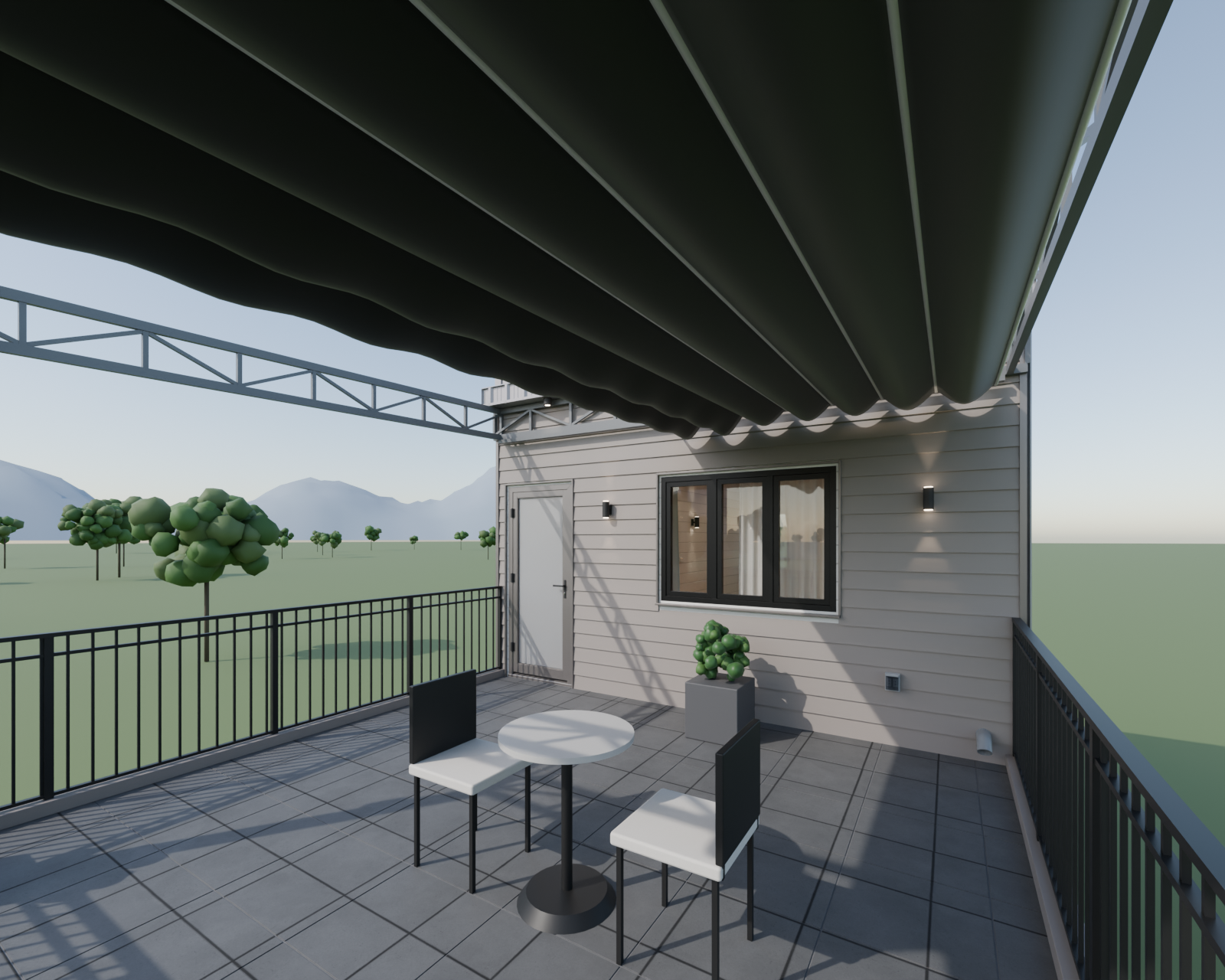

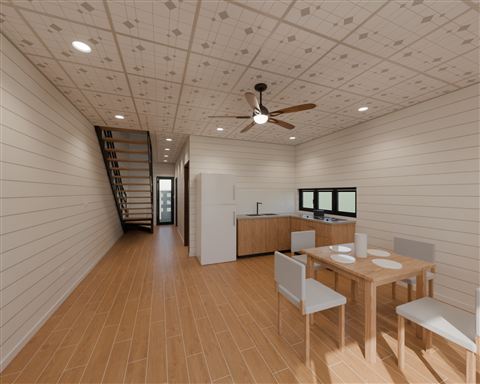

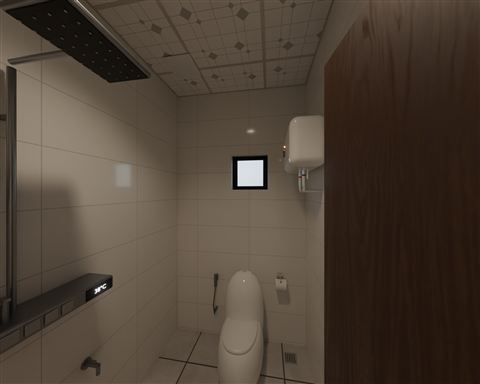

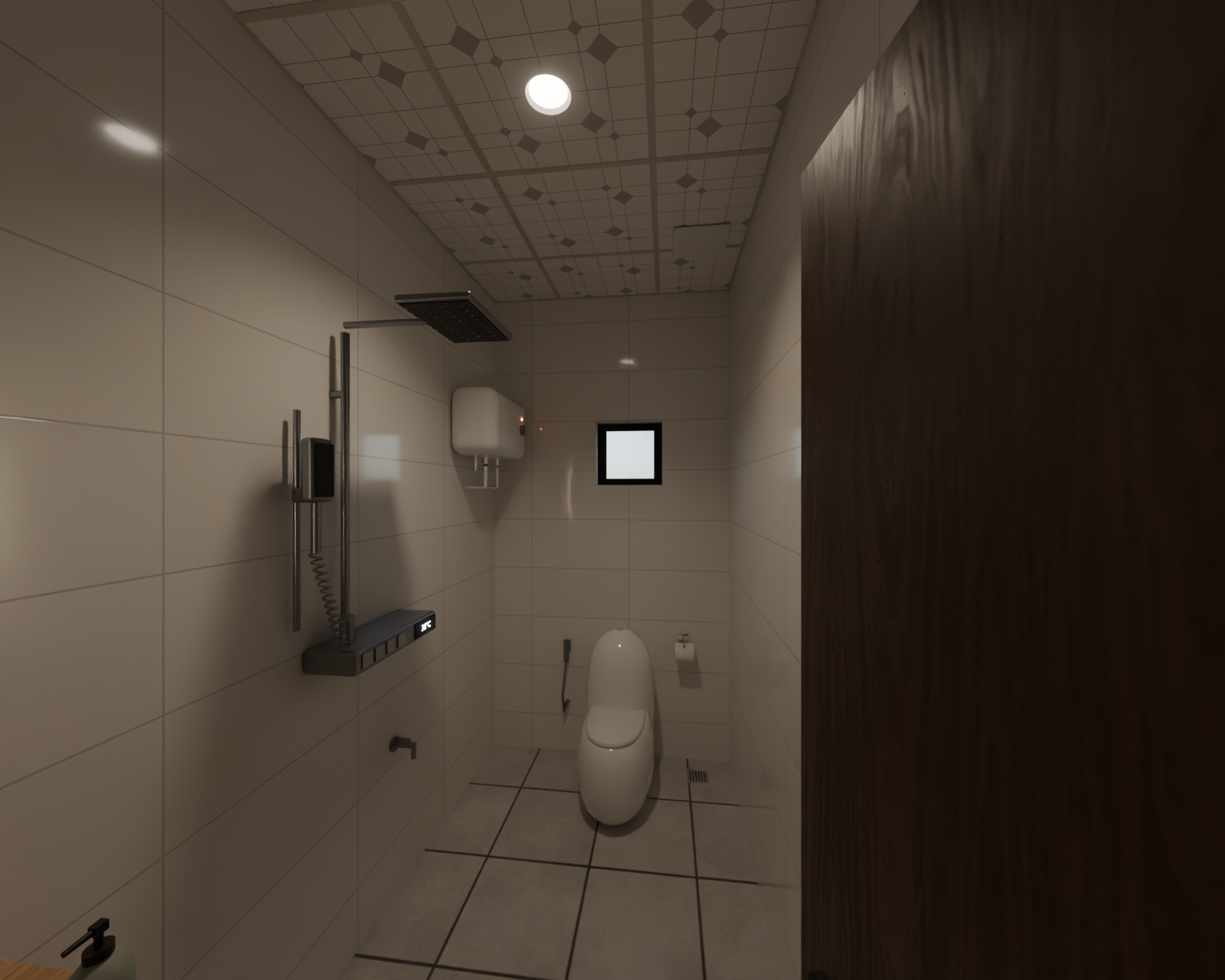

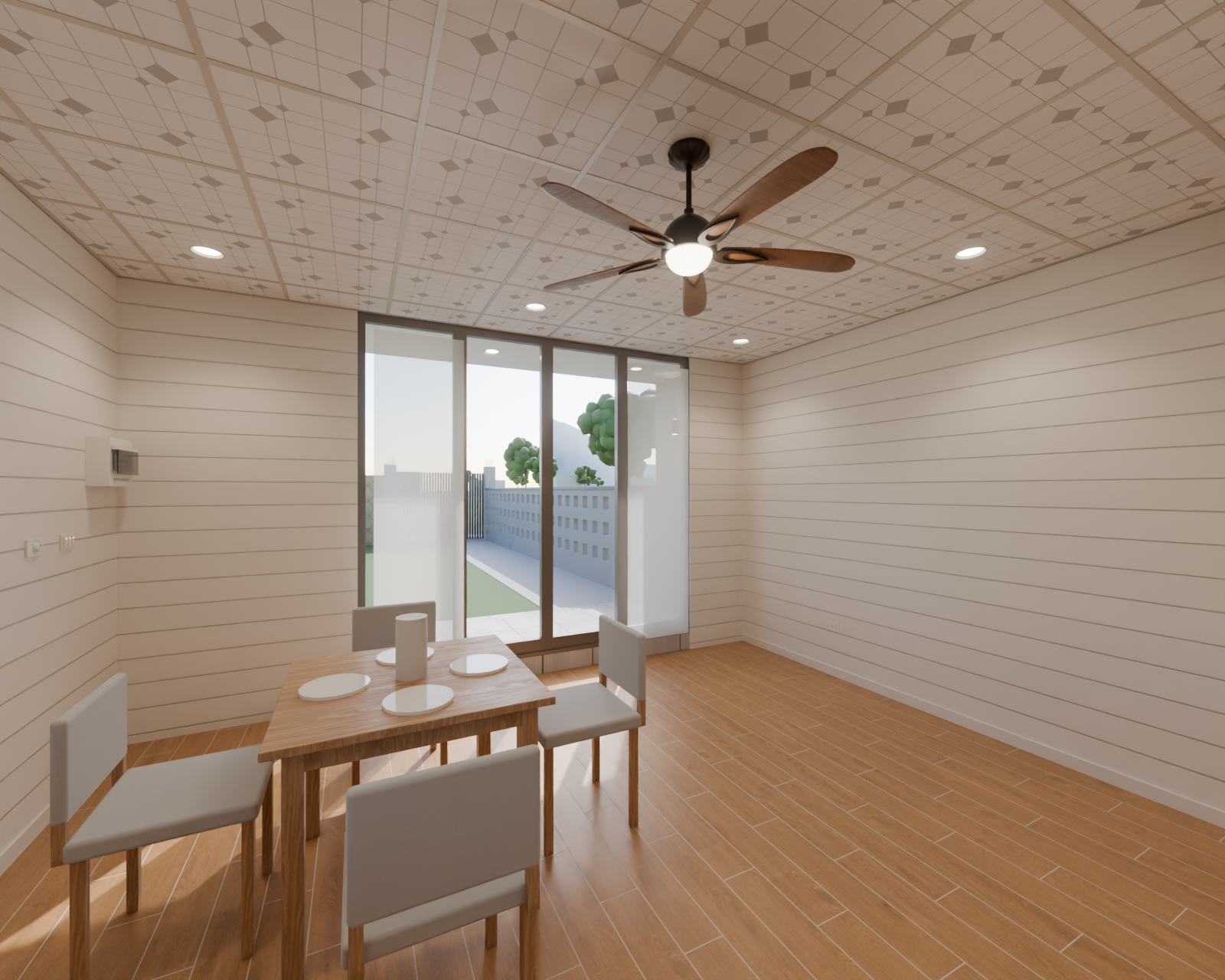

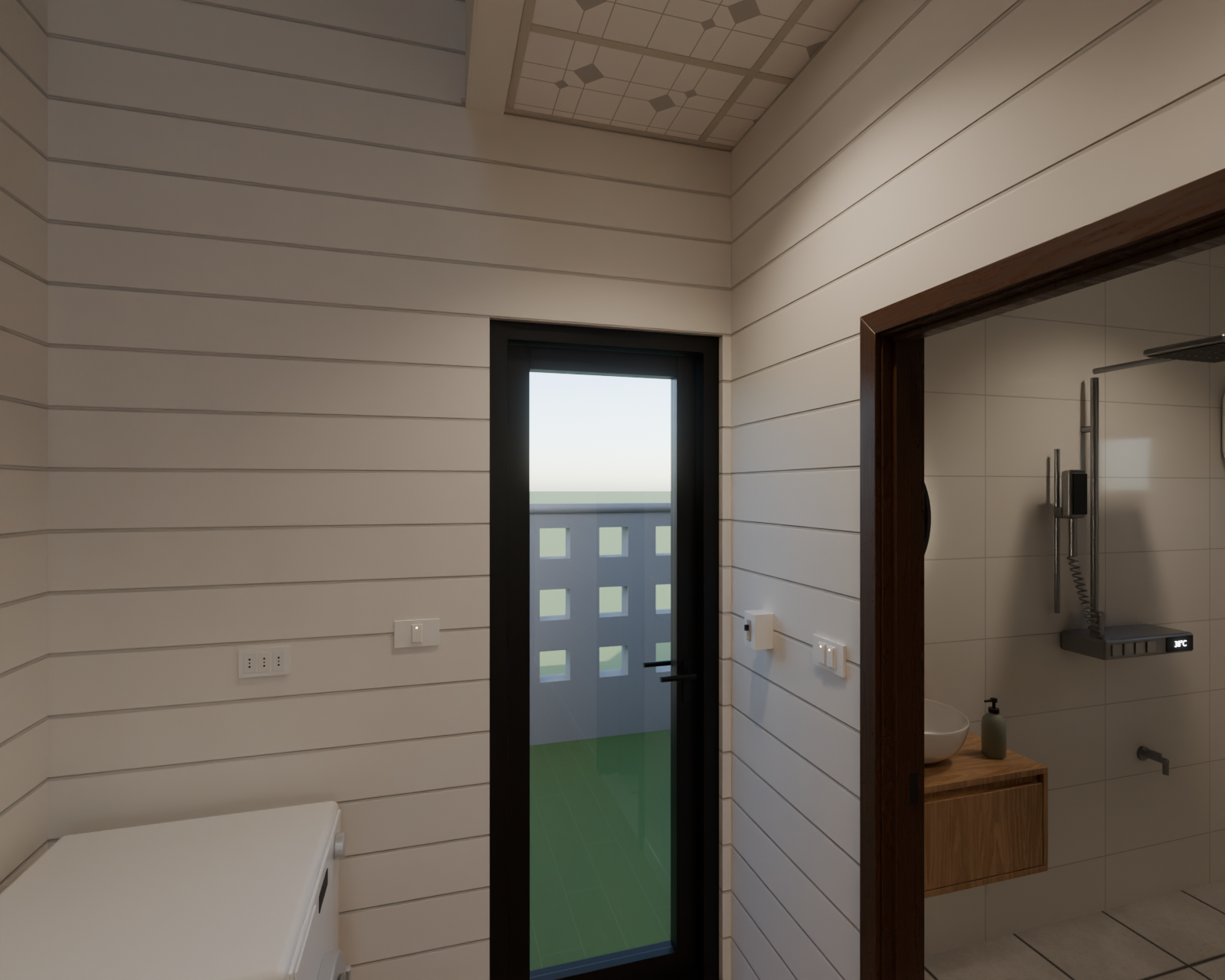

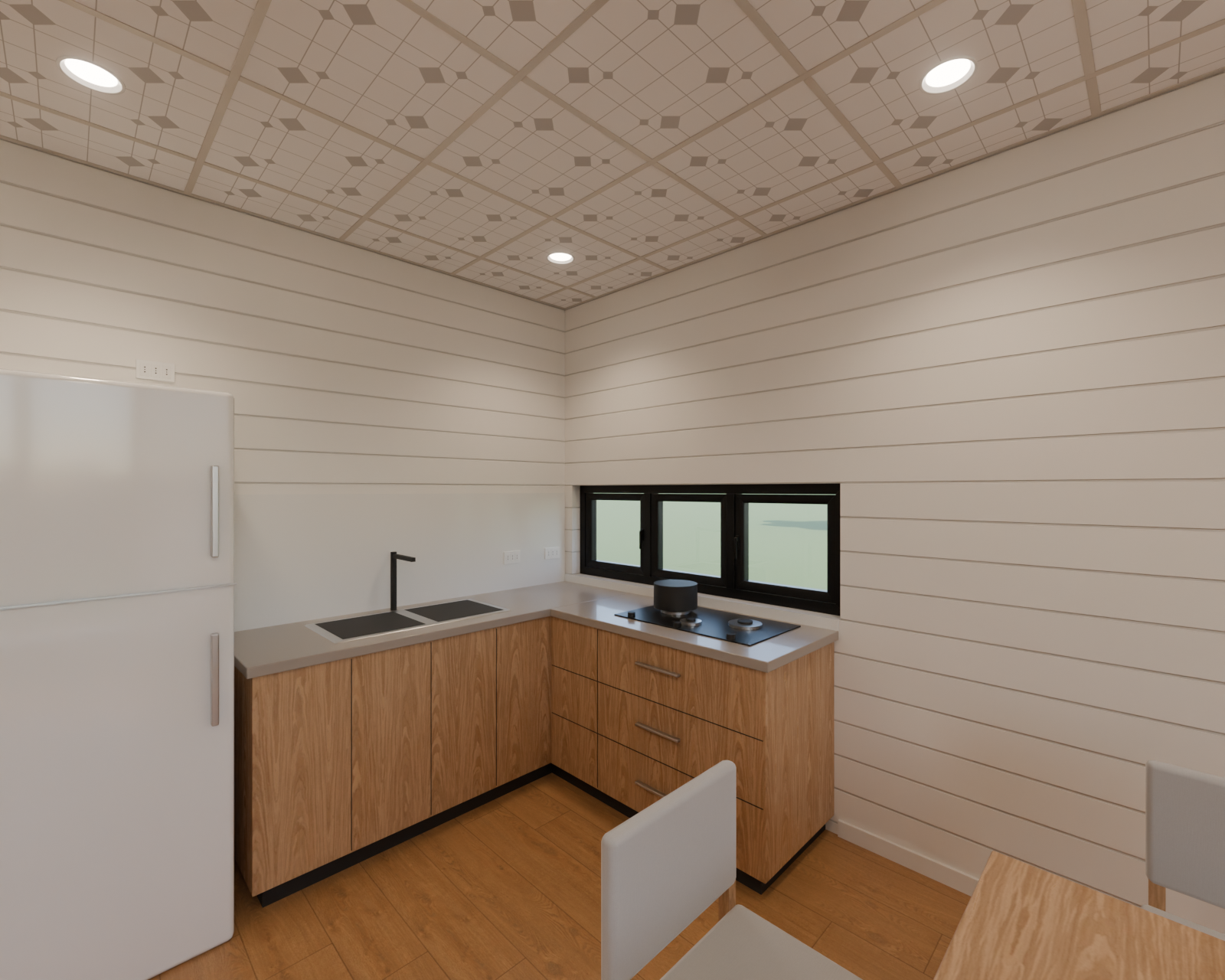

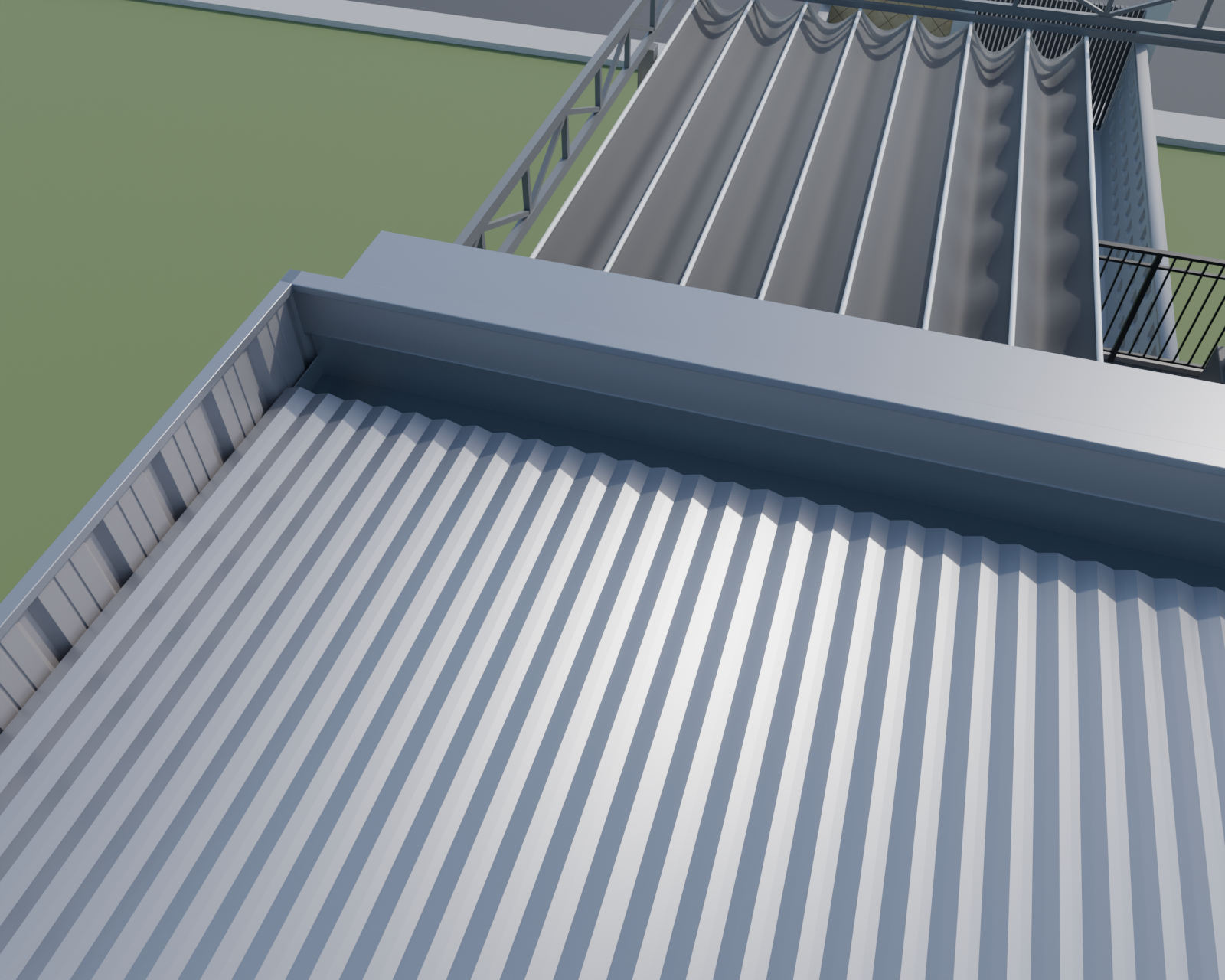

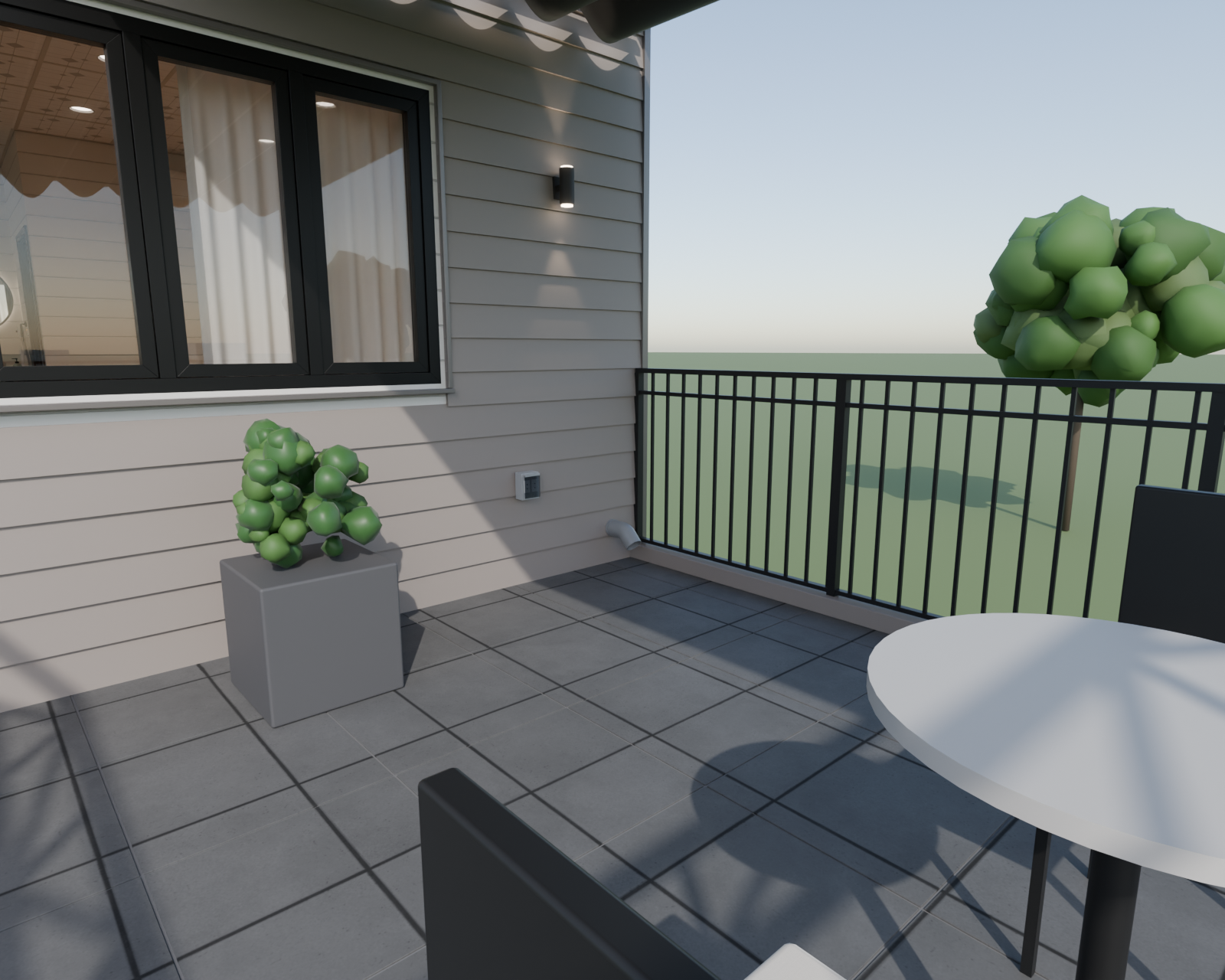

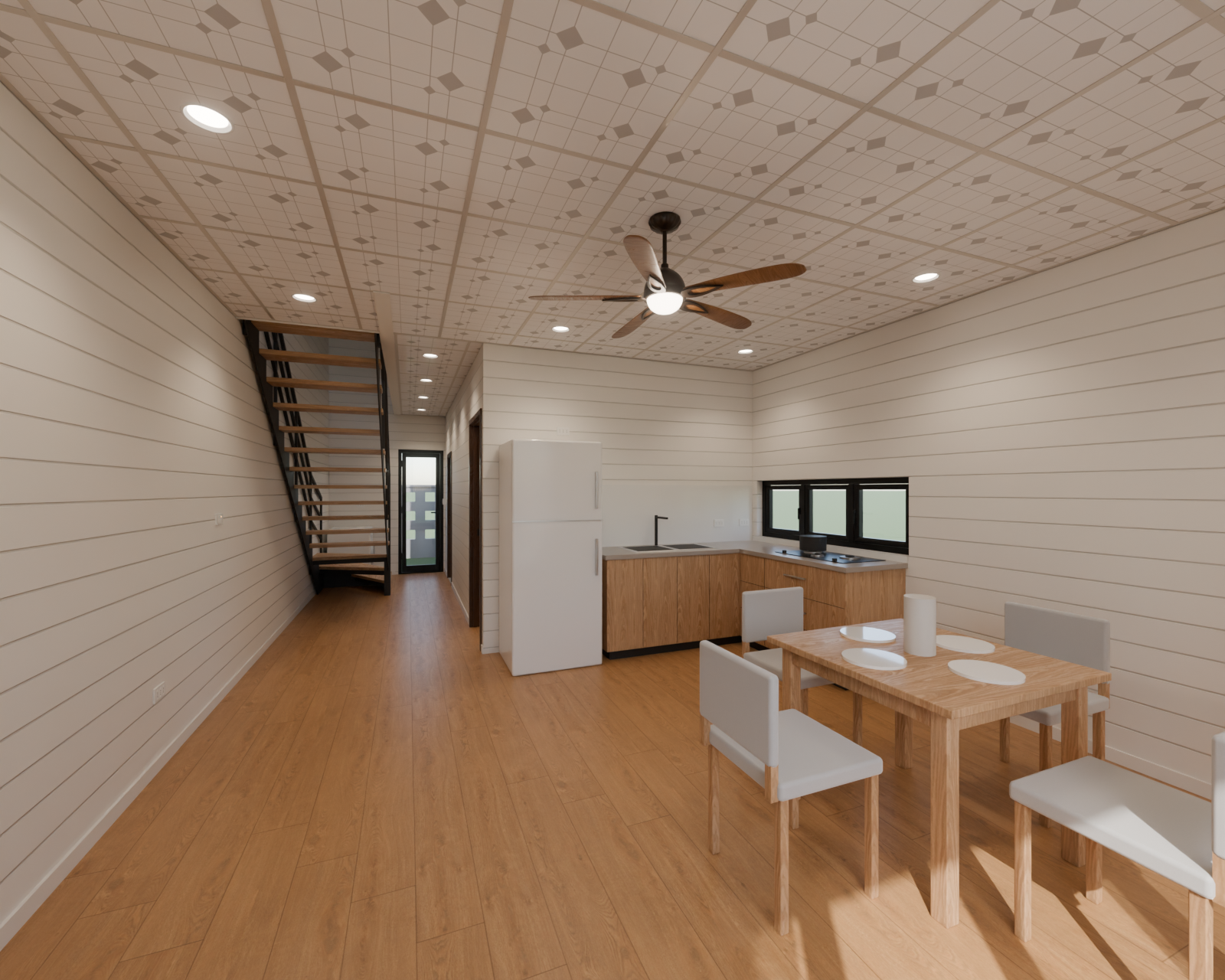

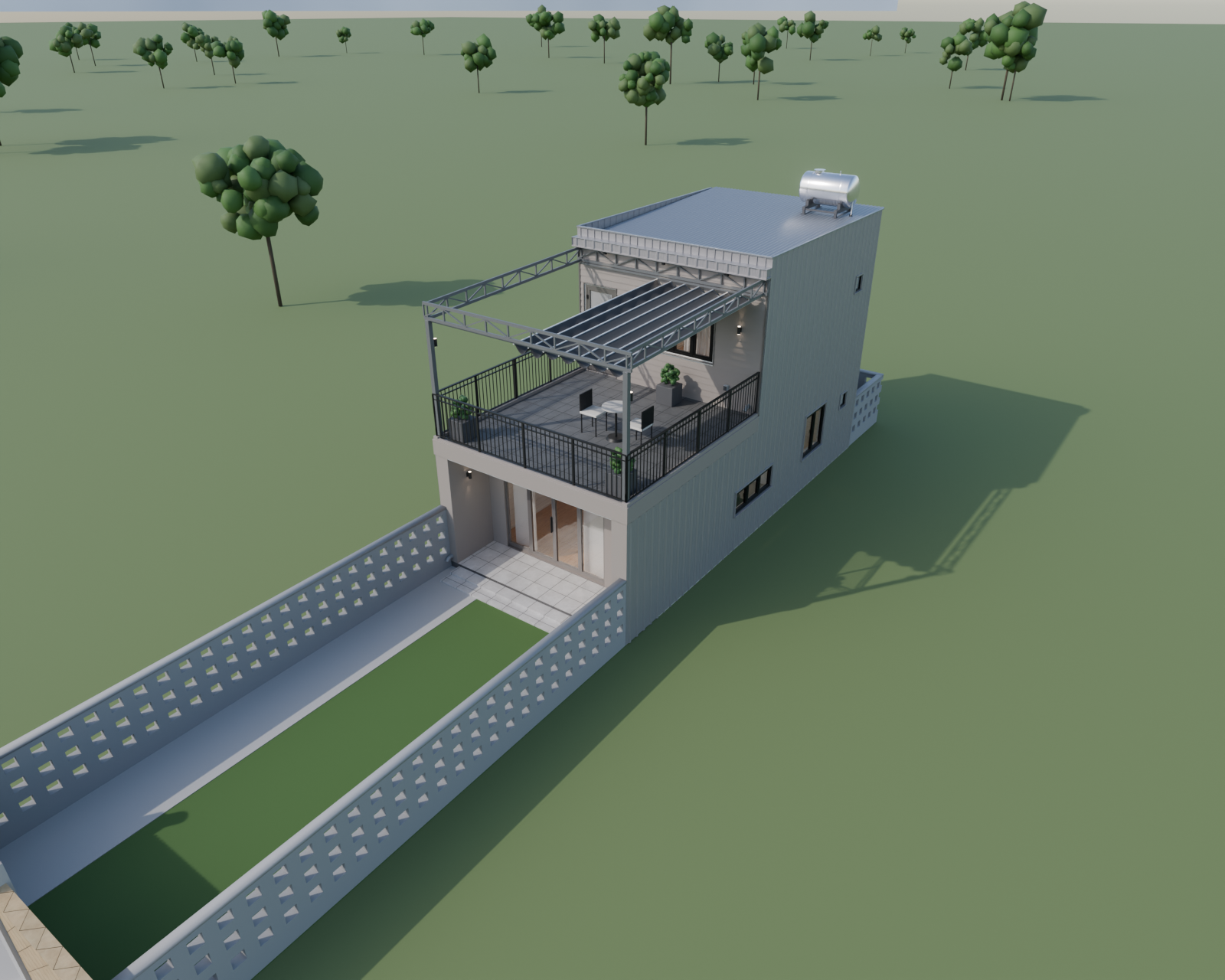

Finishes: floor TASA 1913 wood-grain porcelain, ceiling pattern 044, grey AZ trapezoid panels outside, dark grey stone-look terrace tiles, egg-shaped one-piece toilets, gunmetal thermostatic shower sets, waterproof tile in the wash-basin alcove, low kitchen strip window, opening glass window at the back, grey block fences flush with the side walls and a 2 m rear fence, 500 L water tank on the roof.
How to read the service views

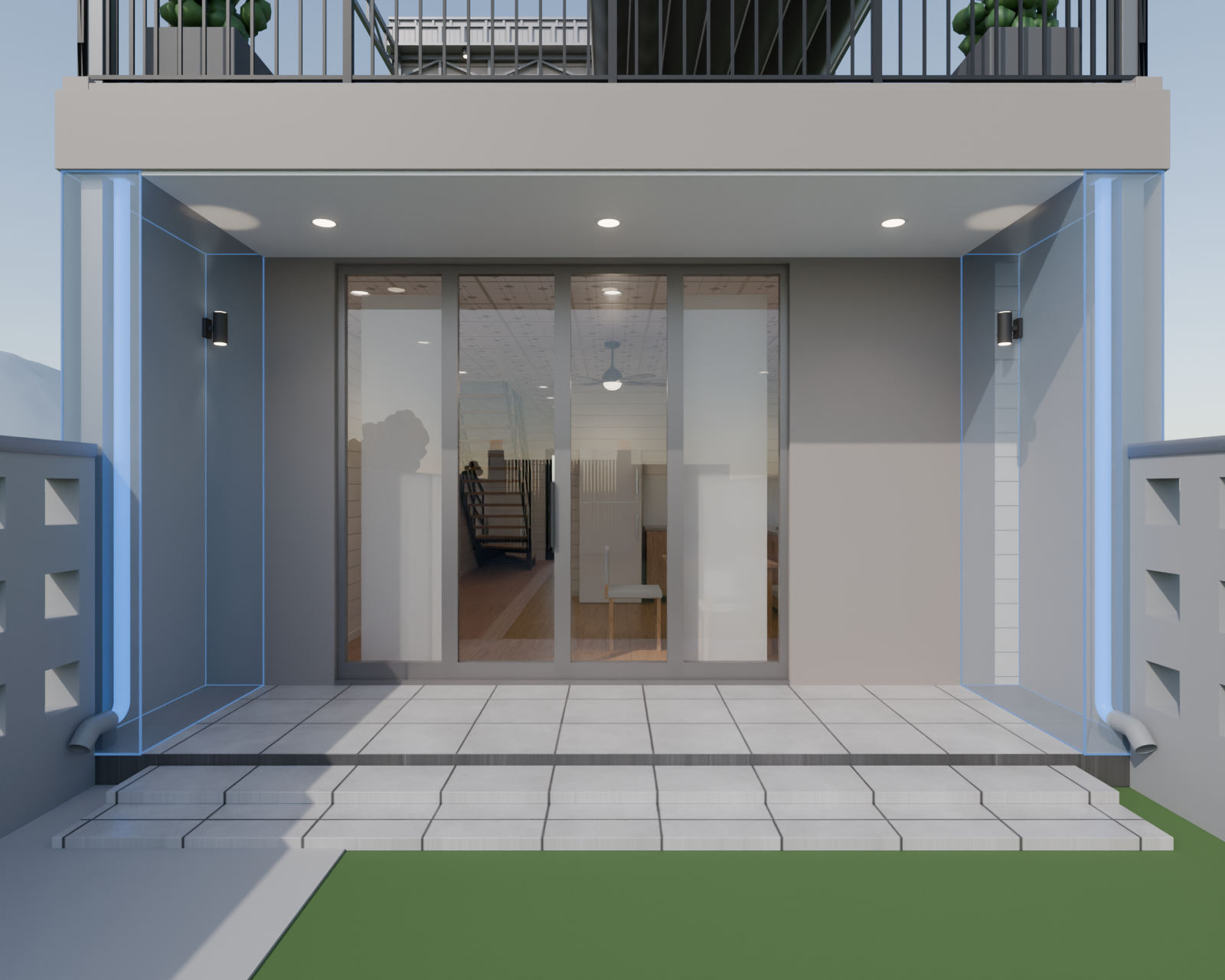

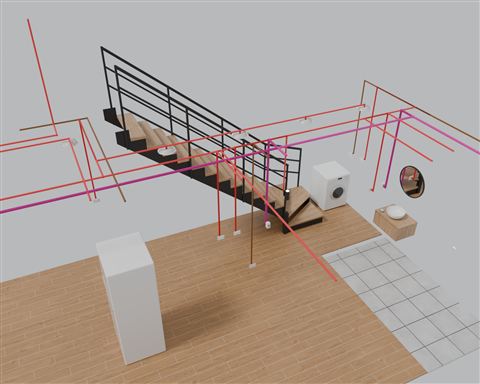

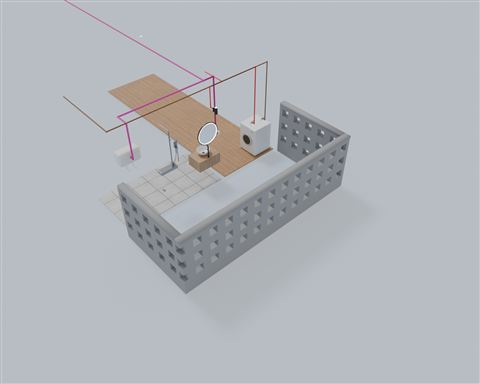

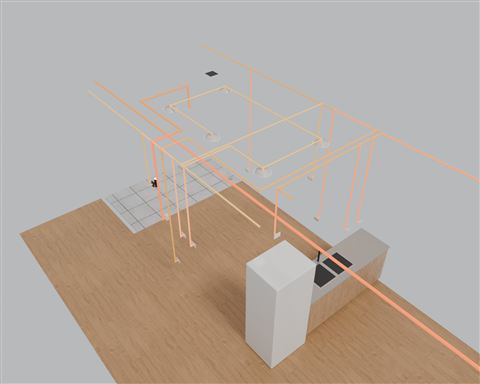

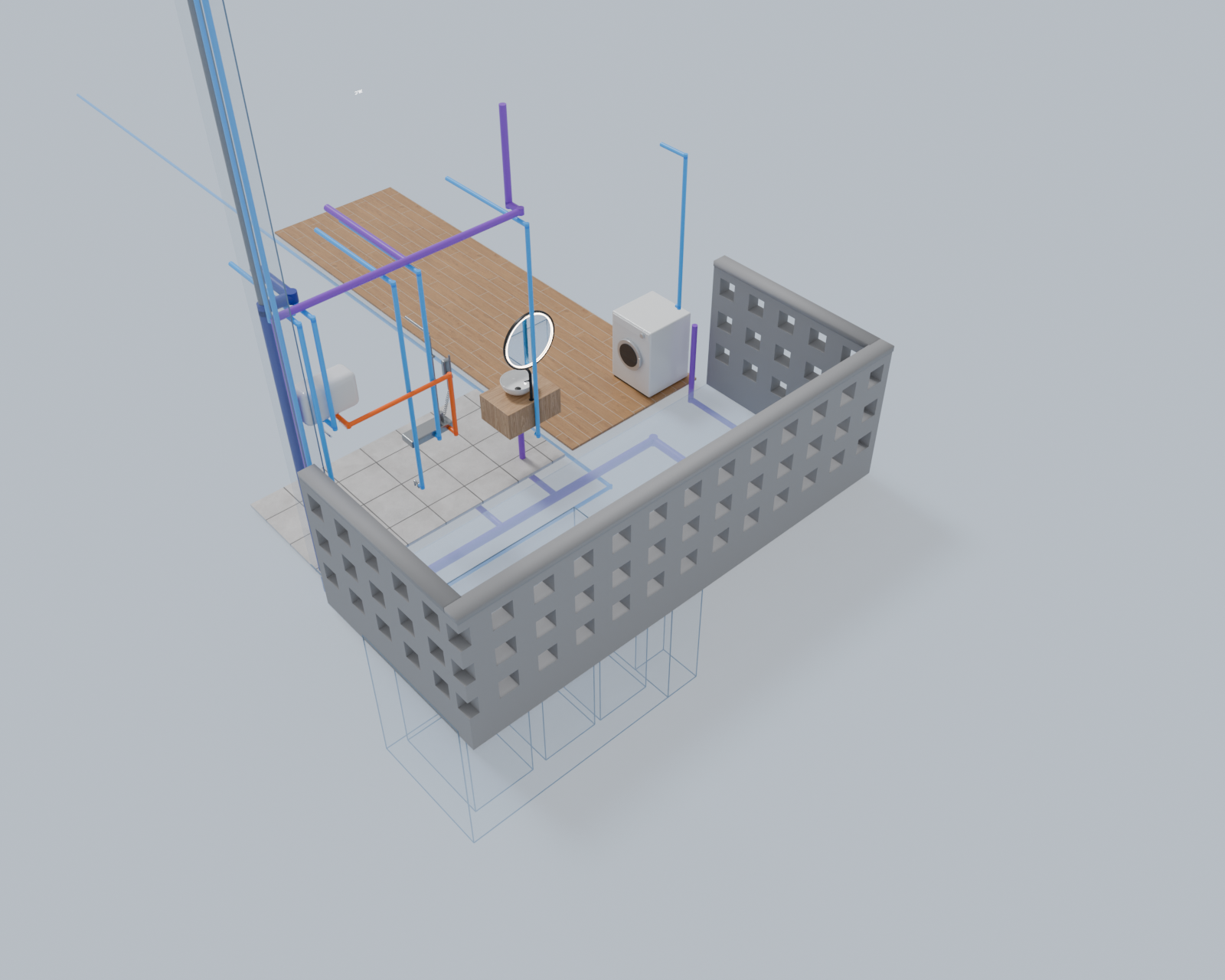

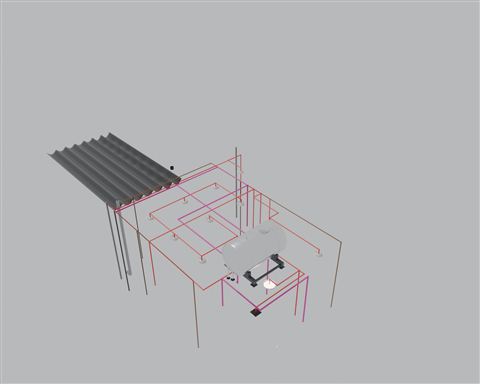

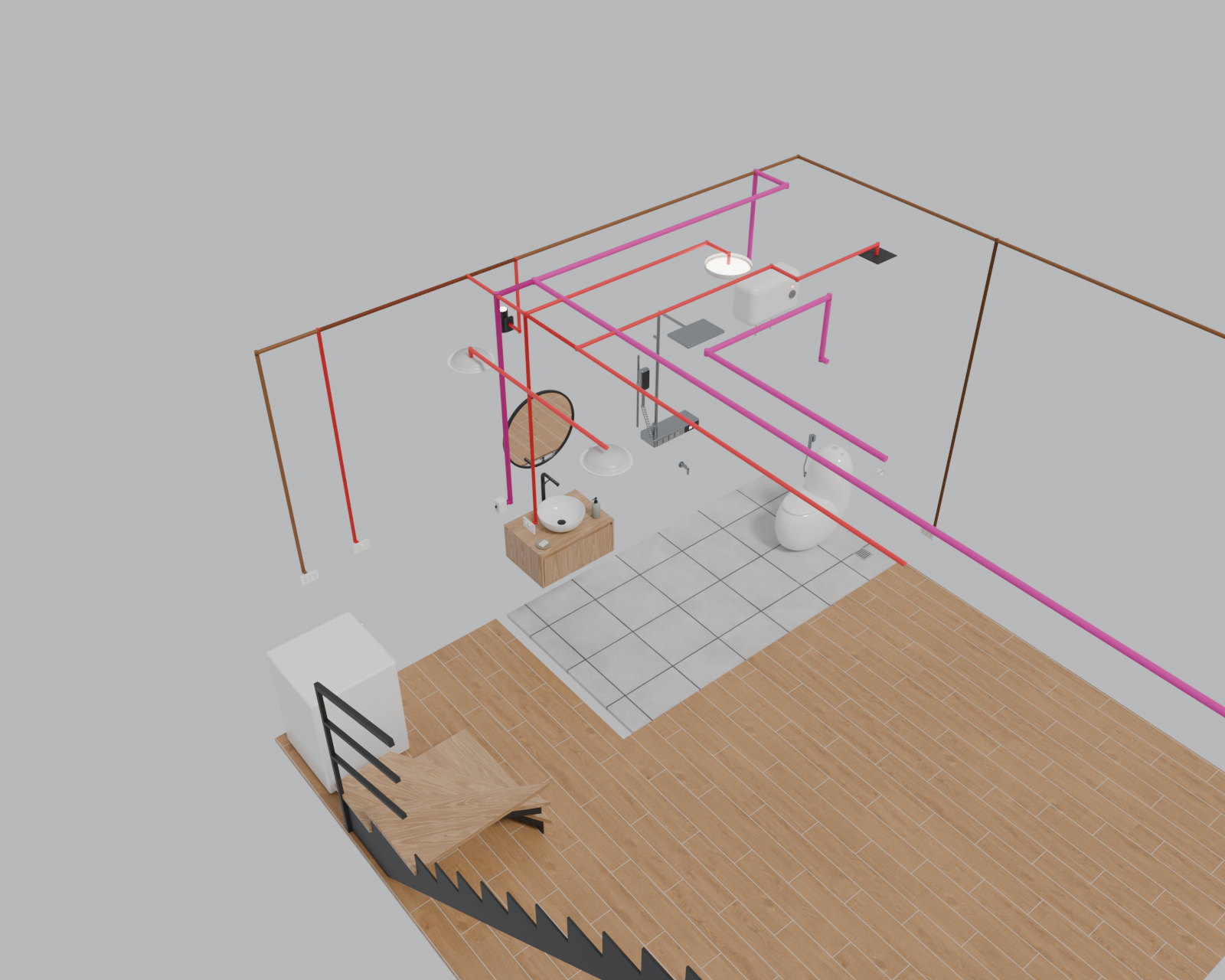

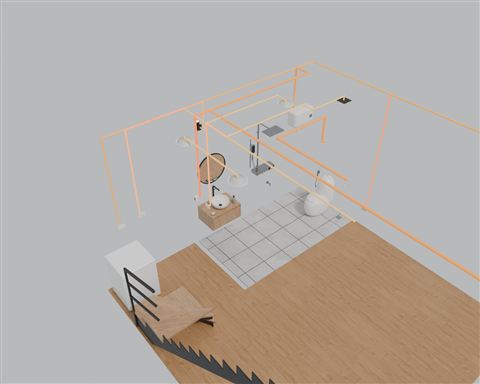

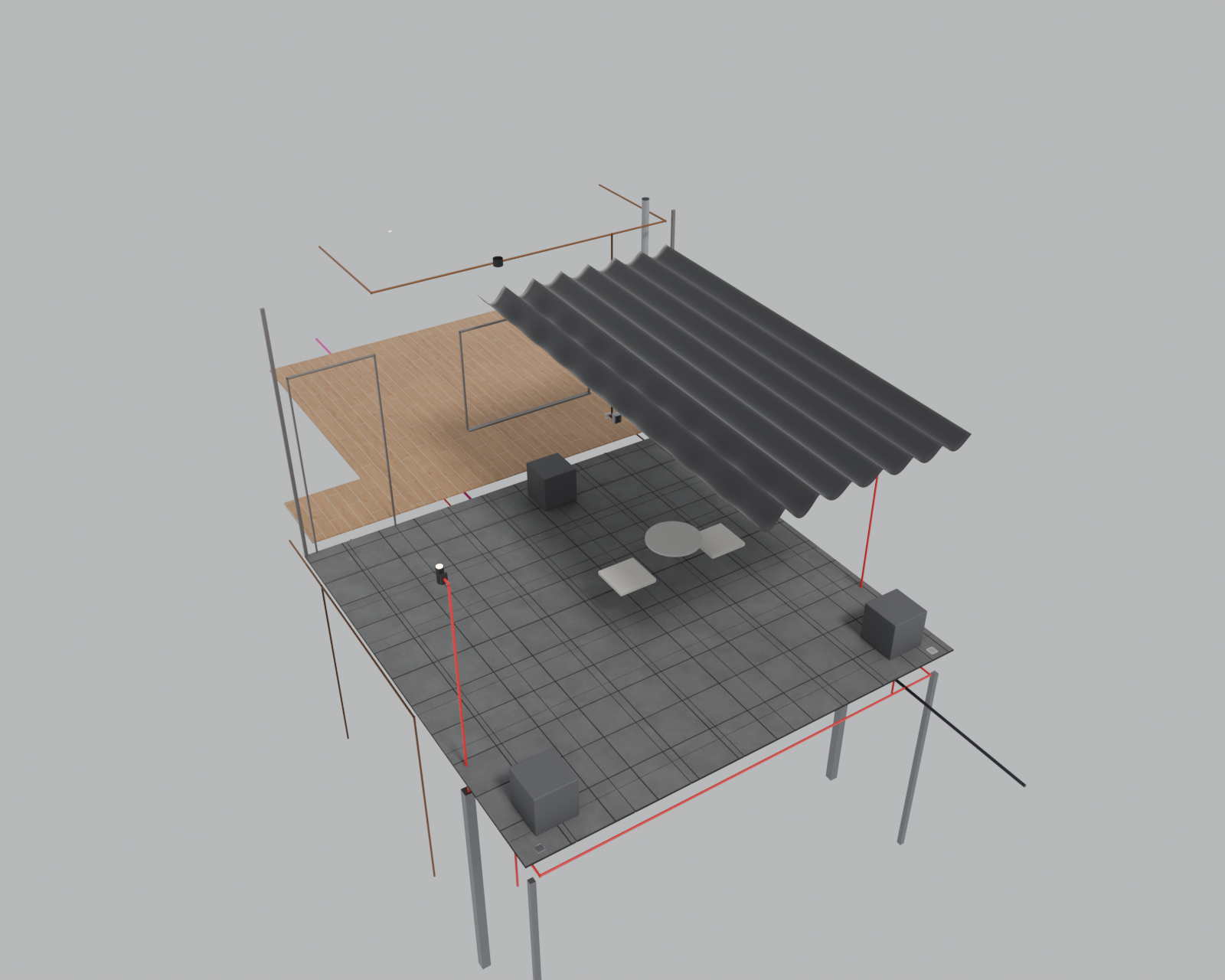

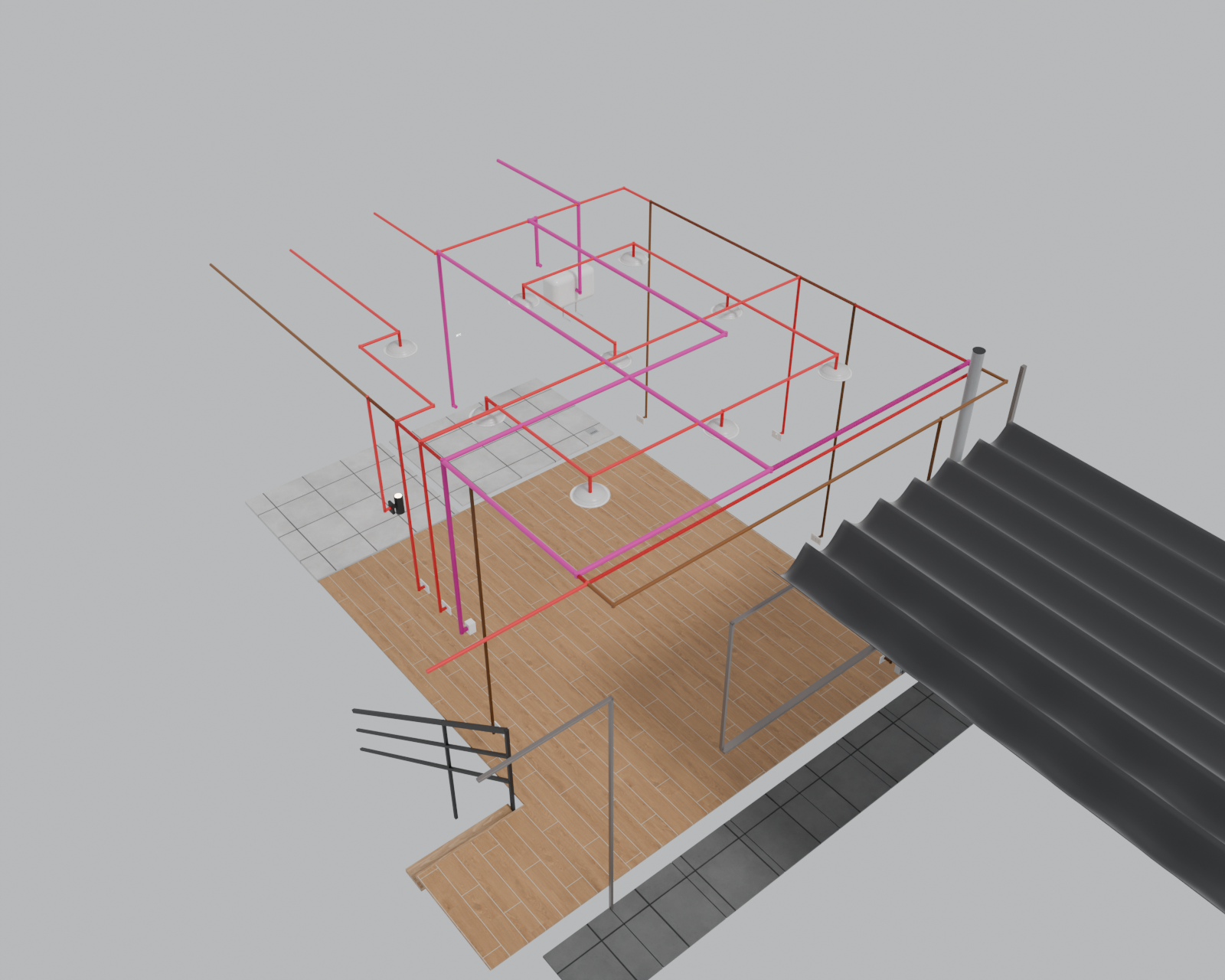

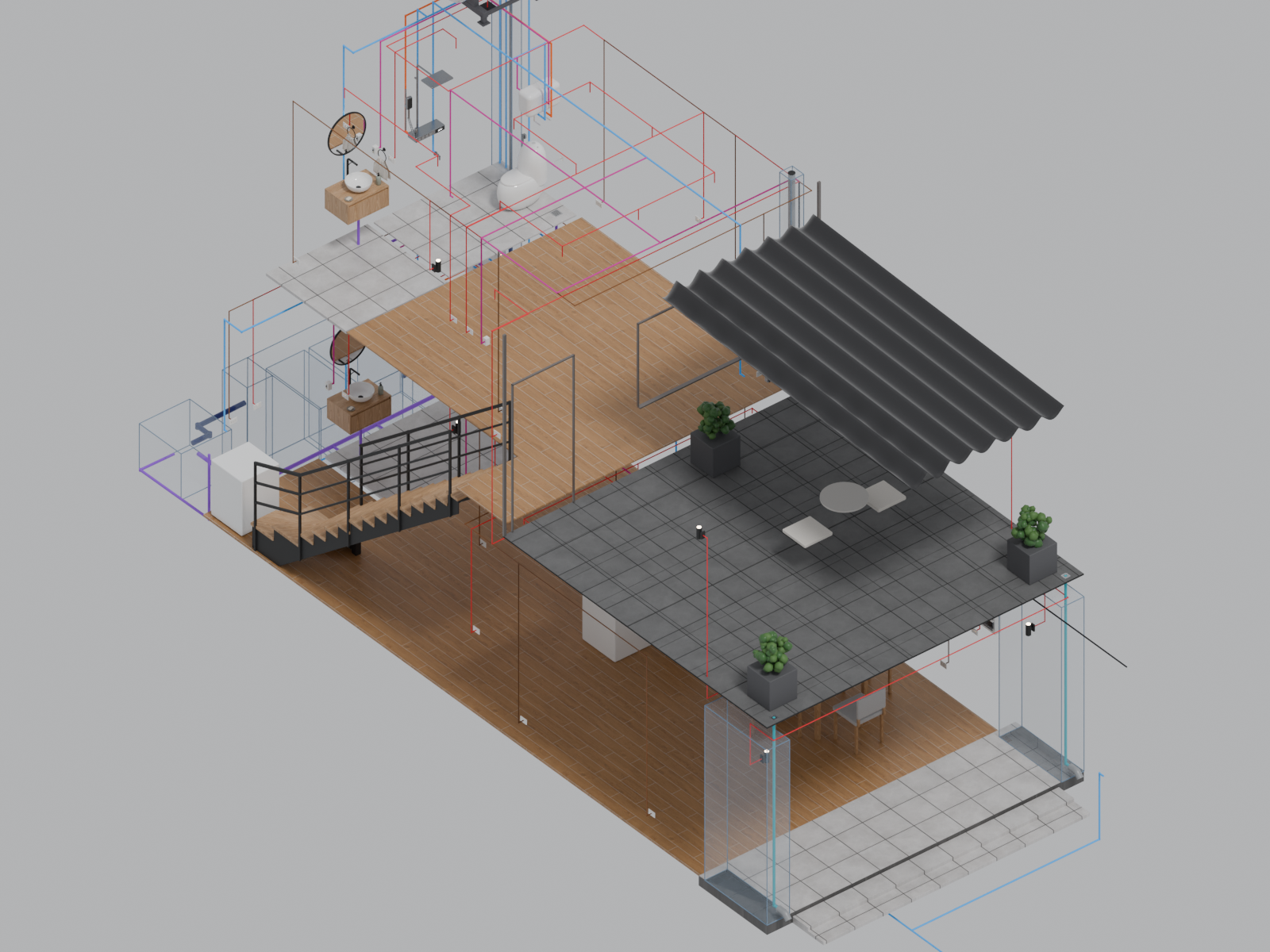

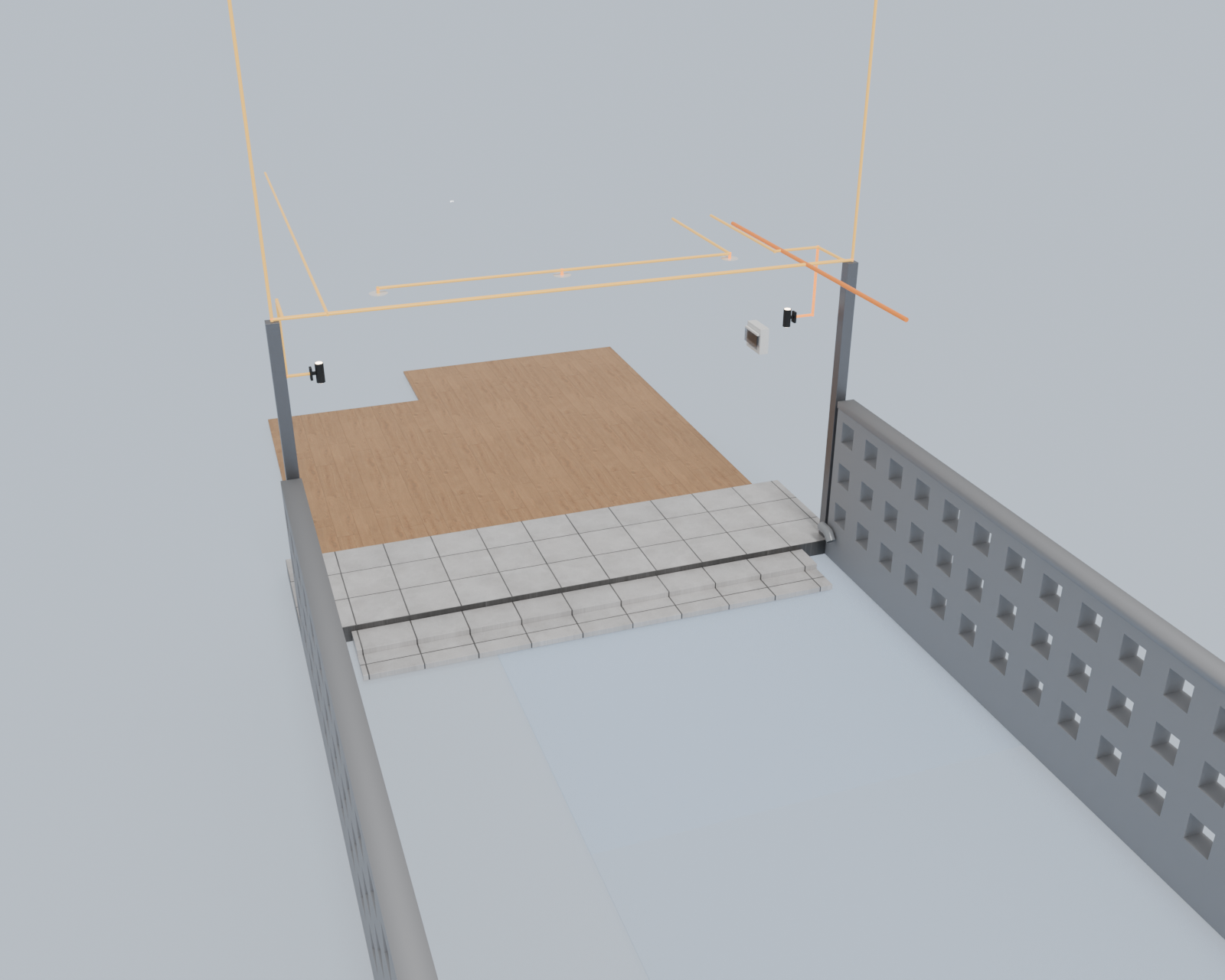

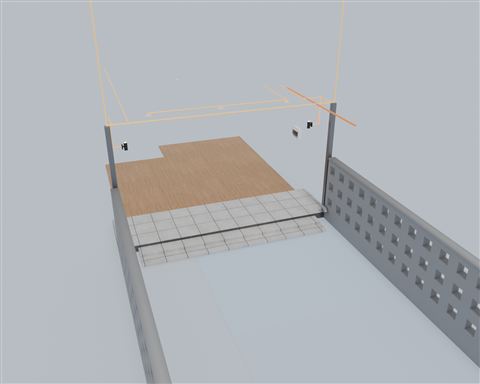

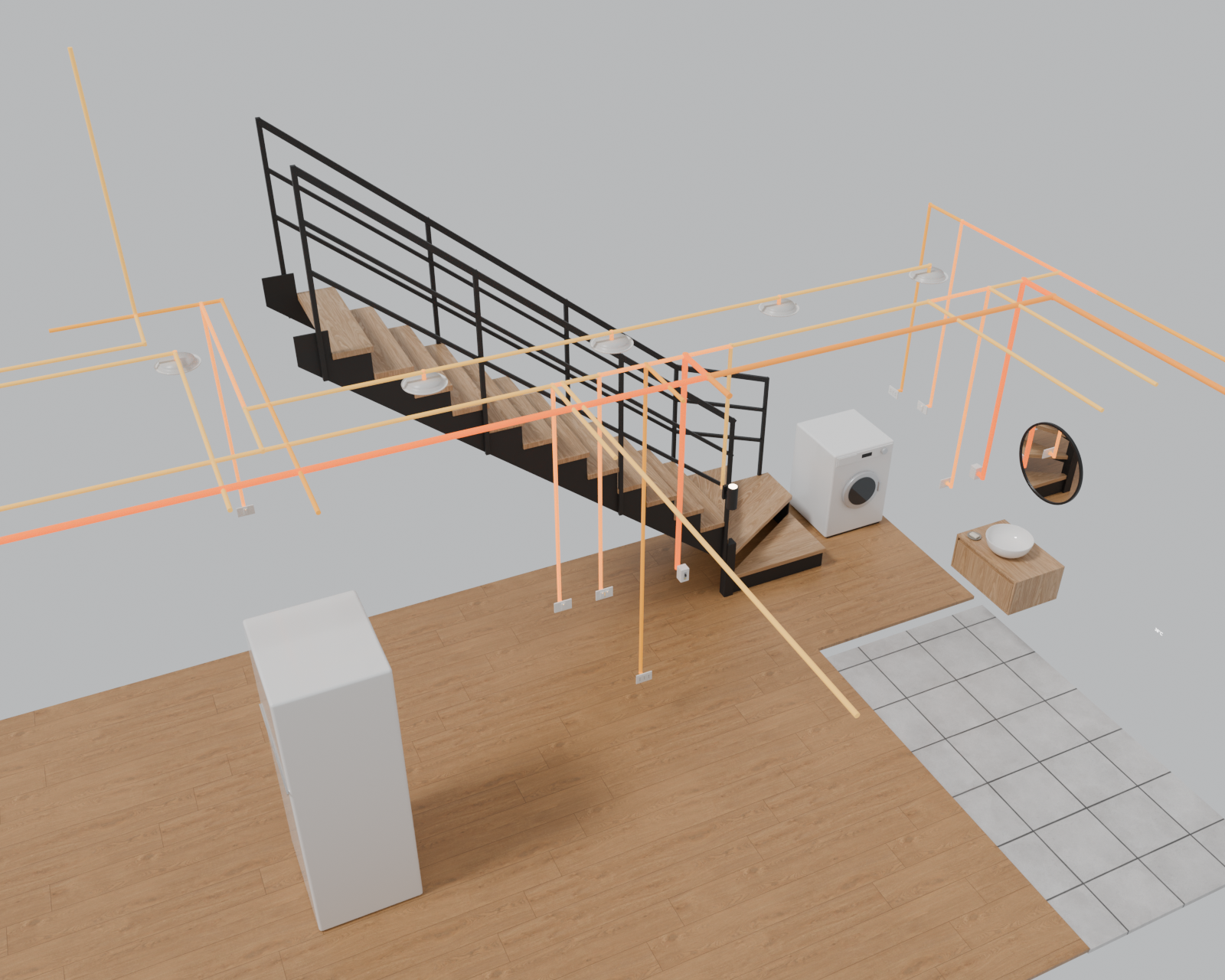

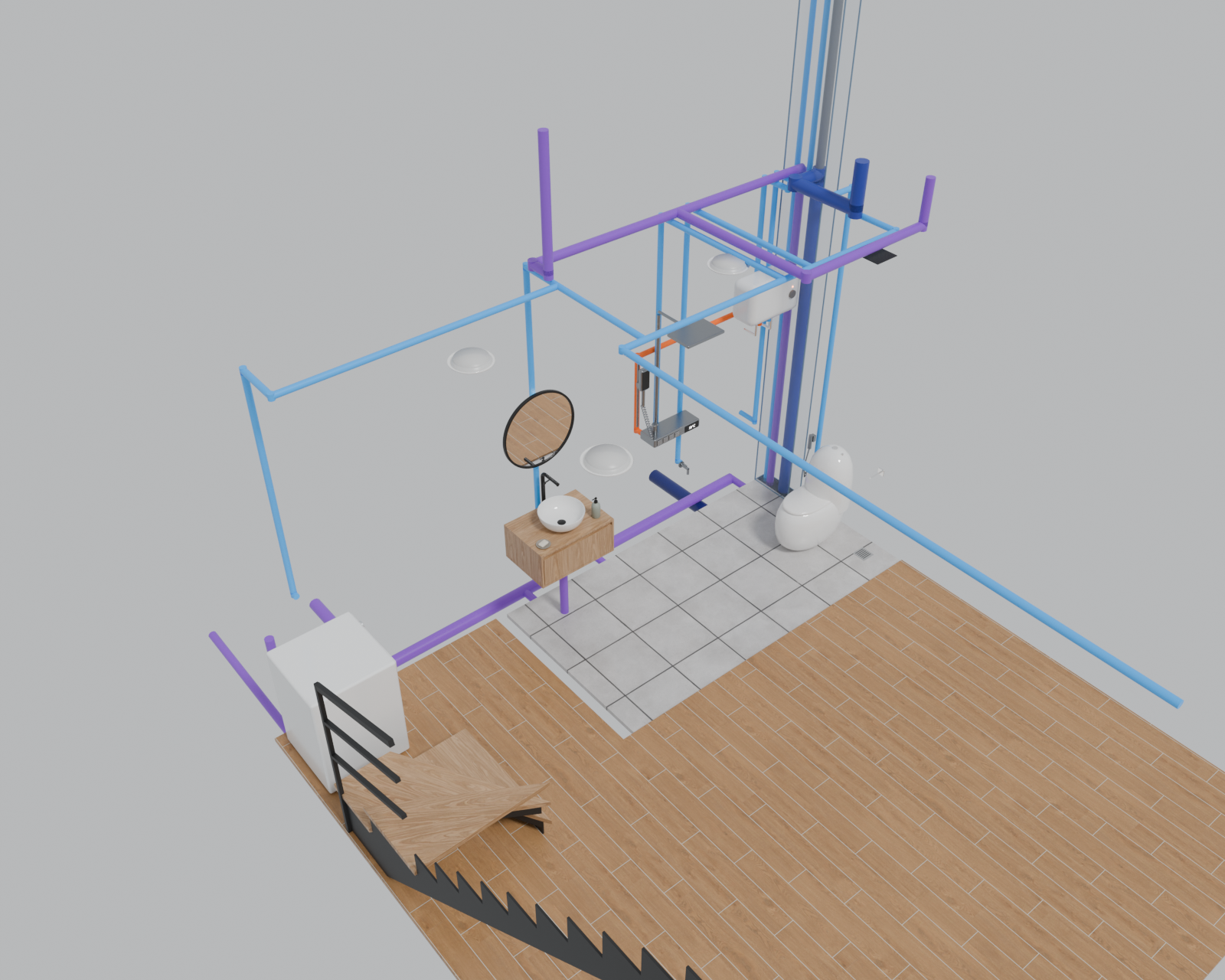

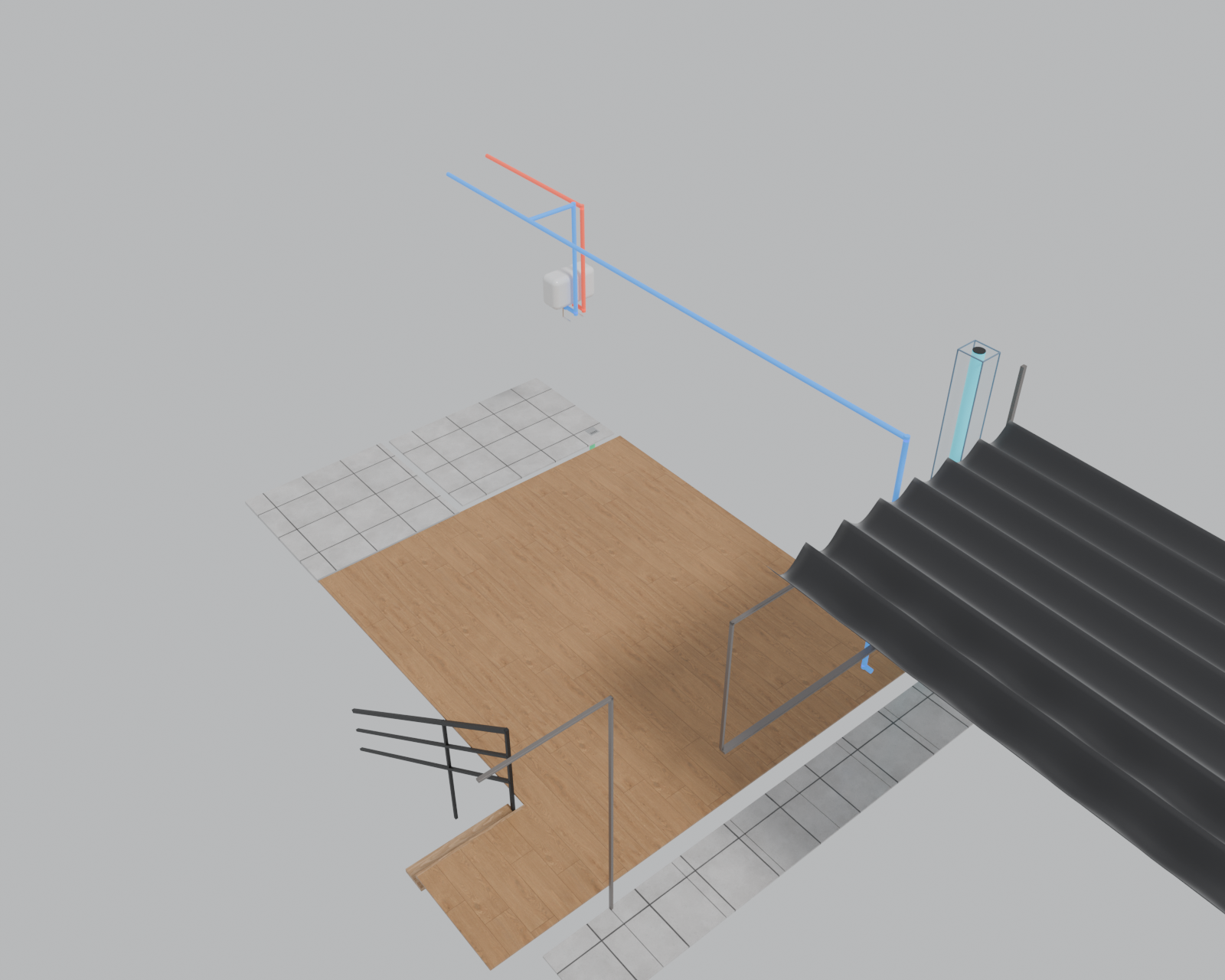

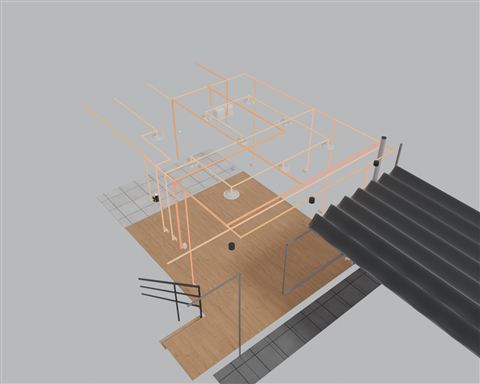

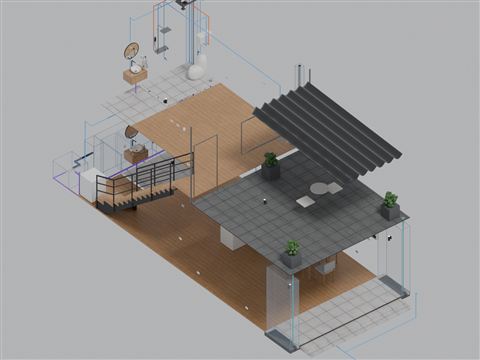

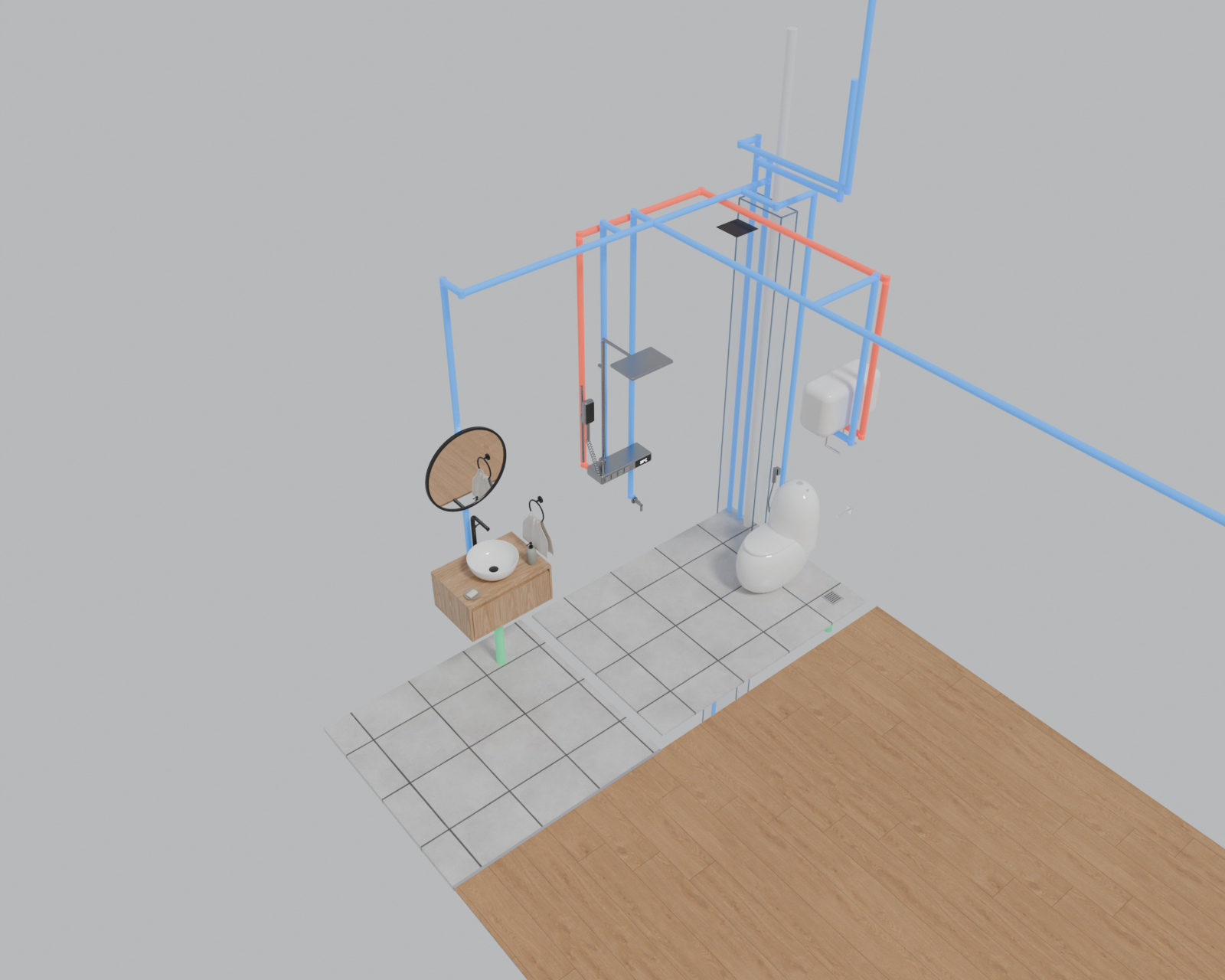

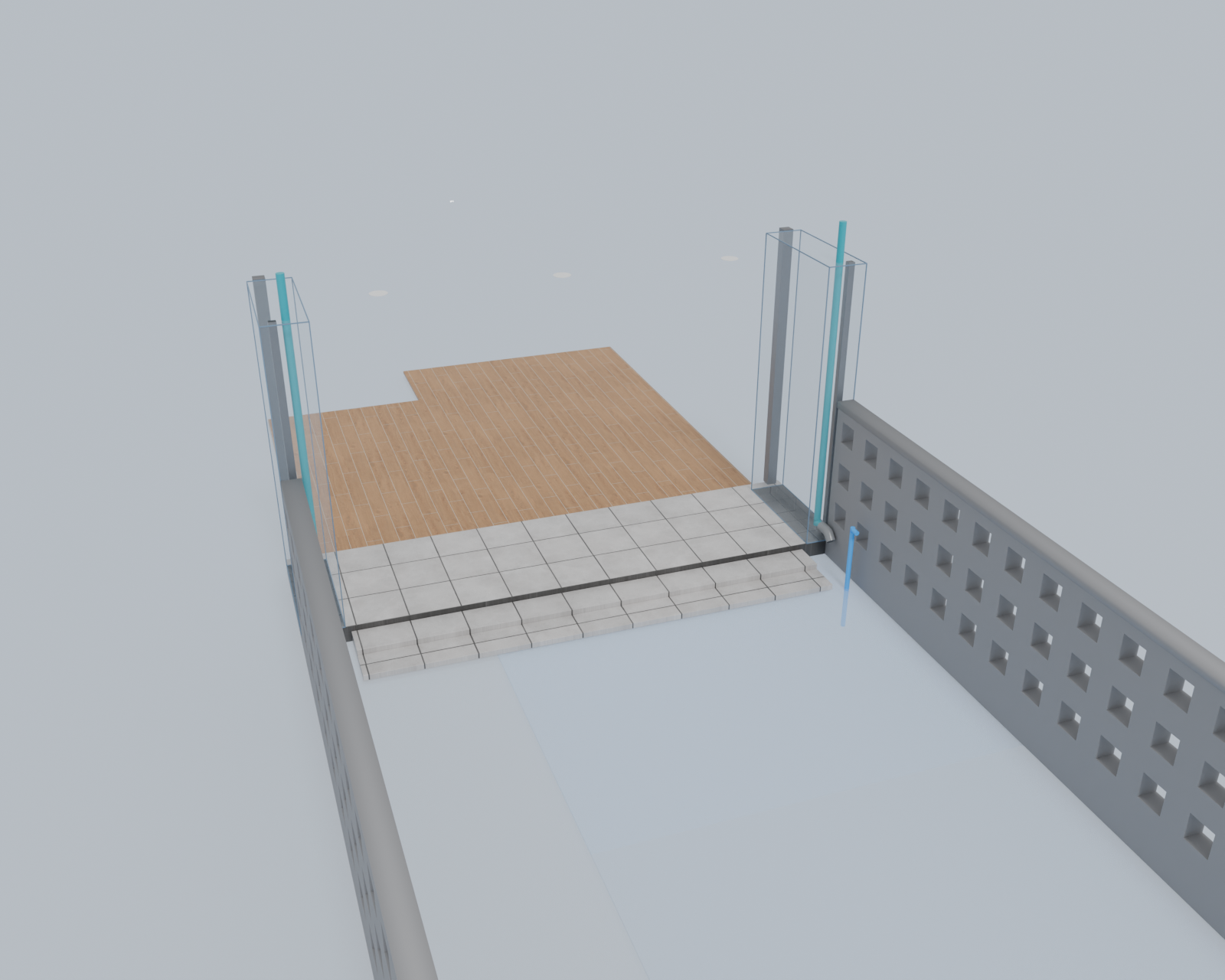

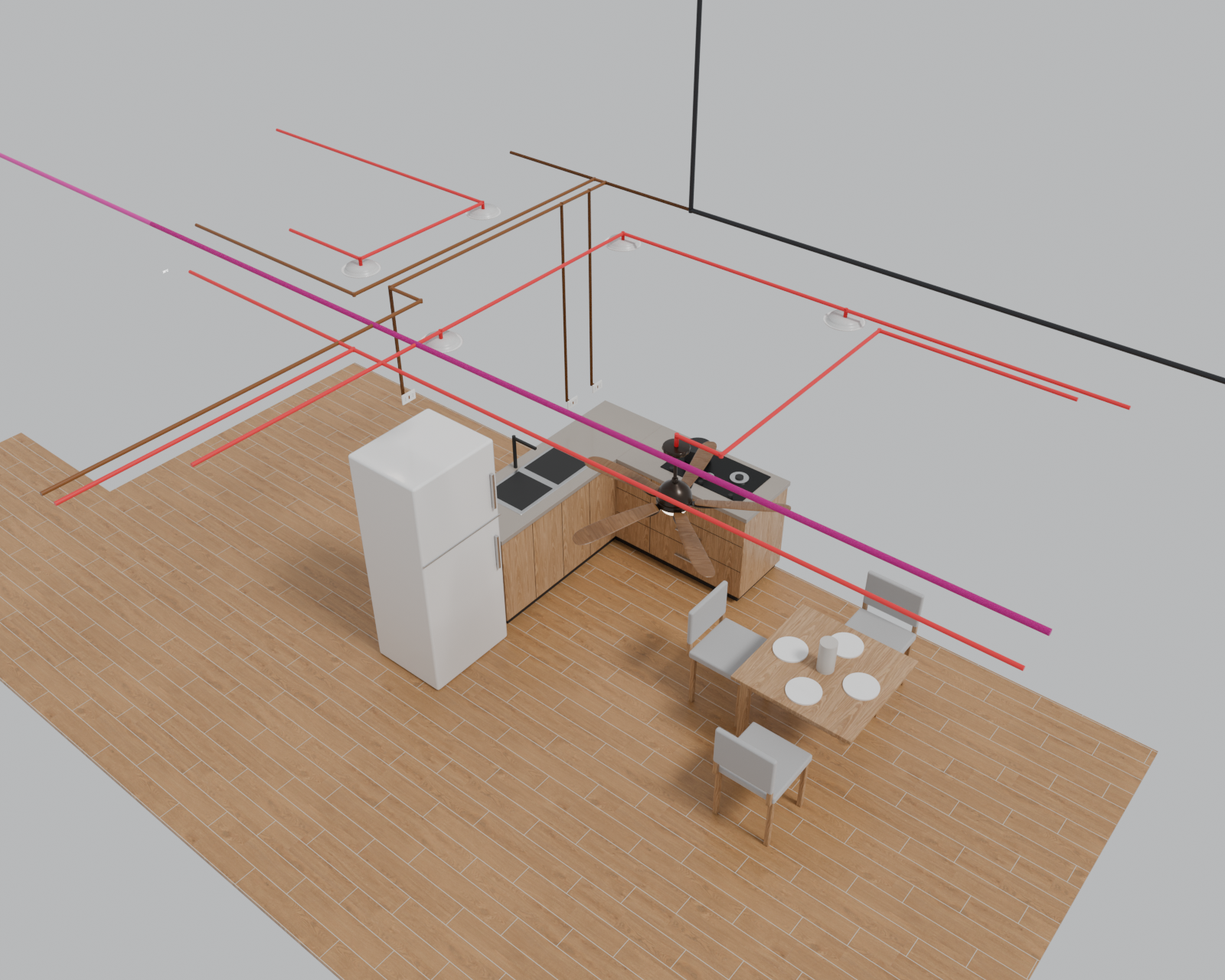

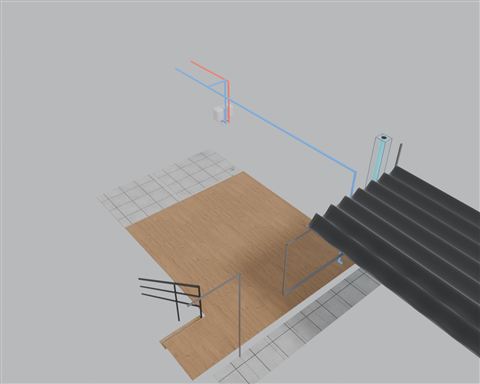

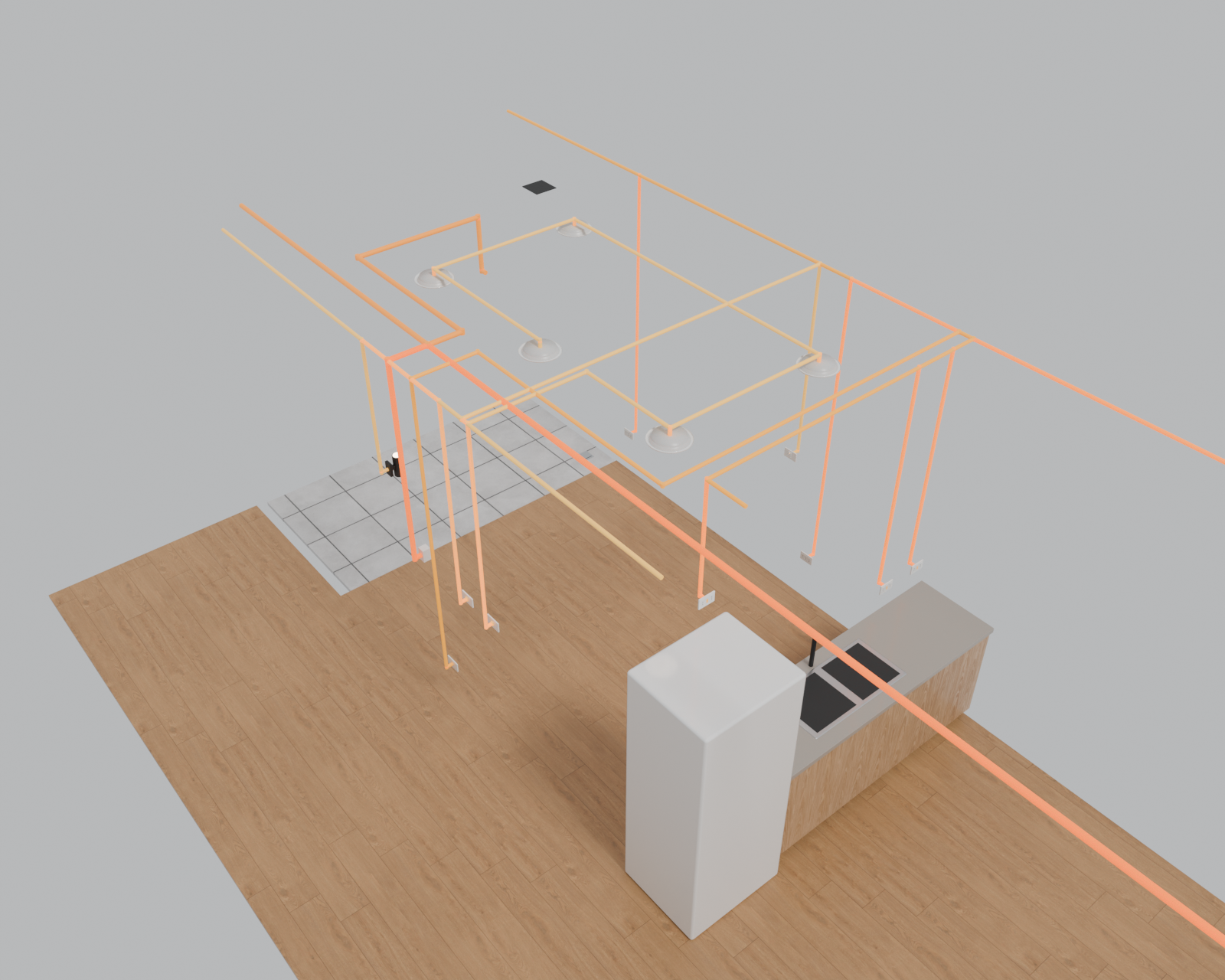

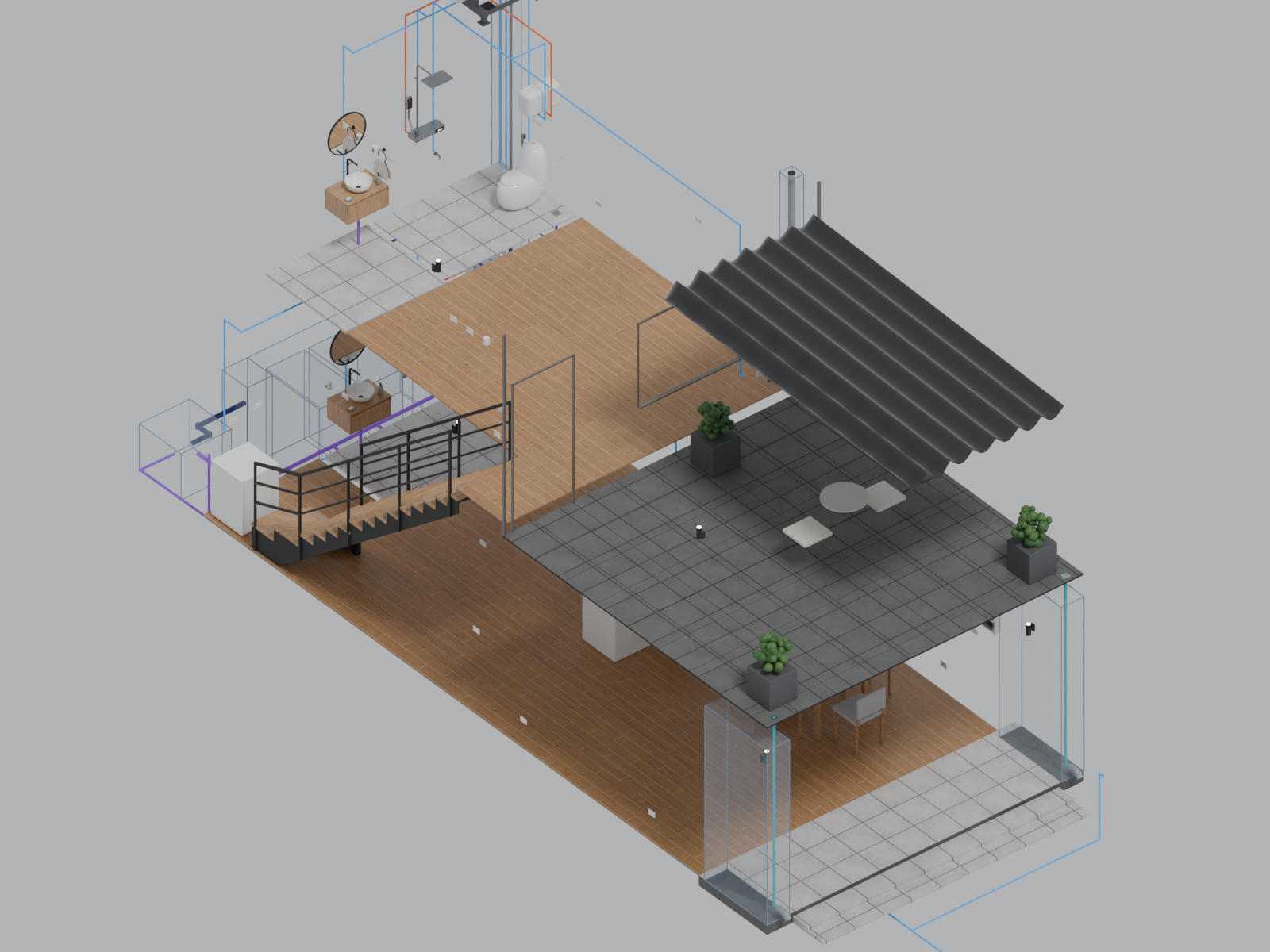

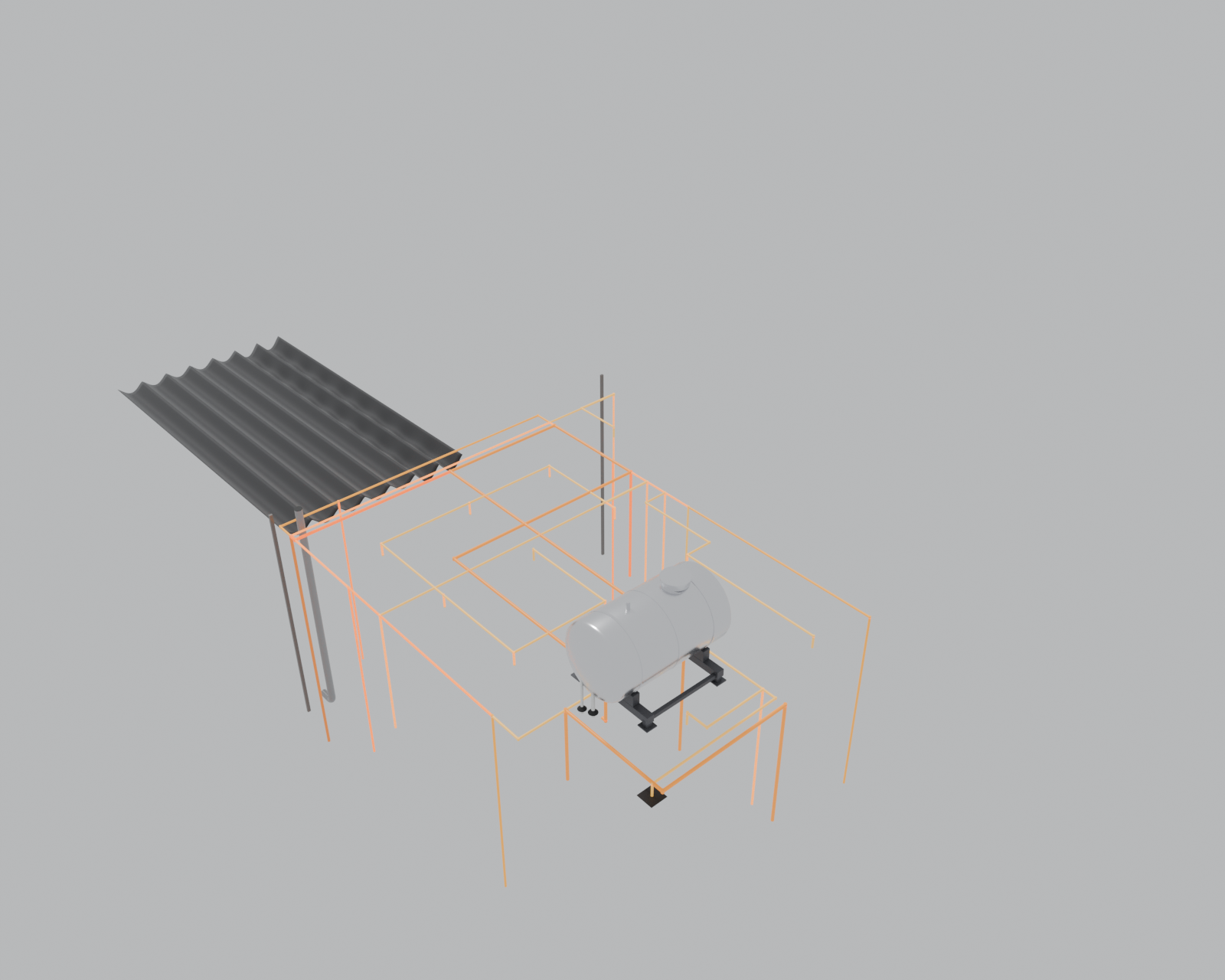

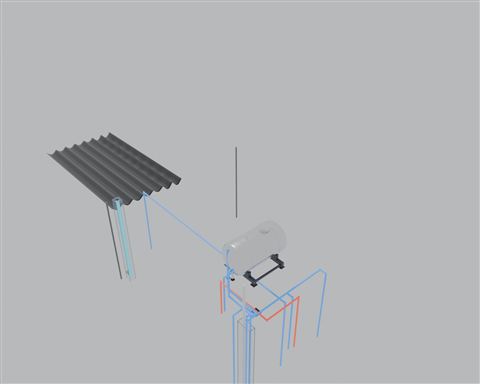

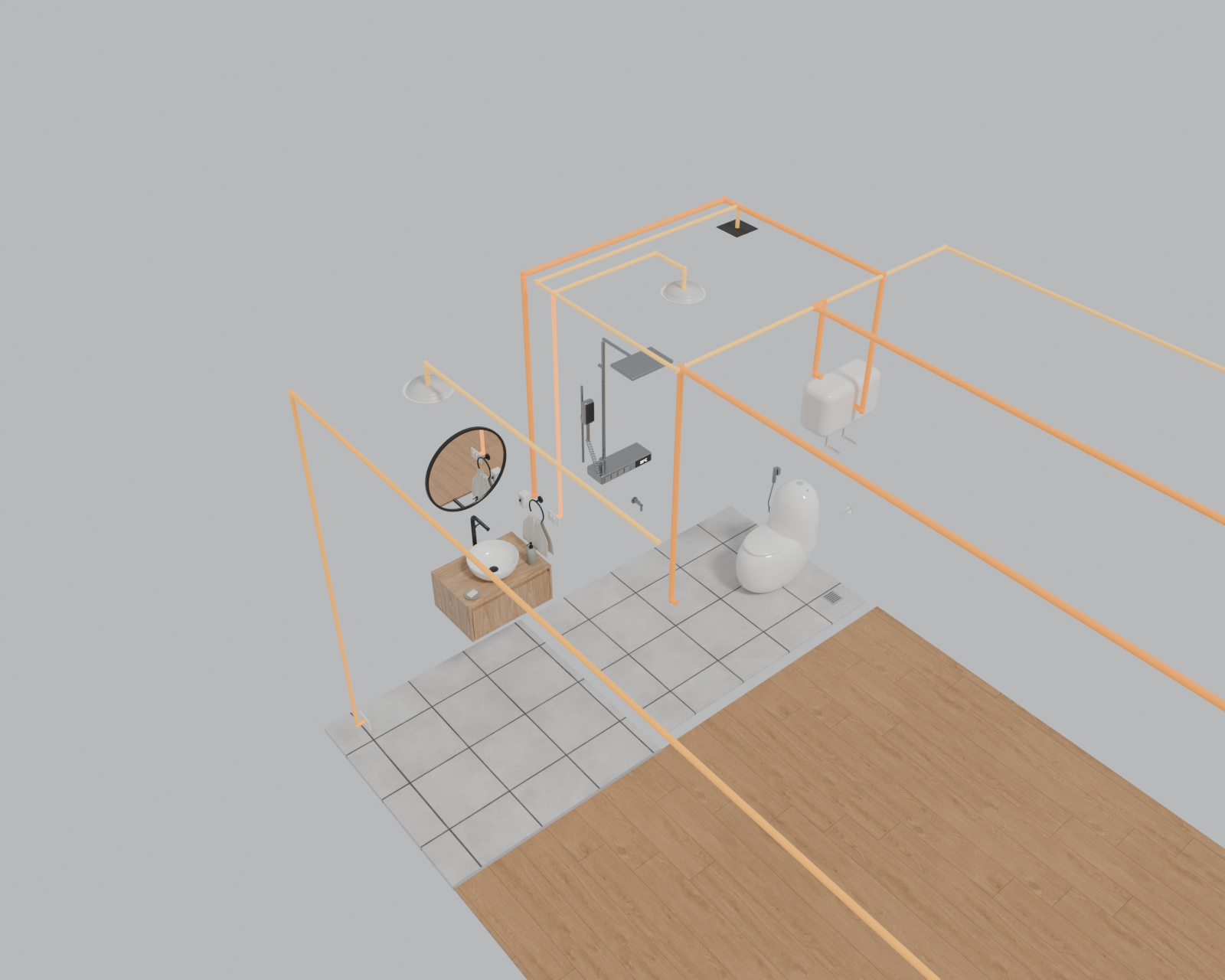

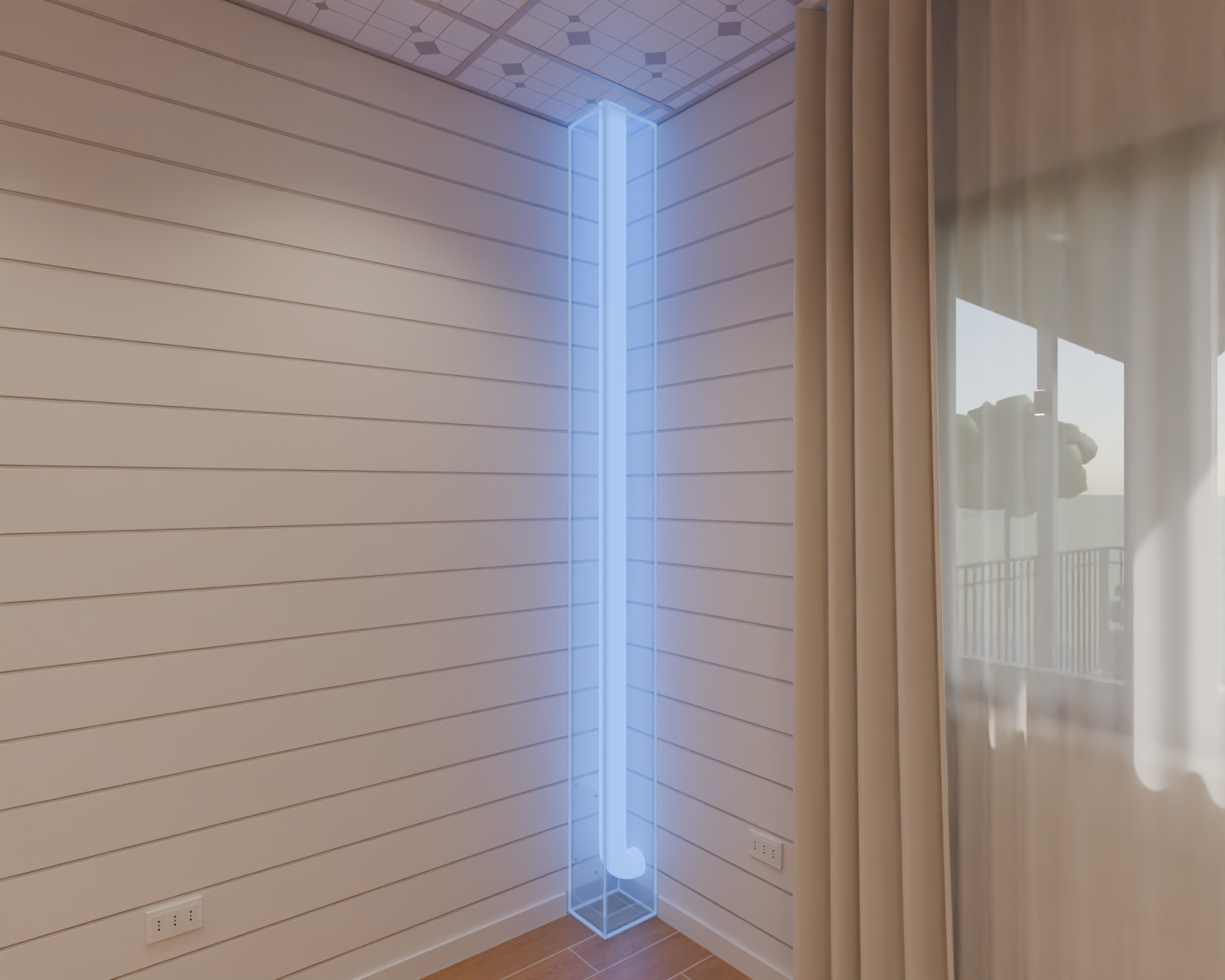

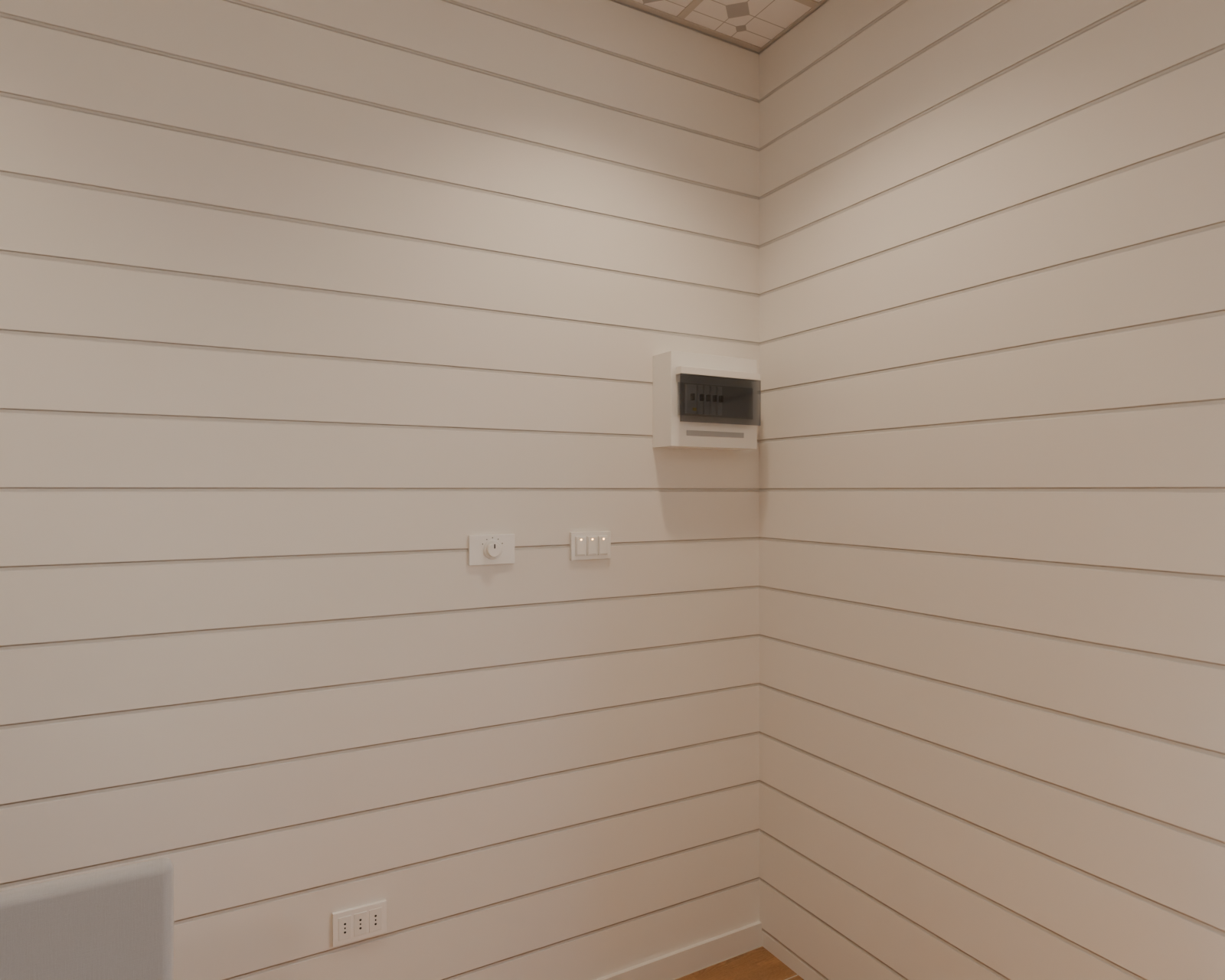

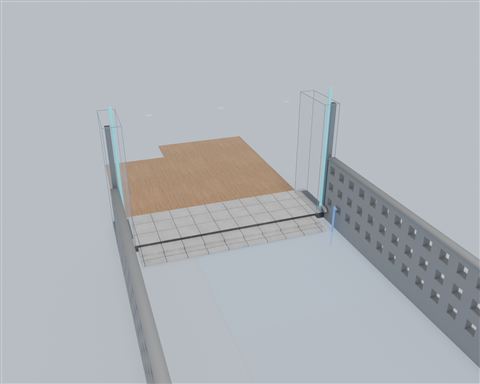

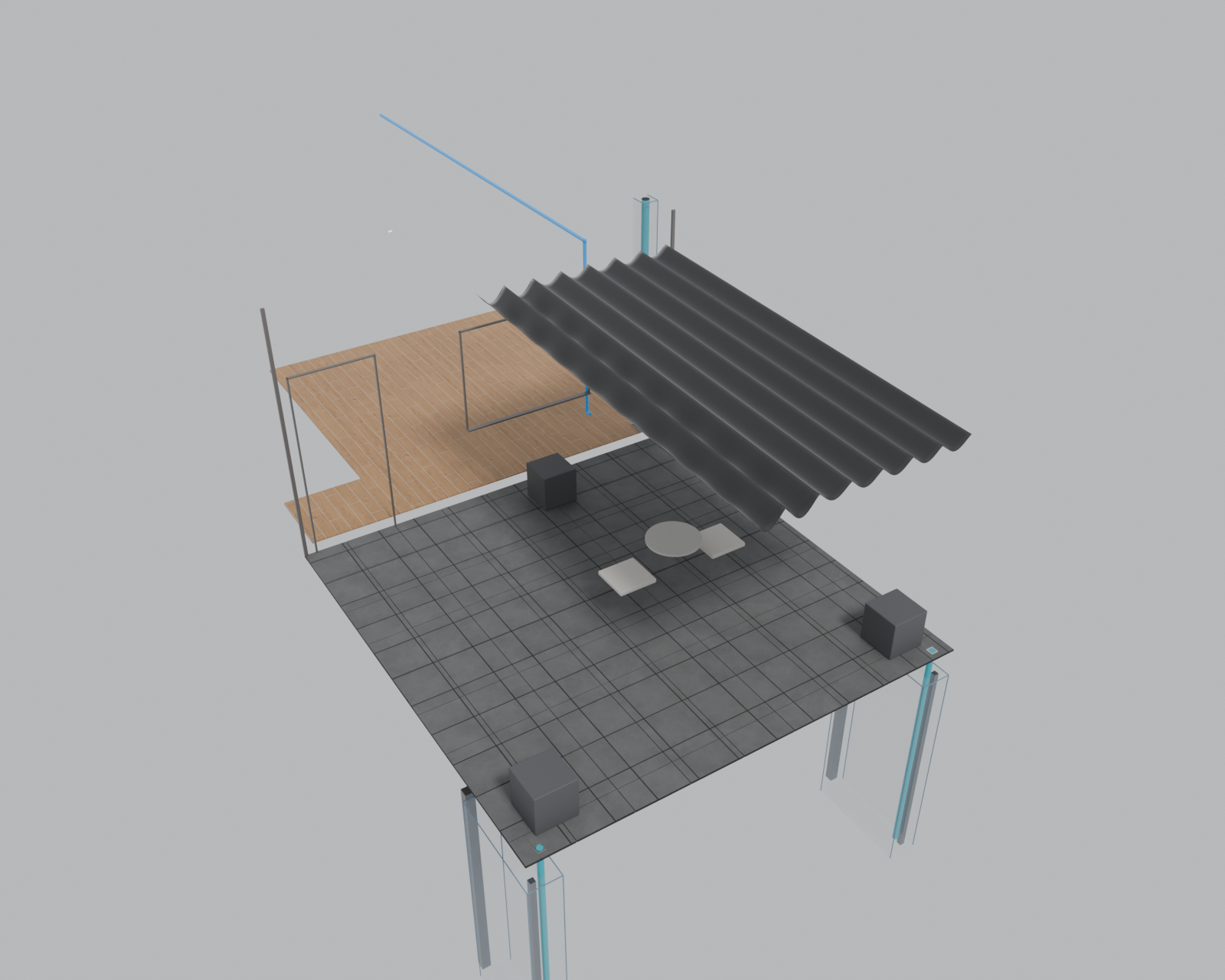

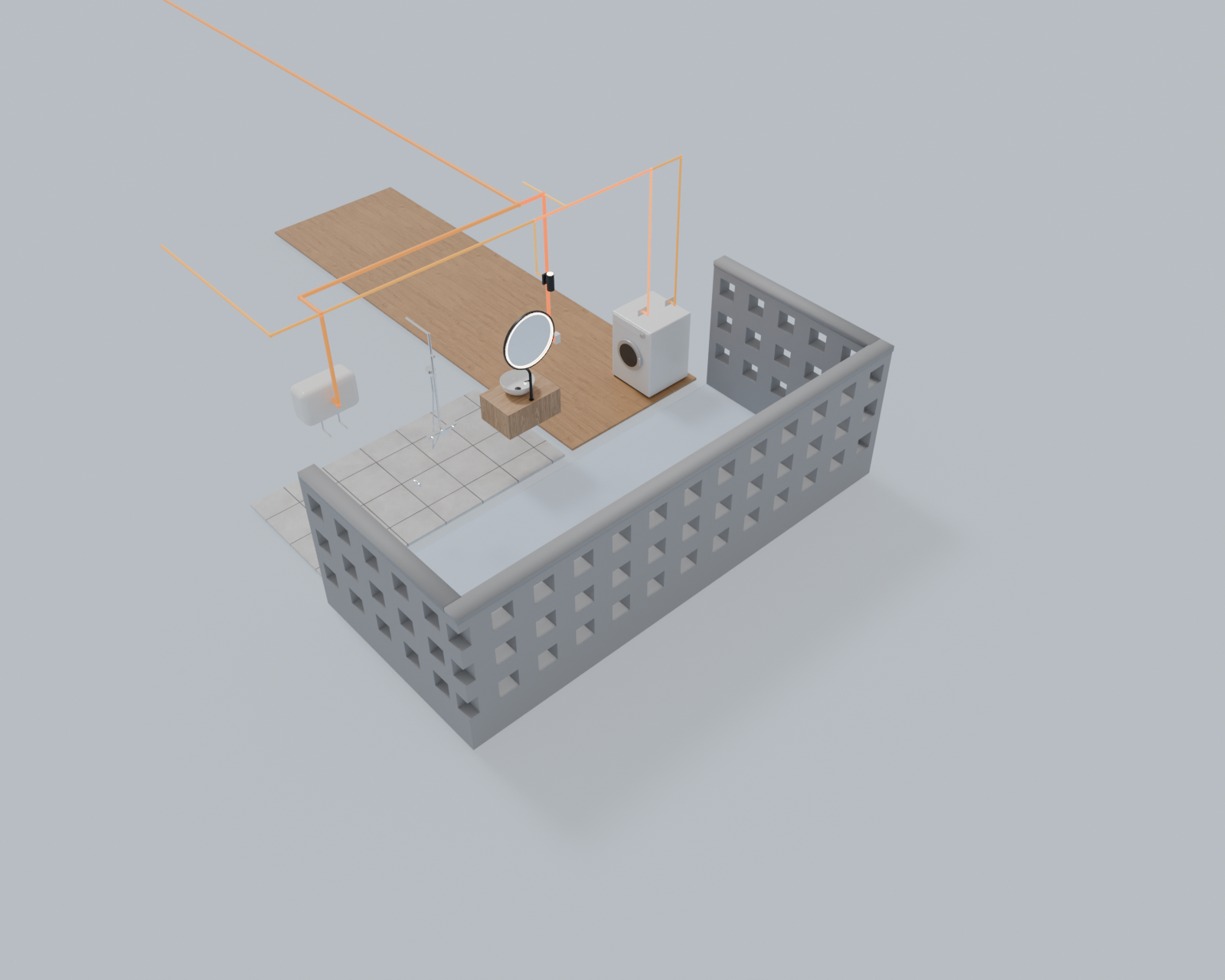

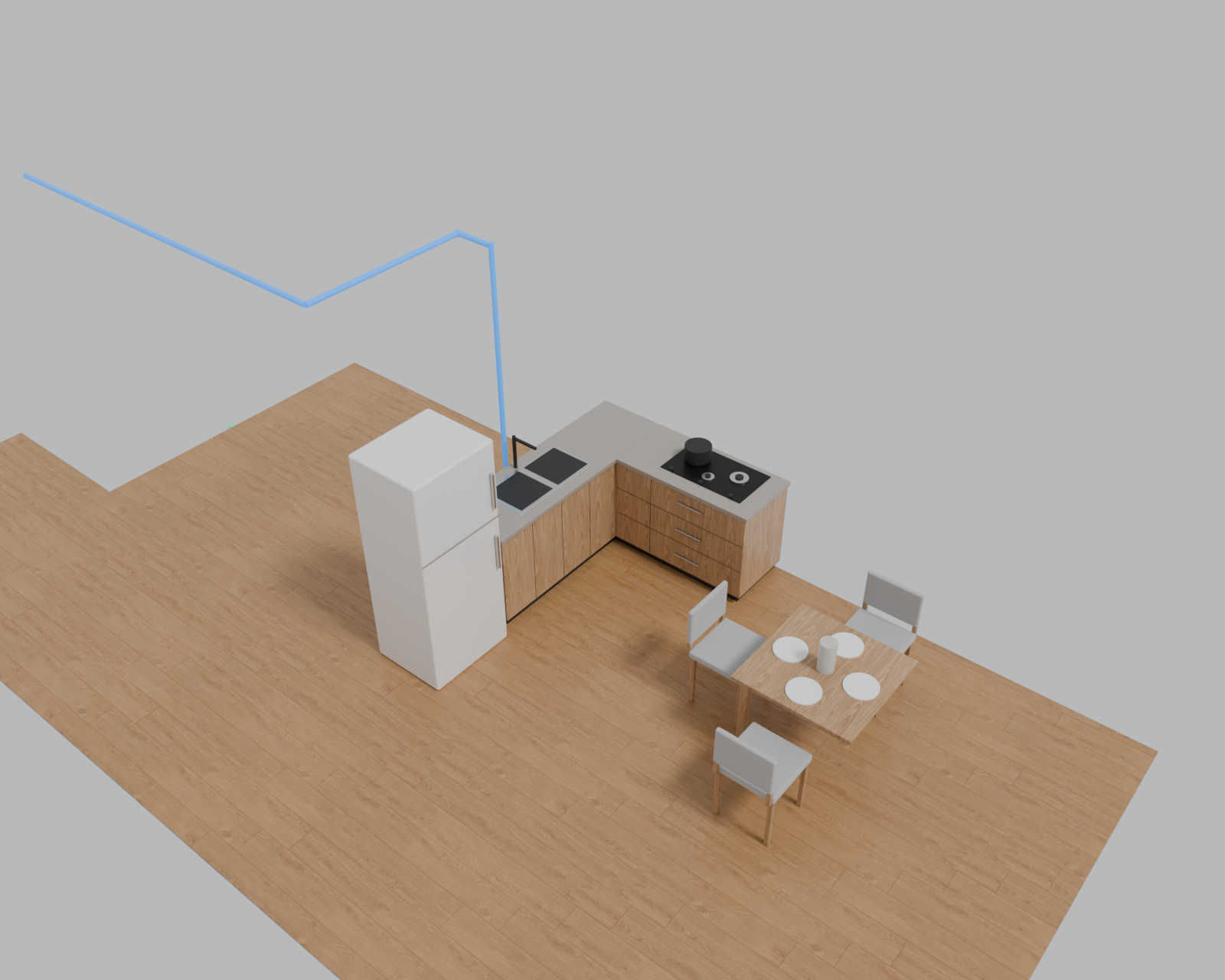

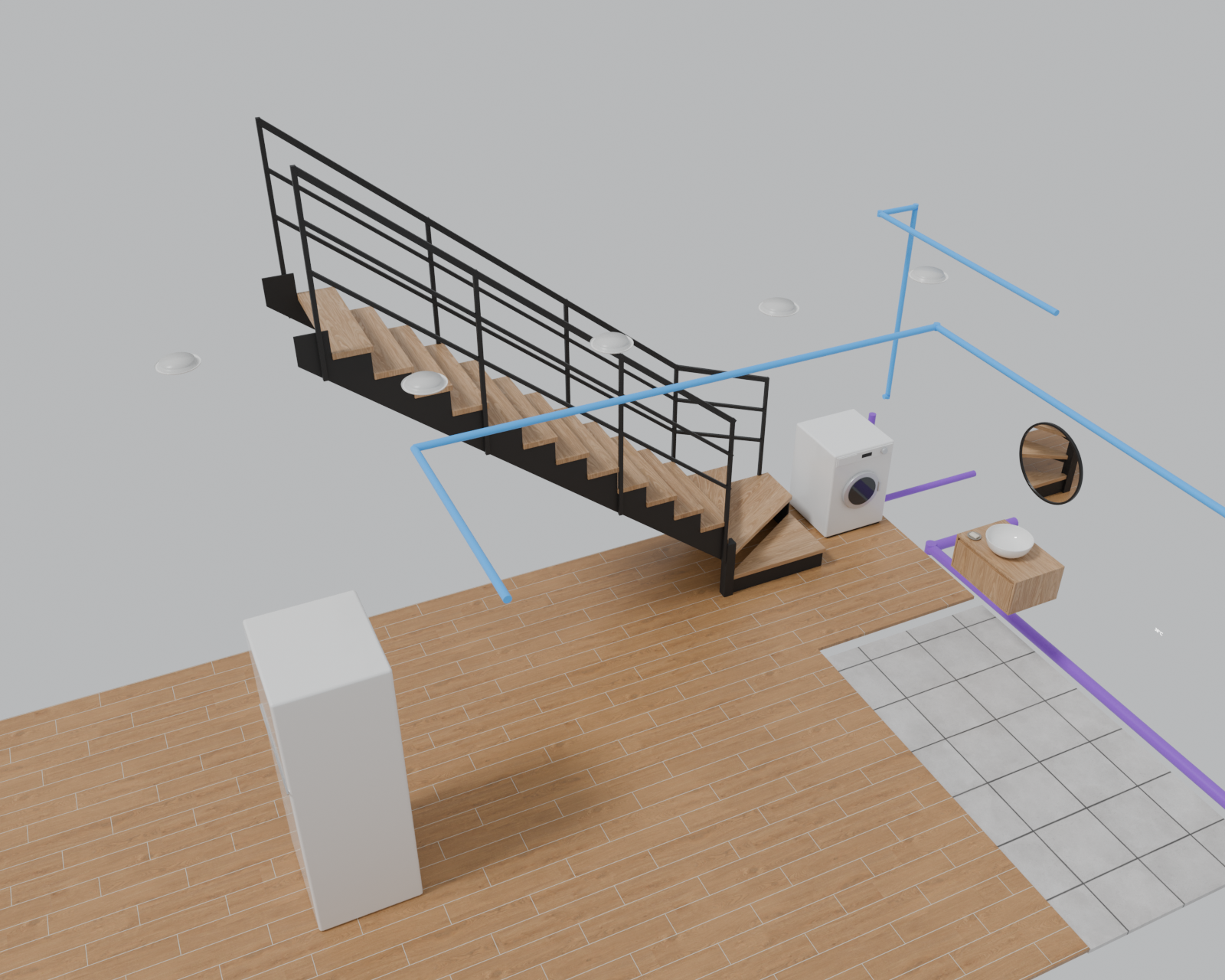

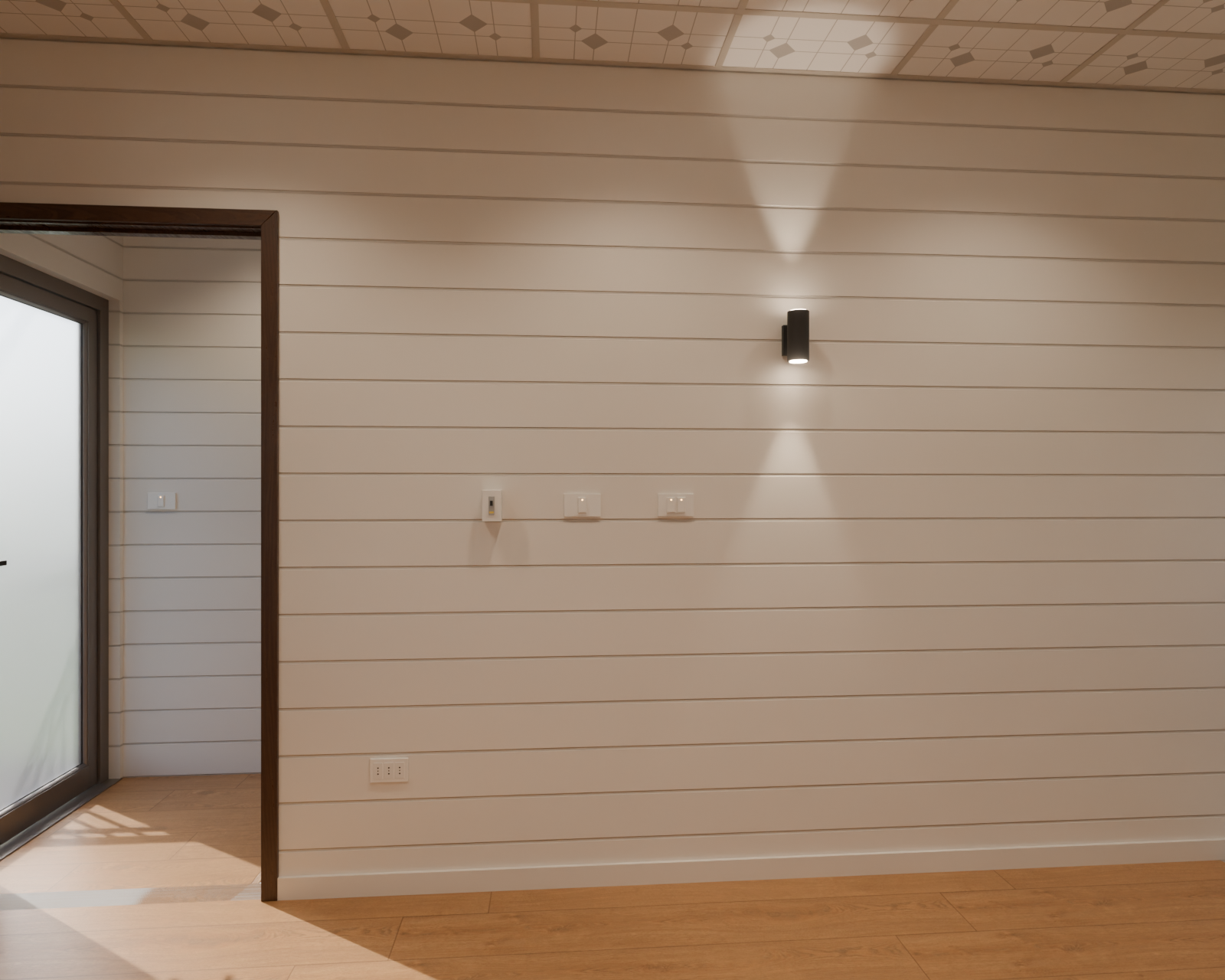

Blue: cold water. Red: hot water. Green: waste. Brown: soil/sewer. Cyan: rainwater. Grey: vent. Orange: electrical, which runs inside the wall cavities behind the panels and in the ceiling voids, never on the wall surface. Transparent boxes show the concealed shafts and the porch pole boxes. Some connecting runs are inferred where the drawings show plans only.
